Century

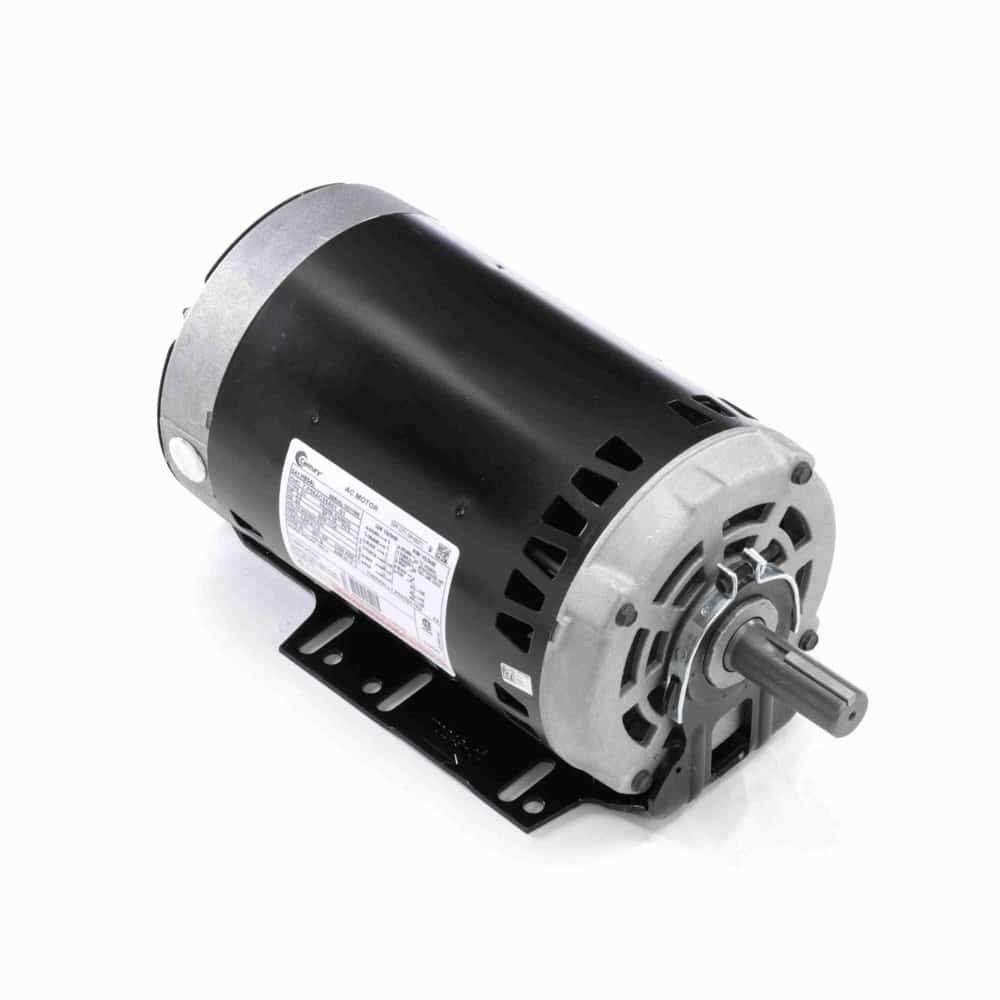

2HP 3PH 56HZ ODP 1725 200-230/460V BM
Mfr # H854L | Wright’s # CEN H854L
2HP Fan & Blower Motor, 3 Phase, 56HZ Frame, 1725 RPM, 1 Speed, Polyphase, Induction Type, Single Or Dual Voltage, 200-230/460V, ODP Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
H854L
Wright's #
CEN H854L
Country of Origin
MEX
Specifications
C Dim
13.81"
Electrical Type
Polyphase, Induction Type, Single Or Dual Voltage
Enclosure
ODP
Frame
56HZ
Frequency
60 Hz
HP
2 HP
HP2
2 HP
Insulation Class
B
kW
1.5kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
4
Number of Speeds
1
Overload Protection
Thermally Protected
Phase
3
Rated Current
3.5/6.6-7.0
Rated Voltage
200-230/460
Rotation
Reversible Counterclockwise
RPM
1725
Service Factor
1.15
Shaft Diameter
0.875"
Speed
1725
Starting Method
Description
Automatic reset thermal protector prevents overheating.
Permanently lubricated, double-sealed bearings extend the lifetime of the motor.
Ambient temperature up to 70°C allows for consistent operation in a range of environments and applications.
Vertical/horizontal mounting for proper placement of the fan within airflow.
2HP Fan & Blower Motor, 3 Phase, 56HZ Frame, 1725 RPM, 1 Speed, Polyphase, Induction Type, Single Or Dual Voltage, 200-230/460V, ODP Enclosure
