Century

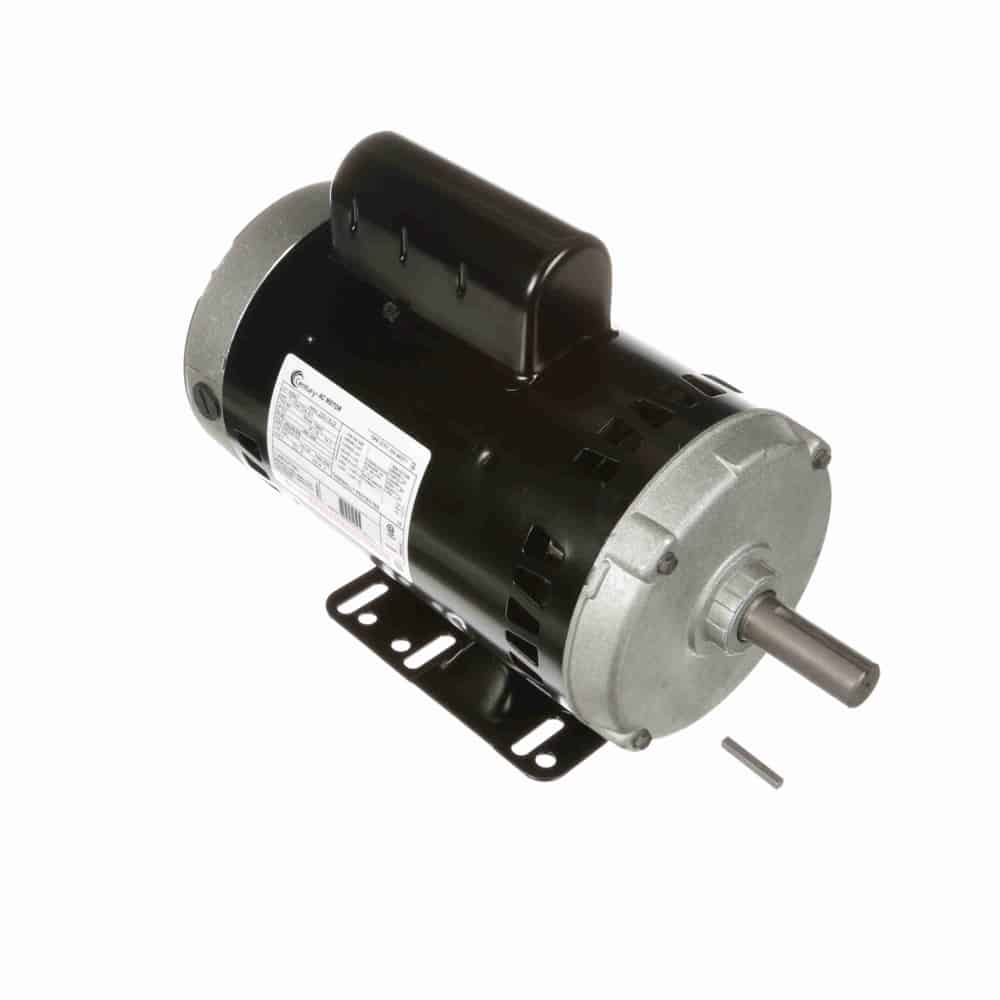

5HP 3PH 56HZ 2P ODP 3600 208-230/460V AOL
Mfr # H847 | Wright’s # CEN H847
5HP 3-Phase General Purpose Motor, 3 Phase, 56HZ Frame, 3450 RPM, 1 Speed, Polyphase, Induction Type, Single Or Dual Voltage, 208-230/460V, ODP Enclosure
$733.83
Product Information
Brand Century
Mfr # H847
Wright's # CEN H847
Country of Origin MEX
Specifications
C Dim 15.06"
Electrical Type Polyphase, Induction Type, Single Or Dual Voltage
Enclosure ODP
Full Load Efficiency 86.5
Frame 56HZ
Frequency 60 Hz
HP 5 HP
HP2 5 HP
Insulation Class B
kW 3.7kW
Material Rolled Steel
Max Ambient 40°C
Number of Poles 2
Number of Speeds 1
Overload Protection Thermally Protected
Phase 3
Rated Current 6.6/13.4-13.2
Rated Voltage 208-230/460
Rotation Reversible Counterclockwise
RPM 3450
Service Factor 1.15
Shaft Diameter 0.875"
Speed 3600
Starting Method
