Century

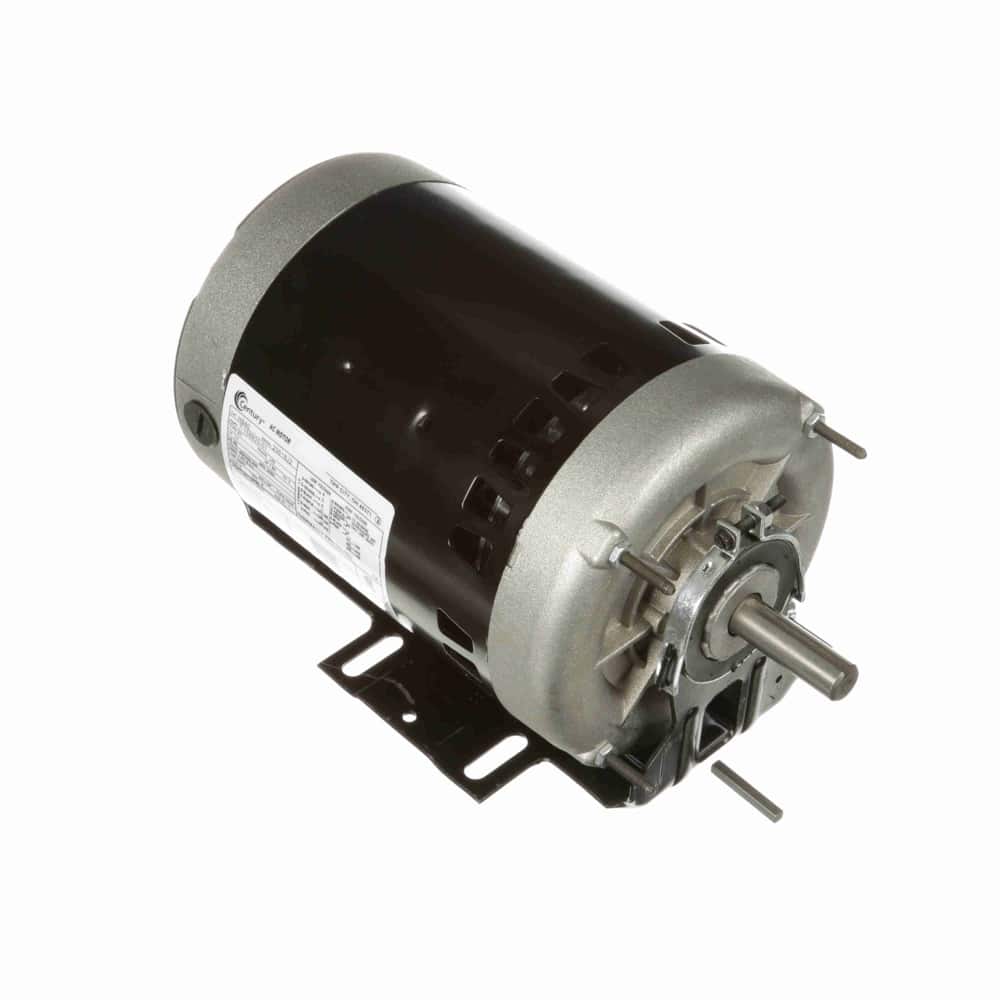

1/2HP 3PH 56 2P ODP 3450 200-230/460V AOL
Mfr # H840 | Wright’s # CEN H840
1/2HP 3-Phase General Purpose Motor, 3 Phase, 56 Frame, 3450 RPM, 1 Speed, Polyphase, Induction Type, Single Or Dual Voltage, 200-230/460V, ODP Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
H840
Wright's #
CEN H840
Country of Origin
MEX
Specifications
C Dim
12.19"
Electrical Type
Polyphase, Induction Type, Single Or Dual Voltage
Enclosure
ODP
Frame
56
Frequency
60 Hz
HP
0.5 HP
HP2
1/2 HP
Insulation Class
B
kW
0.37kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
2
Number of Speeds
1
Overload Protection
Thermally Protected
Phase
3
Rated Current
1.0/1.9-2.0
Rated Voltage
200-230/460
Rotation
Reversible Counterclockwise
RPM
3450
Service Factor
1.6
Shaft Diameter
0.625"
Speed
3450
Starting Method
Description
UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
Premium efficiency promotes improved reliability.
Heavy-duty, rolled steel construction ensures motor durability.
Permanently lubricated sealed bearings extend the lifetime of the motor.
1/2HP 3-Phase General Purpose Motor, 3 Phase, 56 Frame, 3450 RPM, 1 Speed, Polyphase, Induction Type, Single Or Dual Voltage, 200-230/460V, ODP Enclosure
