Century
1.5HP 3PH 56Y OAO 1200 230/460V CF
Mfr # H767V1 | Wright’s # CEN H767V1

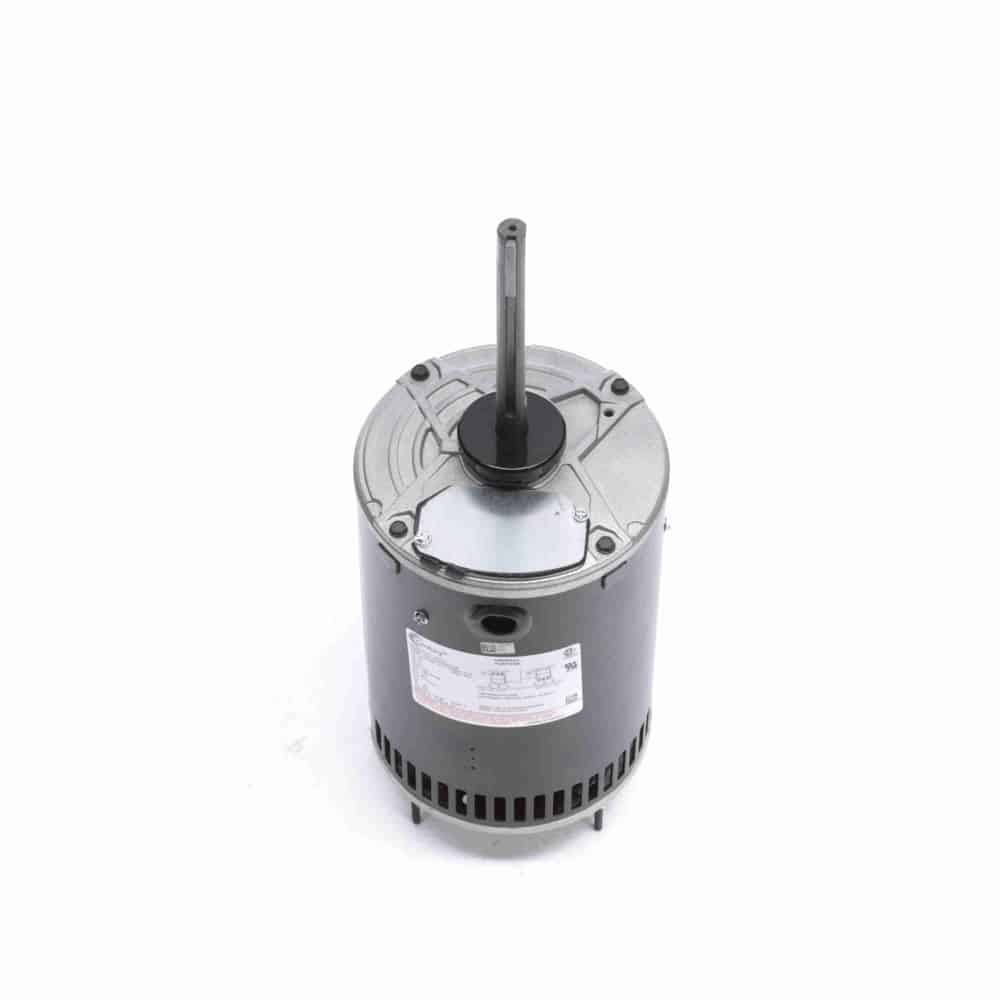

1.5HP Condenser Fan Motor, 3 Phase, 56Y Frame, 1140 RPM, 1 Speed, Three Phase, 230/460V, OAO Enclosure
$575.89
Product Information
Brand
Century
Mfr #
H767V1
Wright's #
CEN H767V1
Country of Origin
MEX
Specifications
C Dim
17.02"
Electrical Type
Three Phase
Enclosure
OAO
Full Load Efficiency
80
Frame
56Y
Frequency
60 Hz
HP
1.5 HP
HP2
1.5 HP
Insulation Class
B
kW
1.1kW
Material
Rolled Steel
Max Ambient
60°C
Number of Poles
6
Number of Speeds
1
Overload Protection
Thermally Protected
Phase
3
Rated Current
5.0/2.5
Rated Voltage
230/460
Rotation
Reversible
RPM
1140
Service Factor
1
Shaft Diameter
0.625"
Speed
1200
Starting Method
