Century

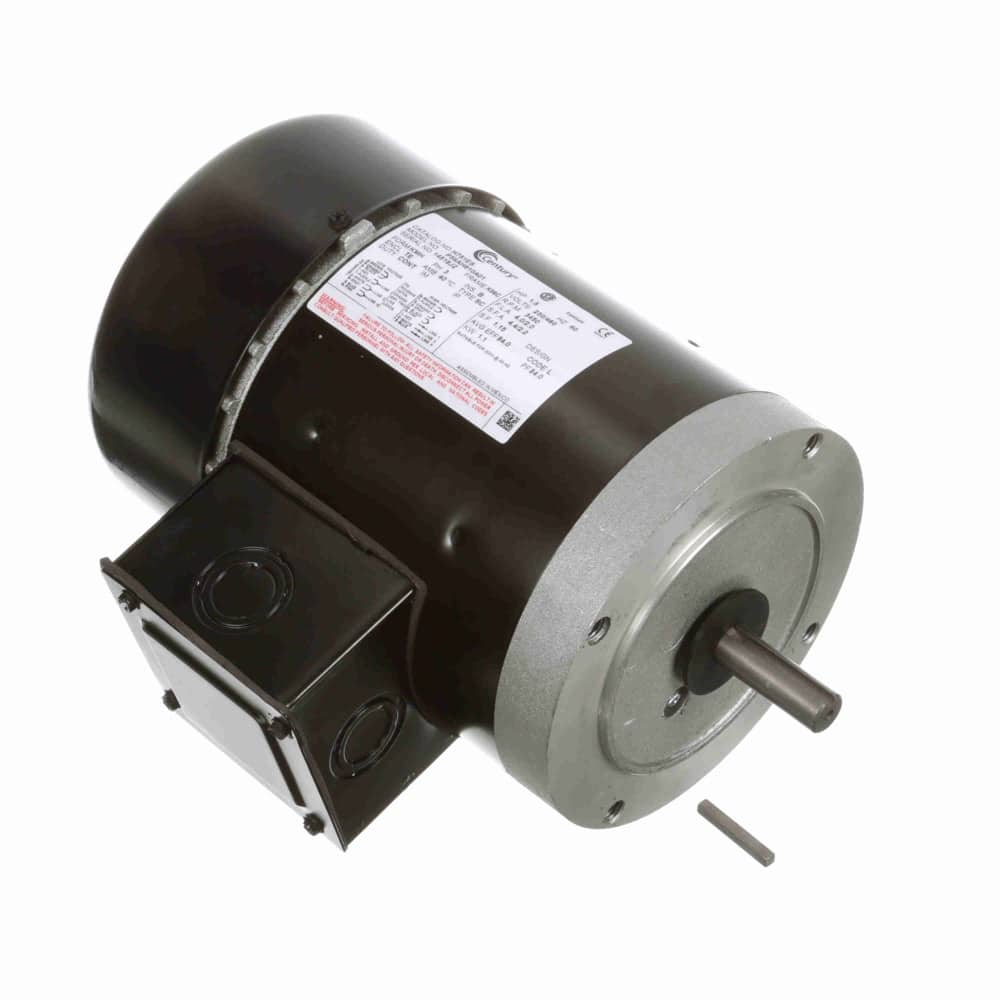

1.5HP 3PH 56C 2P TEFC 3450 230/460V
Mfr # H751ES | Wright’s # CEN H751ES
1.5HP 3-Phase General Purpose Motor, 3 Phase, 56C Frame, 3450 RPM, 1 Speed, Polyphase, Induction Type, Single Or Dual Voltage, 230/460V, TEFC Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
H751ES
Wright's #
CEN H751ES
Country of Origin
MEX
Specifications
C Dim
11.71"
Electrical Type
Polyphase, Induction Type, Single Or Dual Voltage
Enclosure
TEFC
Full Load Efficiency
84
Frame
56C
Frequency
60 Hz
HP
1.5 HP
HP2
1.5 HP
Insulation Class
B
kW
1.1kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
2
Number of Speeds
1
Overload Protection
No Protection
Phase
3
Rated Current
4.0/2.0
Rated Voltage
230/460
Rotation
Reversible Counterclockwise
RPM
3450
Service Factor
1.15
Shaft Diameter
0.625"
Speed
3450
Starting Method
Description
UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
Continuous duty cycle design allows maximum operation at the rated power specifications.
Class B or F Insulation protects motor for a maximum temperature rating.
Permanently lubricated, double-sealed bearings extend the lifetime of the motor.
1.5HP 3-Phase General Purpose Motor, 3 Phase, 56C Frame, 3450 RPM, 1 Speed, Polyphase, Induction Type, Single Or Dual Voltage, 230/460V, TEFC Enclosure
