Century

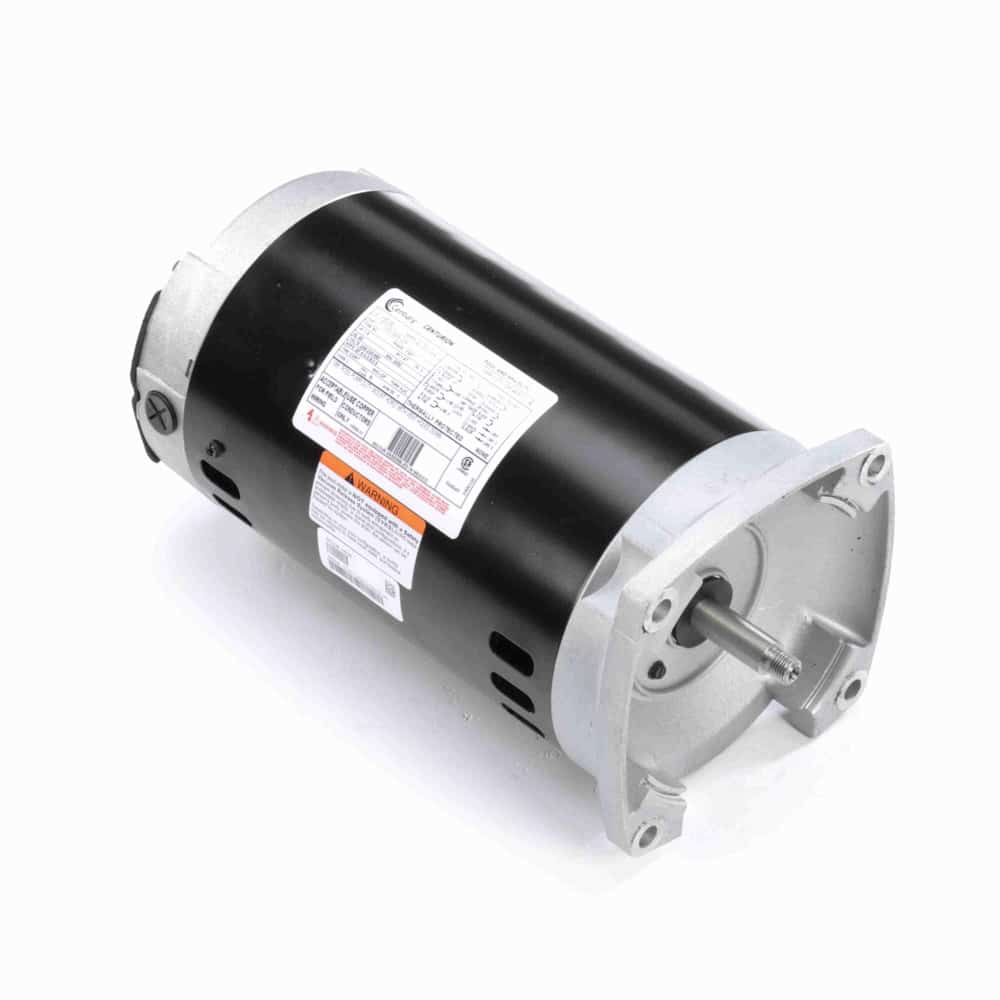

1.5HP 3PH 56Y 2P ODP 3450 208-230/460V UL1081

Mfr # H636 | Wright’s # CEN H636

1.5HP Pool & Spa Pump Motor, 3 Phase, 56Y Frame, 3450 RPM, 1 Speed, Polyphase, Induction Type, Single Or Dual Voltage, 208-230/460V, ODP Enclosure

Out of stock

Contact Us For Pricing

Product Information

Brand Century
Mfr # H636
Wright's # CEN H636
Country of Origin MEX

Specifications

C Dim 13.4"
Electrical Type Polyphase, Induction Type, Single Or Dual Voltage
Enclosure ODP
Frame 56Y
Frequency 60 Hz
HP 1.5 HP
HP2 1.5 HP
Insulation Class B
kW 1.1kW
Material Rolled Steel
Max Ambient 50°C
Number of Poles 2
Number of Speeds 1
Overload Protection No Protection
Phase 3
Rated Current SF 6.4-5.8/2.9
Rated Voltage 208-230/460
Rotation Reversible Counterclockwise
RPM 3450
Service Factor 1.47
Shaft Diameter 0.625"
Speed 3450
Starting Method

Description

Sealed Ball Bearings
303 Stainless Steel Shaft
Threaded Shaft
50°C Ambient
3 Phase
Square Flange

1.5HP Pool & Spa Pump Motor, 3 Phase, 56Y Frame, 3450 RPM, 1 Speed, Polyphase, Induction Type, Single Or Dual Voltage, 208-230/460V, ODP Enclosure
