Century
0.5HP 3PH 56 6P TENV 1140 200-230/460V
Mfr # H280V1 | Wright’s # CEN H280V1

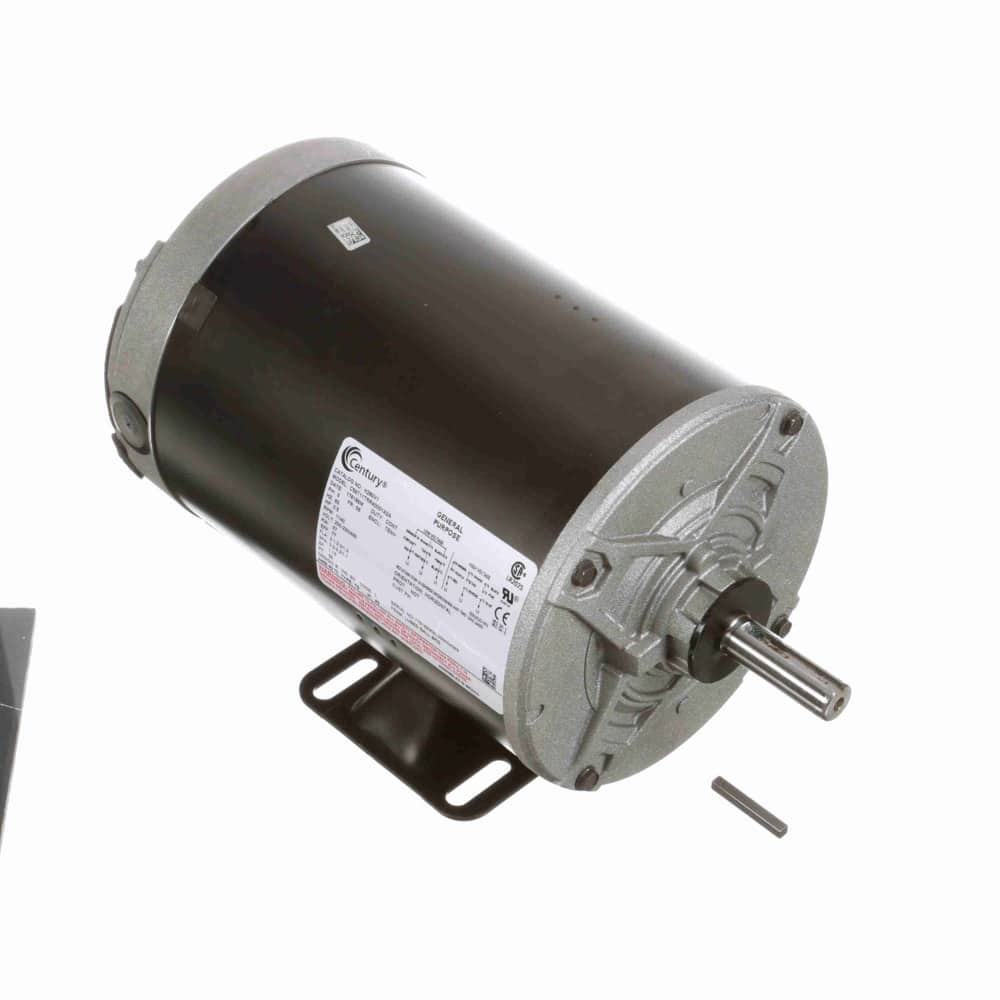

0.5HP 3-Phase General Purpose Motor, 3 Phase, 56 Frame, 1140 RPM, 1 Speed, Three Phase, 200-230/460V, TENV Enclosure
$619.42
Product Information
Brand
Century
Mfr #
H280V1
Wright's #
CEN H280V1
Country of Origin
MEX
Specifications
C Dim
12.6"
Electrical Type
Three Phase
Enclosure
TENV
Full Load Efficiency
77
Frame
56
Frequency
60 Hz
HP
0.5 HP
HP2
0.5 HP
Insulation Class
B
kW
0.37kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
6
Number of Speeds
1
Overload Protection
No Protection
Phase
3
Rated Current
2.1-2.0/1.0
Rated Voltage
200-230/460
Rotation
Reversible
RPM
1140
Service Factor
1.15
Shaft Diameter
0.625"
Speed
1140
Starting Method
Description
UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
Heavy-duty, rolled steel construction ensures motor durability.
Permanently lubricated sealed bearings extend the lifetime of the motor.
Suitable for belt-driven or fan-on-shaft applications.
0.5HP 3-Phase General Purpose Motor, 3 Phase, 56 Frame, 1140 RPM, 1 Speed, Three Phase, 200-230/460V, TENV Enclosure
