Century

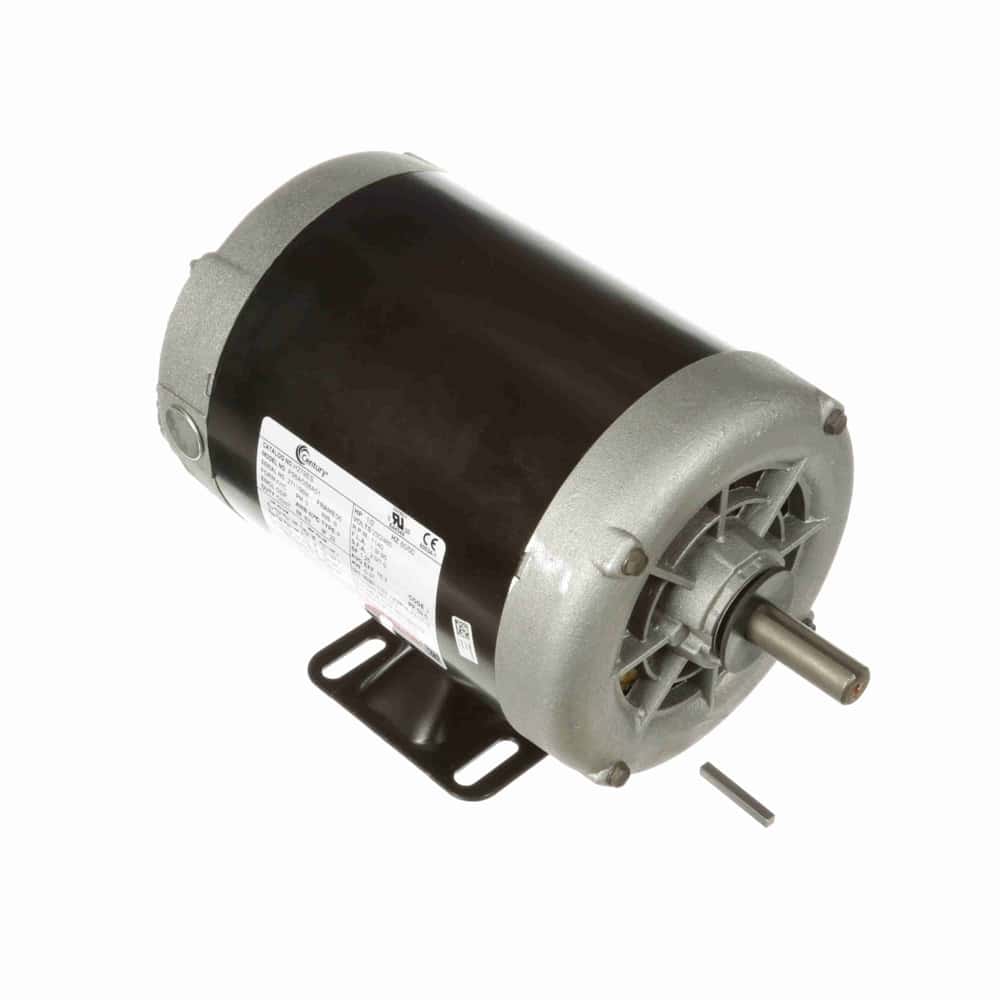

1/2HP 3PH 56 6P ODP 1140 230/460V
Mfr # H279ES | Wright’s # CEN H279ES
1/2HP 3-Phase General Purpose Motor, 3 Phase, 56 Frame, 1140 RPM, 1 Speed, Polyphase, 230/460V, ODP Enclosure
$667.34
Product Information
Brand
Century
Mfr #
H279ES
Wright's #
CEN H279ES
Country of Origin
MEX
Specifications
C Dim
11.7"
Electrical Type
Polyphase
Enclosure
ODP
Frame
56
Frequency
60 Hz
HP
0.5 HP
HP2
1/2 HP
Insulation Class
B
kW
0.37kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
6
Number of Speeds
1
Overload Protection
No Protection
Phase
3
Rated Current
1.9/.95
Rated Voltage
230/460
Rotation
Clockwise/Counterclockwise
RPM
1140
Service Factor
1.25
Shaft Diameter
0.625"
Speed
1140
Starting Method
Description
UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
Premium efficiency promotes improved reliability.
Heavy-duty, rolled steel construction ensures motor durability.
Permanently lubricated sealed bearings extend the lifetime of the motor.
1/2HP 3-Phase General Purpose Motor, 3 Phase, 56 Frame, 1140 RPM, 1 Speed, Polyphase, 230/460V, ODP Enclosure
