Century

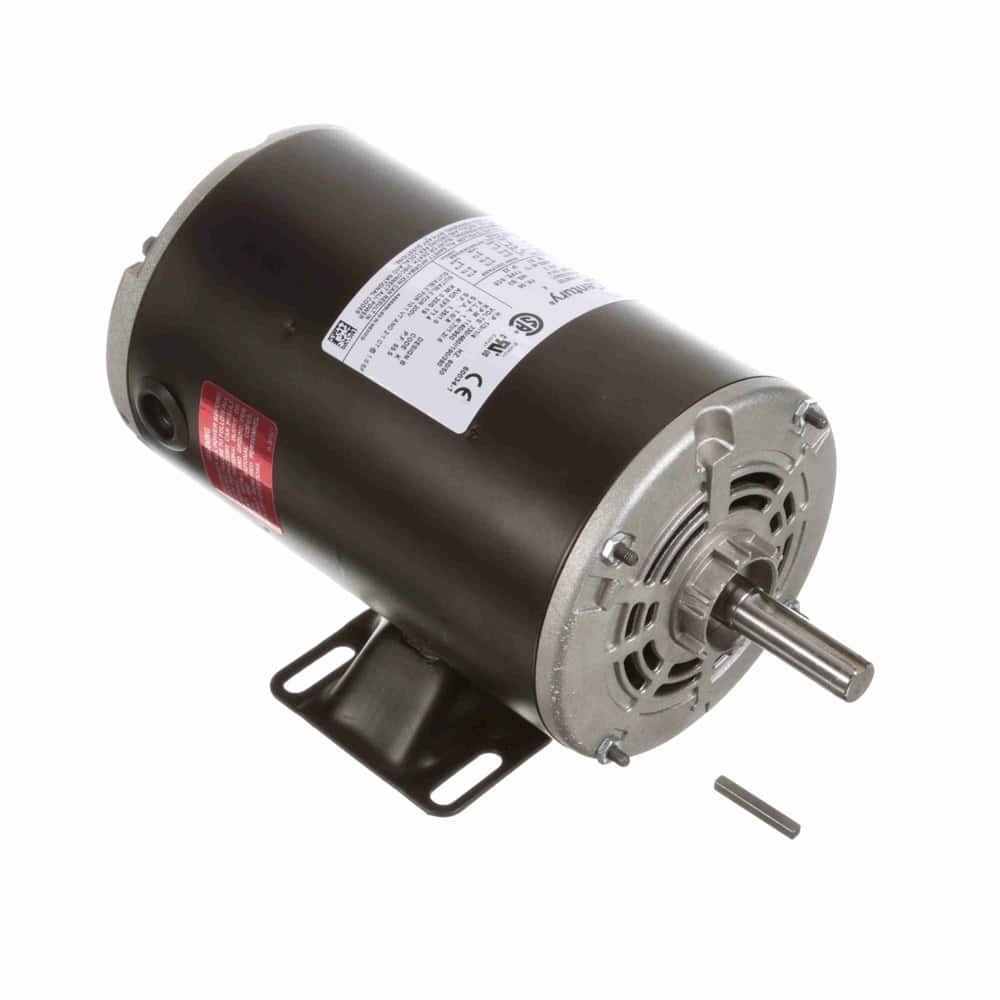

1/3HP 3PH 56 6P ODP 1140 230/460V
Mfr # H267ES | Wright’s # CEN H267ES
1/3HP 3-Phase General Purpose Motor, 3 Phase, 56 Frame, 1140 RPM, 1 Speed, Three Phase, 230/460V, ODP Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
H267ES
Wright's #
CEN H267ES
Country of Origin
MEX
Specifications
C Dim
11.94"
Electrical Type
Three Phase
Enclosure
ODP
Frame
56
Frequency
60/50 Hz
HP
0.33 HP
HP2
1/3 HP
Insulation Class
B
kW
0.25kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
6
Number of Speeds
1
Overload Protection
No Protection
Phase
3
Rated Current
1.4/.7
Rated Voltage
230/460
Rotation
Reversible
RPM
1140
Service Factor
1.35
Shaft Diameter
0.625"
Speed
1140
Starting Method
Description
UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
Premium efficiency promotes improved reliability.
Heavy-duty, rolled steel construction ensures motor durability.
Permanently lubricated sealed bearings extend the lifetime of the motor.
1/3HP 3-Phase General Purpose Motor, 3 Phase, 56 Frame, 1140 RPM, 1 Speed, Three Phase, 230/460V, ODP Enclosure
