Century

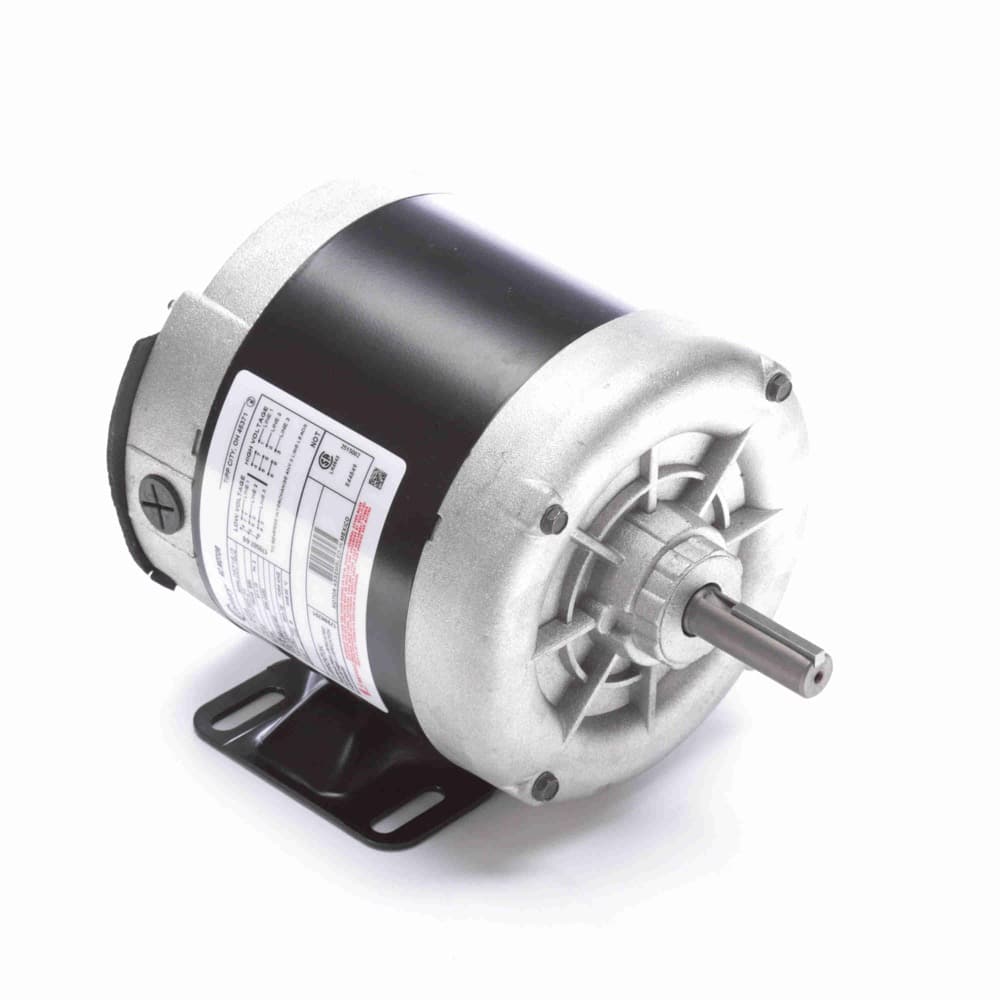

1/3HP 3PH 56 2P TENV 3450 200-230/460V
Mfr # H238 | Wright’s # CEN H238
1/3HP 3-Phase General Purpose Motor, 3 Phase, 56 Frame, 3450 RPM, 1 Speed, Polyphase, Induction Type, Single Or Dual Voltage, 200-230/460V, TENV Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
H238
Wright's #
CEN H238
Country of Origin
MEX
Specifications
C Dim
9.88"
Electrical Type
Polyphase, Induction Type, Single Or Dual Voltage
Enclosure
TENV
Frame
56
Frequency
60 Hz
HP
0.33 HP
HP2
1/3 HP
Insulation Class
B
kW
0.25kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
2
Number of Speeds
1
Overload Protection
No Protection
Phase
3
Rated Current
1.3-1.4/.7
Rated Voltage
200-230/460
Rotation
Reversible Counterclockwise
RPM
3450
Service Factor
1.15
Shaft Diameter
0.625"
Speed
3450
Starting Method
Description
UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
Heavy-duty, rolled steel construction ensures motor durability.
Permanently lubricated sealed bearings extend the lifetime of the motor.
Suitable for belt-driven or fan-on-shaft applications.
1/3HP 3-Phase General Purpose Motor, 3 Phase, 56 Frame, 3450 RPM, 1 Speed, Polyphase, Induction Type, Single Or Dual Voltage, 200-230/460V, TENV Enclosure
