Century

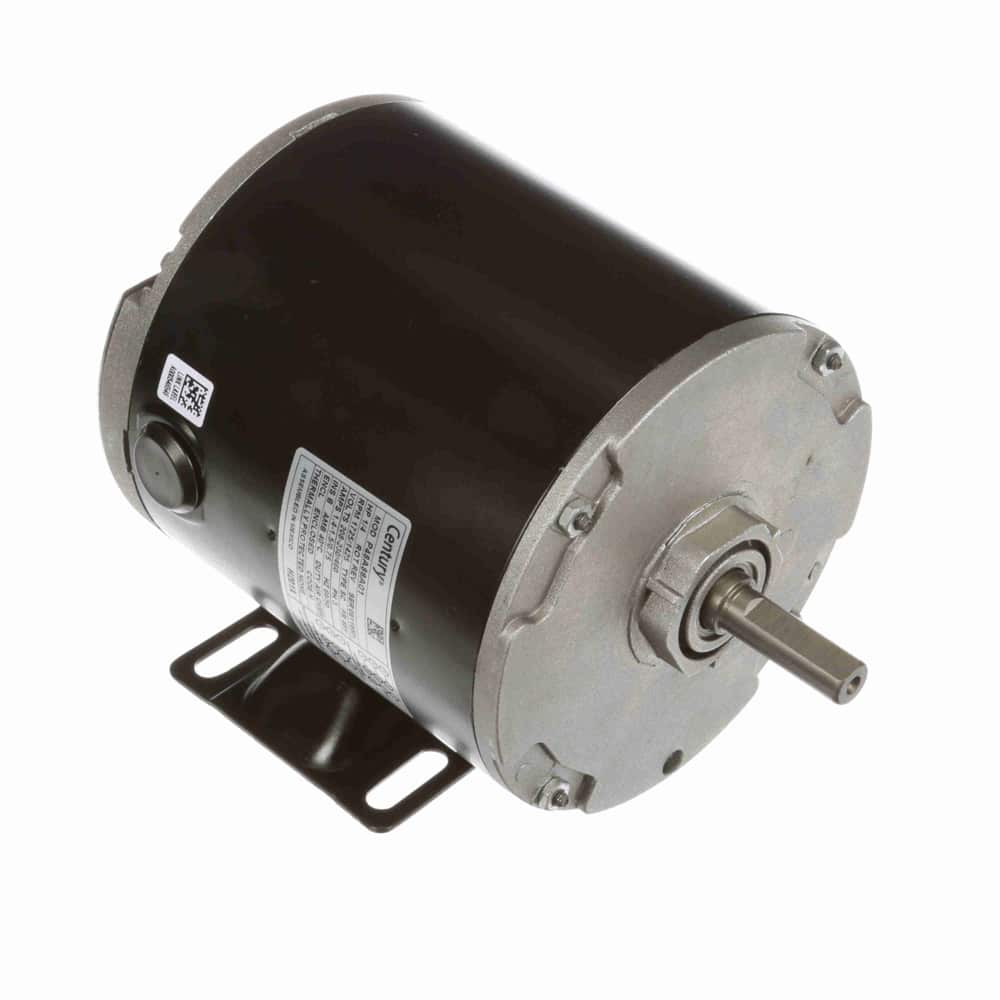

1/4HP 3PH 48Y 4P TEAO 2spd 1725 208-230/460V

Name: 1/4HP 3PH 48Y 4P TEAO 2spd 1725 208-230/460V
Brand: Century
SKU: 31030
Price: 362.09 USD
Availability: InStock

Mfr # H201A | Wright’s # CEN H201A

1/4HP 3-Phase General Purpose Motor, 3 Phase, 48Y Frame, 1725 RPM, 2 Speed, Polyphase, Induction Type, Single Or Dual Voltage, 208-230/460V, TEAO Enclosure

Product Information

Brand Century

Mfr # H201A

Wright's # CEN H201A

Country of Origin MEX

Specifications

C Dim 8.46"

Electrical Type Polyphase, Induction Type, Single Or Dual Voltage

Enclosure TEAO

Frame 48Y

Frequency 60/50 Hz

HP 0.25 HP

HP2 1/4 HP

Insulation Class B

kW 0.19kW

Material Rolled Steel

Max Ambient 40°C

Number of Poles 4

Number of Speeds 2

Overload Protection No Protection

Phase 3

Rated Current 1.4-1.5/0.75

Rated Voltage 208-230/460

Rotation Reversible

RPM 1725

Service Factor 1

Shaft Diameter 0.5"

Speed 1725/1425

Starting Method

Description

Meets or exceeds all USA mandated efficiencies
Energy Efficient

1/4HP 3-Phase General Purpose Motor, 3 Phase, 48Y Frame, 1725 RPM, 2 Speed, Polyphase, Induction Type, Single Or Dual Voltage, 208-230/460V, TEAO Enclosure

Documents

Data Sheet

1/4HP 3PH 48Y 4P TEAO 2spd 1725 208-230/460V
