Century
1HP 3PH 56HZ OAO 900 208-230/460V CF
Mfr # H1053AV1 | Wright’s # CEN H1053AV1

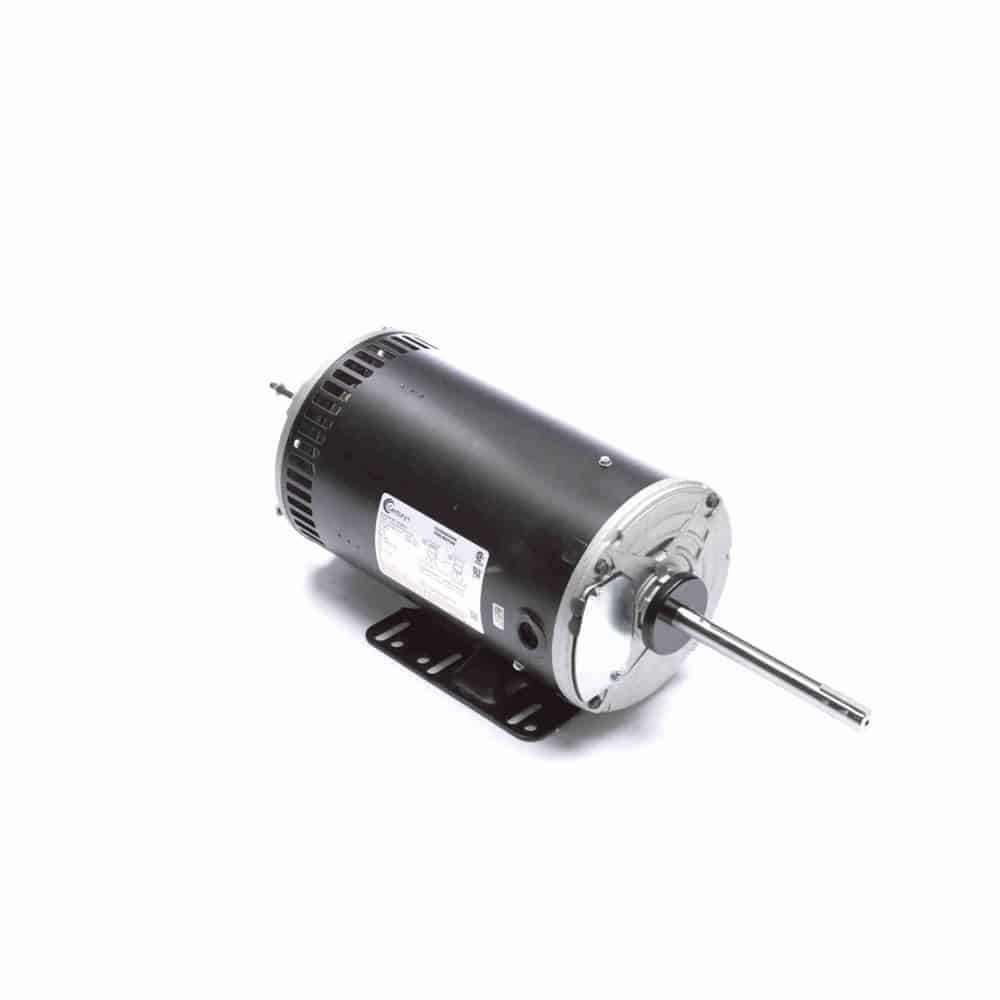

1HP Condenser Fan Motor, 3 Phase, 56HZ Frame, 850 RPM, 1 Speed, Three Phase, 208-230/460V, OAO Enclosure
$611.92
Product Information
Brand
Century
Sub-Brand
JuggerNaut®
Mfr #
H1053AV1
Wright's #
CEN H1053AV1
Country of Origin
MEX
Specifications
C Dim
18.85"
Electrical Type
Three Phase
Enclosure
OAO
Frame
56HZ
Frequency
60 Hz
HP
1 HP
HP2
1 HP
Insulation Class
F
kW
0.75kW
Material
Rolled Steel
Max Ambient
70°C
Number of Poles
8
Number of Speeds
1
Overload Protection
Thermally Protected
Phase
3
Rated Current
5.1-5.4/2.7
Rated Voltage
208-230/460
Rotation
Reversible
RPM
850
Service Factor
1
Shaft Diameter
0.625"
Speed
900
Starting Method
