Century

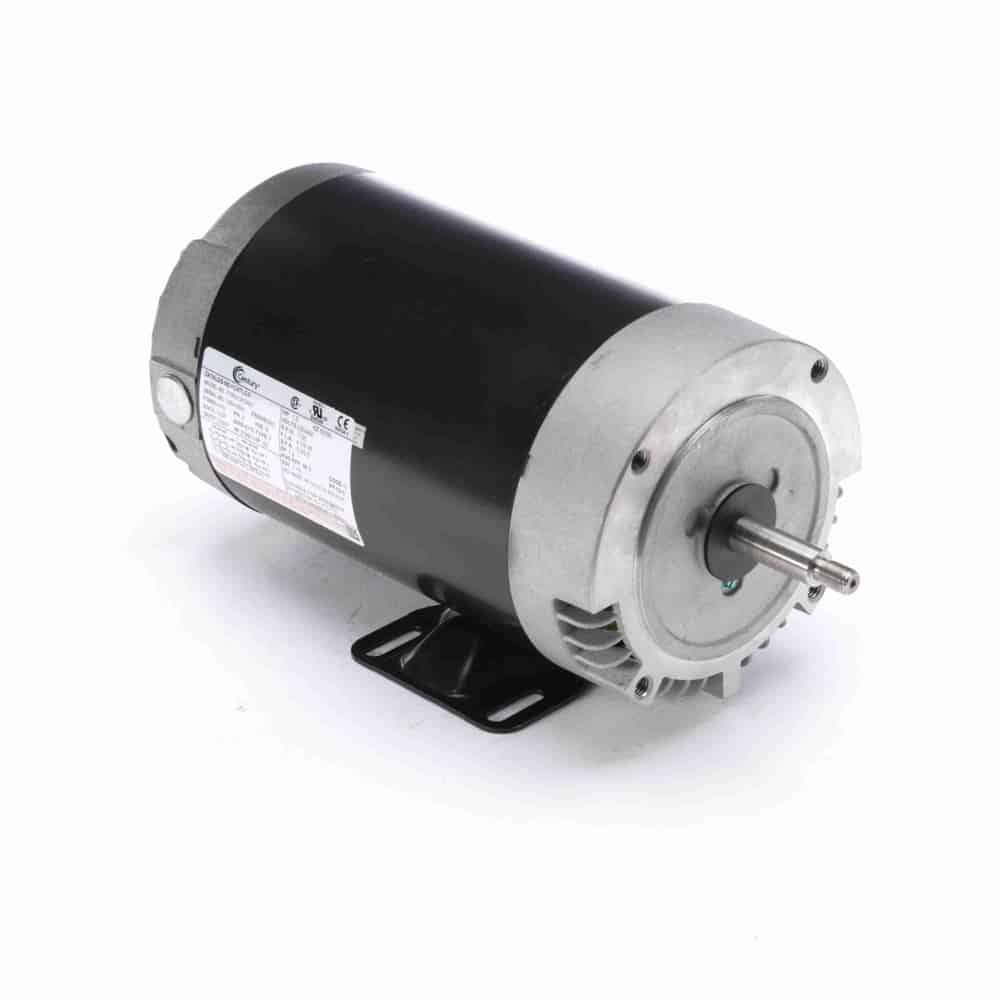

1.5HP 3PH 56C 4P ODP 1725 230/460V
Mfr # H047LES | Wright’s # CEN H047LES
1.5HP 3-Phase General Purpose Motor, 3 Phase, 56C Frame, 1725 RPM, 1 Speed, Polyphase, 230/460V, ODP Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
H047LES
Wright's #
CEN H047LES
Country of Origin
MEX
Specifications
C Dim
14.27"
Electrical Type
Polyphase
Enclosure
ODP
Frame
56C
Frequency
60 Hz
HP
1.5 HP
HP2
1.5 HP
Insulation Class
B
kW
1.1kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
4
Number of Speeds
1
Overload Protection
No Protection
Phase
3
Rated Current
4.7/2.35
Rated Voltage
230/460
Rotation
Counterclockwise
RPM
1725
Service Factor
1.2
Shaft Diameter
0.625"
Speed
1725
Starting Method
Description
UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
Premium efficiency promotes improved reliability.
Heavy-duty, rolled steel construction ensures motor durability.
Permanently lubricated sealed bearings extend the lifetime of the motor.
1.5HP 3-Phase General Purpose Motor, 3 Phase, 56C Frame, 1725 RPM, 1 Speed, Polyphase, 230/460V, ODP Enclosure
