Century

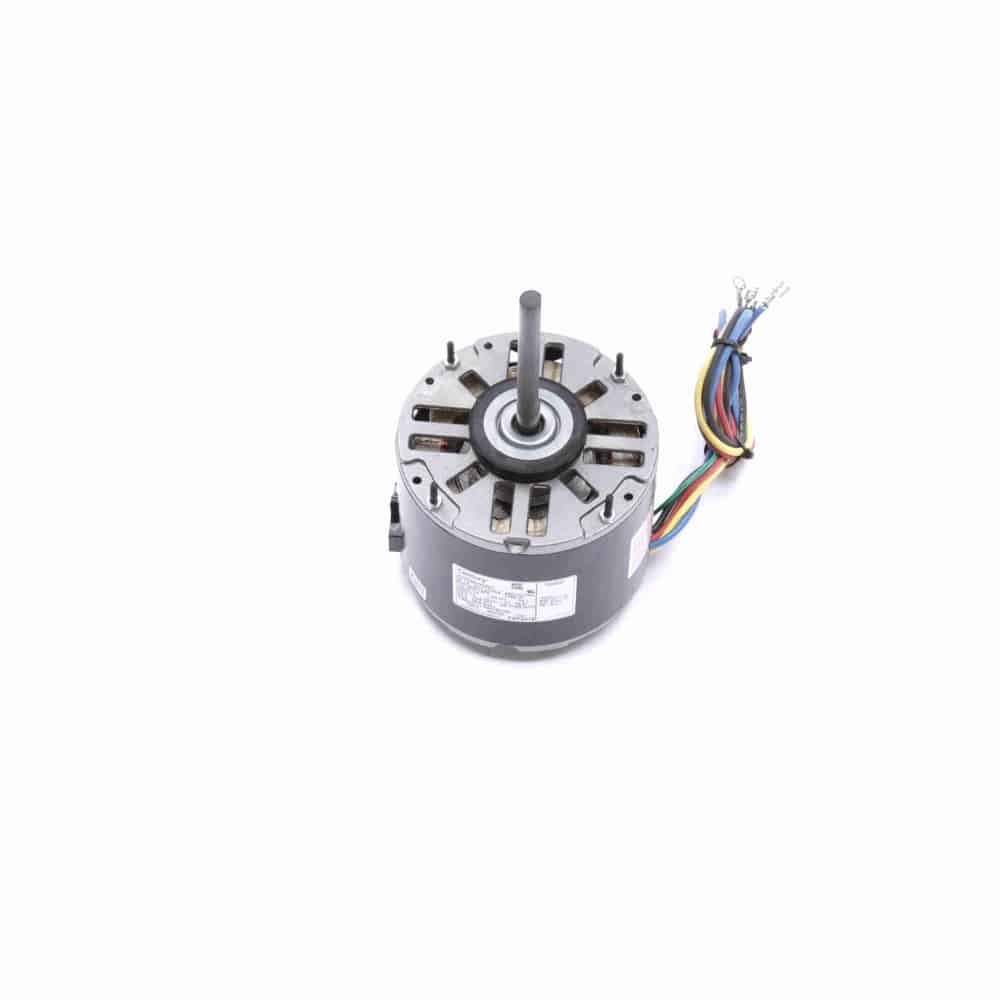

1/5HP PSC 48Y TE 3spd 1050 CCWSE 115V 5uF-inc BM
Mfr # FSP4016 | Wright’s # CEN FSP4016
1/5HP Fan & Blower Motor, 1 Phase, 48Y Frame, 1050 RPM, 3 Speed, Permanent Split Capacitor, 115V, TEAO Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
FSP4016
Wright's #
CEN FSP4016
Specifications
C Dim
9.61"
Electrical Type
Permanent Split Capacitor
Enclosure
TEAO
Frame
48Y
Frequency
60 Hz
HP
0.2 HP
HP2
1/5 HP
Insulation Class
A
kW
0.15kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
6
Number of Speeds
3
Overload Protection
Automatic
Phase
1
Rated Current
3.2
Rated Voltage
115
Rotation
Counterclockwise Lead End
RPM
1050
Service Factor
1
Shaft Diameter
0.5"
Speed
1050
Starting Method
Description
Furnace – Air Handler – Fan Coil Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-250 Volts (Supplied with Motor)
Thermally Protected
Open Shaft and Lead End End-Frame, Semi-Enclosed Shell, Air Over
Class A Insulation, 40°C Ambient
Sleeve Bearing
1/2″ Diameter Shaft with FlatЂ” Leads with Quick Connect Terminals
Extended Studs Shaft End, Resilient Ring Mount, Belly Band Mount
1/5HP Fan & Blower Motor, 1 Phase, 48Y Frame, 1050 RPM, 3 Speed, Permanent Split Capacitor, 115V, TEAO Enclosure
