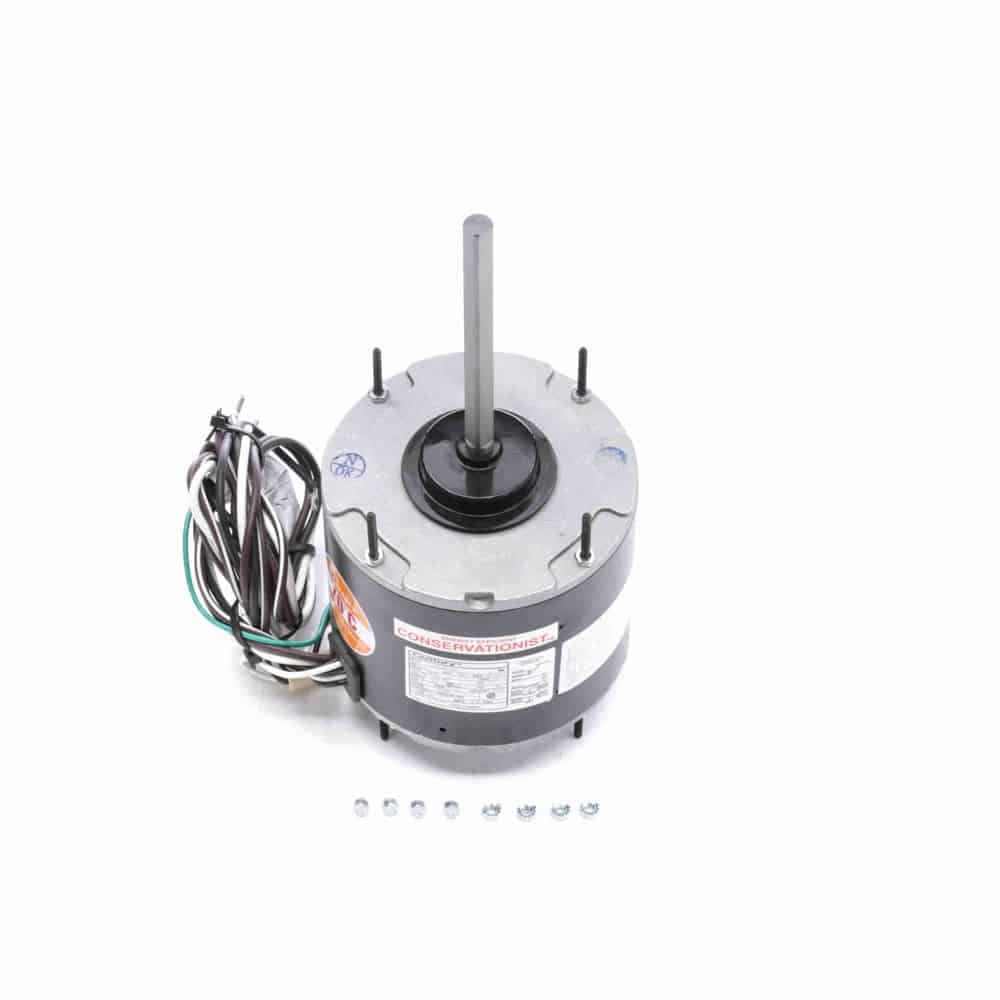

1/3HP PSC 5.6" TE 1075 208-230V 5uF CF
Century

1/3HP PSC 5.6″ TE 1075 208-230V 5uF CF

Mfr # FSE1036SF | Wright’s # CEN FSE1036SF

1/3HP Condenser Fan Motor, 1 Phase, 48 Frame, 1075 RPM, 1 Speed, Permanent Split Capacitor, 208-230V, TEAO Enclosure

Contact Us For Pricing

Product Information

Brand Century
Sub-Brand HEATMASTER®
Mfr # FSE1036SF
Wright's # CEN FSE1036SF
Country of Origin IND

Specifications

C Dim 12.24"
Electrical Type Permanent Split Capacitor
Enclosure TEAO
Frame 48
Frequency 60 Hz
HP 0.33 HP
HP2 1/3 HP
Insulation Class F
kW 0.25kW
Material Rolled Steel
Max Ambient 70°C
Number of Poles 6
Number of Speeds 1
Overload Protection Automatic
Phase 1
Rated Current 2.8
Rated Voltage 208-230
Rotation Reversible
RPM 1075
Service Factor 1
Shaft Diameter 0.5"
Speed 1075
Starting Method

Description

HeatMaster – Condenser Fan – Heat Pump – Refrigeration Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Totally Enclosed Air Over
Class F Insulation, 70°C Ambient
Design Upgrade, Converting From Sleeve Bearing to Ball Bearing
1/2″ Diameter Shaft with Double FlatИ” Leads
Extended Studs Shaft and Lead End, Mounting Holes in Shell, Belly Band Mount (Belly Band Not Included)

1/3HP Condenser Fan Motor, 1 Phase, 48 Frame, 1075 RPM, 1 Speed, Permanent Split Capacitor, 208-230V, TEAO Enclosure
