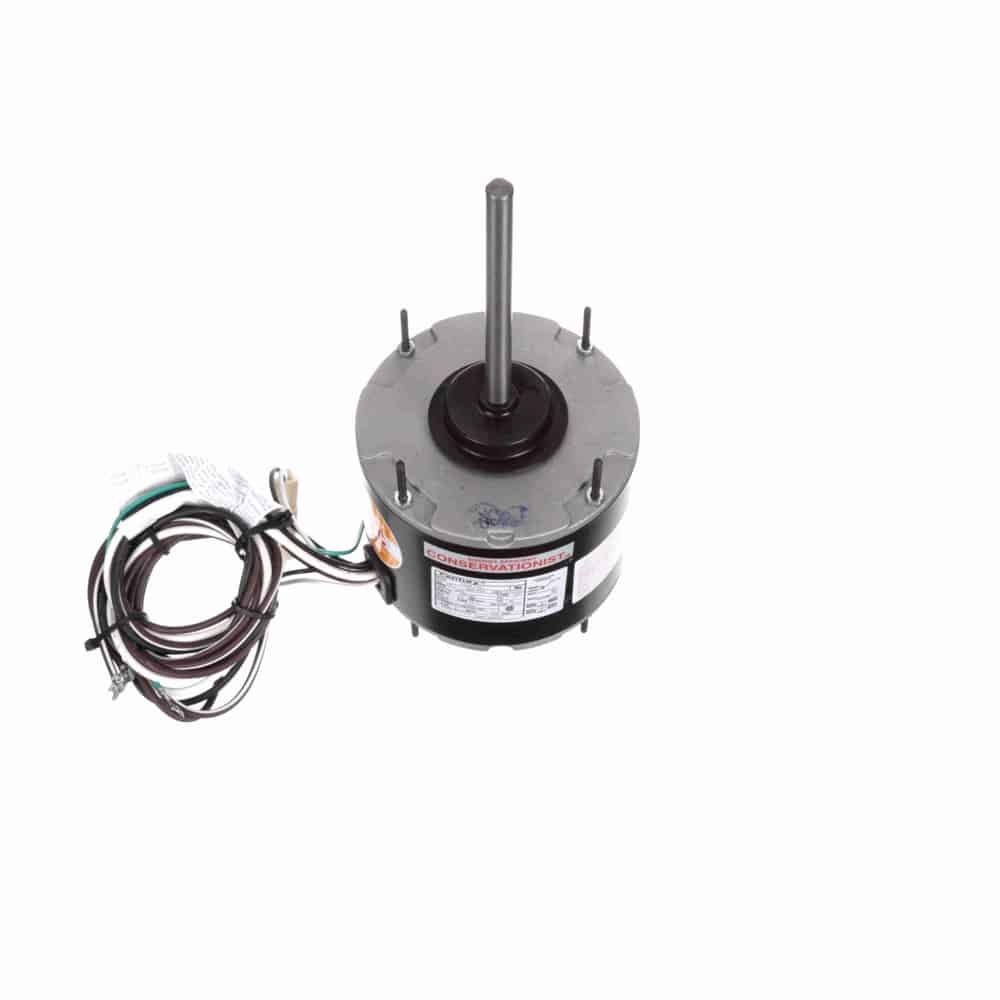

1/4HP PSC 5.6" TE 1075 208-230V 5uF CF
Century

1/4HP PSC 5.6″ TE 1075 208-230V 5uF CF

Mfr # FSE1026SF | Wright’s # CEN FSE1026SF

1/4HP Condenser Fan Motor, 1 Phase, 48 Frame, 1075 RPM, 1 Speed, Permanent Split Capacitor, 208-230V, TEAO Enclosure

1 in stock

Sign in to access special pricing and availability.
x

$123.12

Product Information

Brand Century
Sub-Brand HEATMASTER®
Mfr # FSE1026SF
Wright's # CEN FSE1026SF
Country of Origin IND

Specifications

C Dim 11.74"
Electrical Type Permanent Split Capacitor
Enclosure TEAO
Frame 48
Frequency 60 Hz
HP 0.25 HP
HP2 1/4 HP
Insulation Class F
kW 0.19kW
Material Rolled Steel
Max Ambient 70°C
Number of Poles 6
Number of Speeds 1
Overload Protection Automatic
Phase 1
Rated Current 2
Rated Voltage 208-230
Rotation Reversible
RPM 1075
Service Factor 1
Shaft Diameter 0.5"
Speed 1075
Starting Method

Description

HeatMaster – Condenser Fan – Heat Pump – Refrigeration Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Totally Enclosed Air Over
Class F Insulation, 70°C Ambient
Design Upgrade, Converting From Sleeve Bearing to Ball Bearing
1/2″ Diameter Shaft with Double FlatИ” Leads
Extended Studs Shaft and Lead End, Mounting Holes in Shell, Belly Band Mount (Belly Band Not Included)

1/4HP Condenser Fan Motor, 1 Phase, 48 Frame, 1075 RPM, 1 Speed, Permanent Split Capacitor, 208-230V, TEAO Enclosure
