Century
1/2HP PSC 48Y OAO 2spd 1075 208-230V 10uF CF
Mfr # FS1056 | Wright’s # CEN FS1056

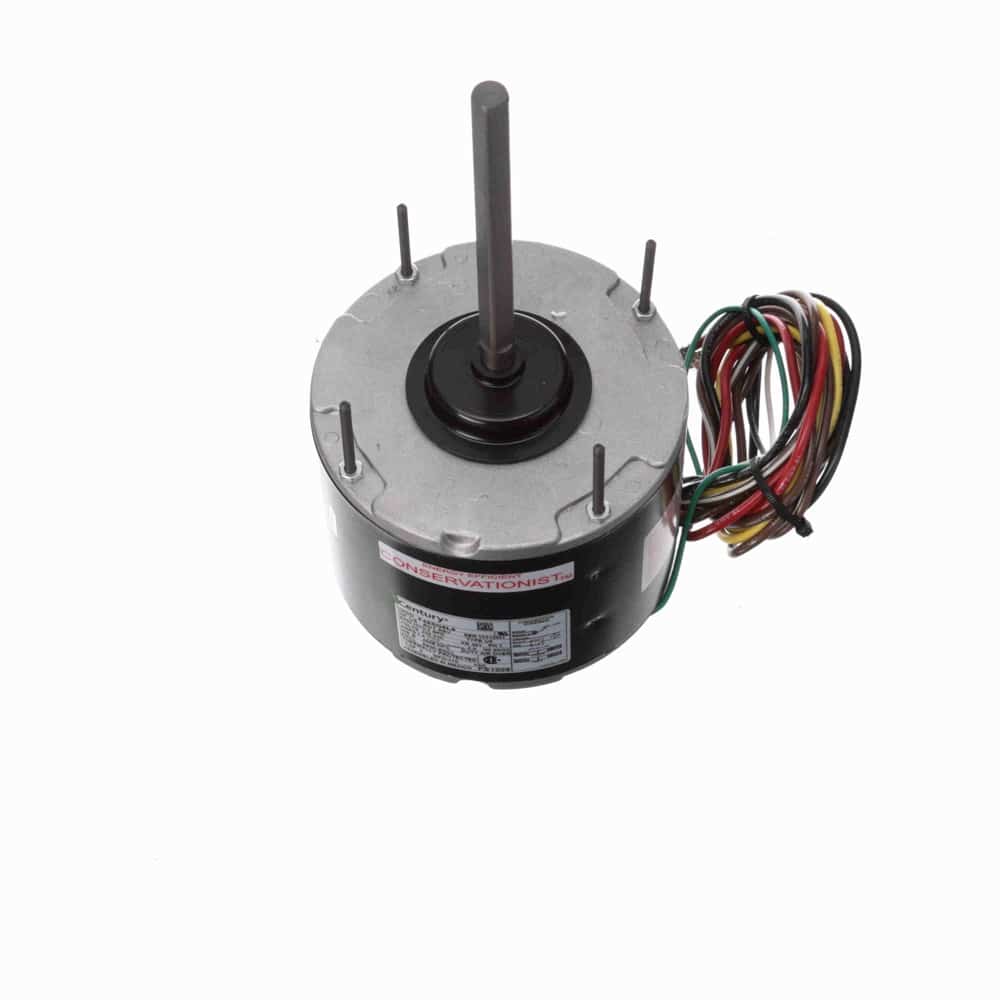

1/2HP Condenser Fan Motor, 1 Phase, 48Y Frame, 1075 RPM, 2 Speed, Permanent Split Capacitor, 208-230V, OAO Enclosure
$209.25
Product Information
Brand
Century
Mfr #
FS1056
Wright's #
CEN FS1056
Country of Origin
MEX
Specifications
C Dim
12.05"
Electrical Type
Permanent Split Capacitor
Enclosure
OAO
Frame
48Y
Frequency
60 Hz
HP
0.5 HP
HP2
1/2 HP
Insulation Class
B
kW
0.37kW
Material
Rolled Steel
Max Ambient
60°C
Number of Poles
6
Number of Speeds
2
Overload Protection
Automatic
Phase
1
Rated Current
2.5
Rated Voltage
208-230
Rotation
Reversible
RPM
1075
Service Factor
1
Shaft Diameter
0.5"
Speed
1075
Starting Method
Description
Condenser Fan – Heat Pump – Refrigeration Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 10 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Enclosed, Except Open Lead End End-Frame Air Over
Class B Insulation, 60°C Ambient
Sleeve Bearing
1/2″ Diameter Shaft with Double FlatЂ” Leads
Extended Studs Shaft End, Hex Mounting Hub on Both Ends for Resilient Base Mounting (Resilient Rings Included), Belly Band
1/2HP Condenser Fan Motor, 1 Phase, 48Y Frame, 1075 RPM, 2 Speed, Permanent Split Capacitor, 208-230V, OAO Enclosure
