Century

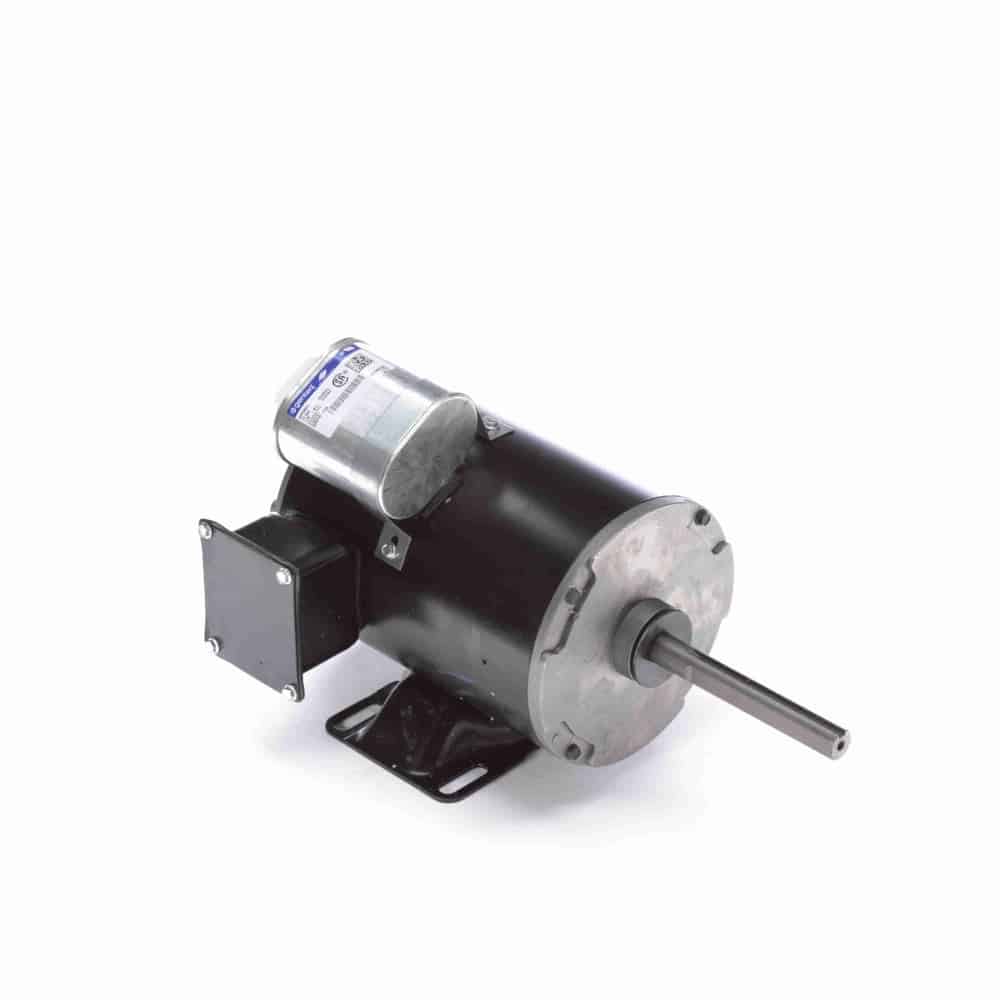

1HP PSC 56Y ODP 1075 208-230/460V 5uF CF
Mfr # FR1106 | Wright’s # CEN FR1106
1HP Condenser Fan Motor, 1 Phase, 56Y Frame, 1075 RPM, 1 Speed, Permanent Split Capacitor, 208-230/460V, ODP Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
FR1106
Wright's #
CEN FR1106
Country of Origin
MEX
Specifications
C Dim
12.94"
Electrical Type
Permanent Split Capacitor
Enclosure
ODP
Frame
56Y
Frequency
60 Hz
HP
1 HP
HP2
1 HP
Insulation Class
B
kW
0.75kW
Material
Rolled Steel
Max Ambient
60°C
Number of Poles
6
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
7.6/3.8
Rated Voltage
208-230/460
Rotation
Reversible
RPM
1075
Service Factor
1
Shaft Diameter
0.625"
Speed
1075
Starting Method
Description
Condenser Fan Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 17.5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Open Lead End End-Frame, Shell Half Vented Lead End, Enclosed Shaft End End-Frame, Air Over
Class B Insulation, 60°C Ambient
Ball Bearing
5/8″ Diameter Keyed Shaft with Flat
Conduit Box
Rigid Base
1HP Condenser Fan Motor, 1 Phase, 56Y Frame, 1075 RPM, 1 Speed, Permanent Split Capacitor, 208-230/460V, ODP Enclosure
