Century

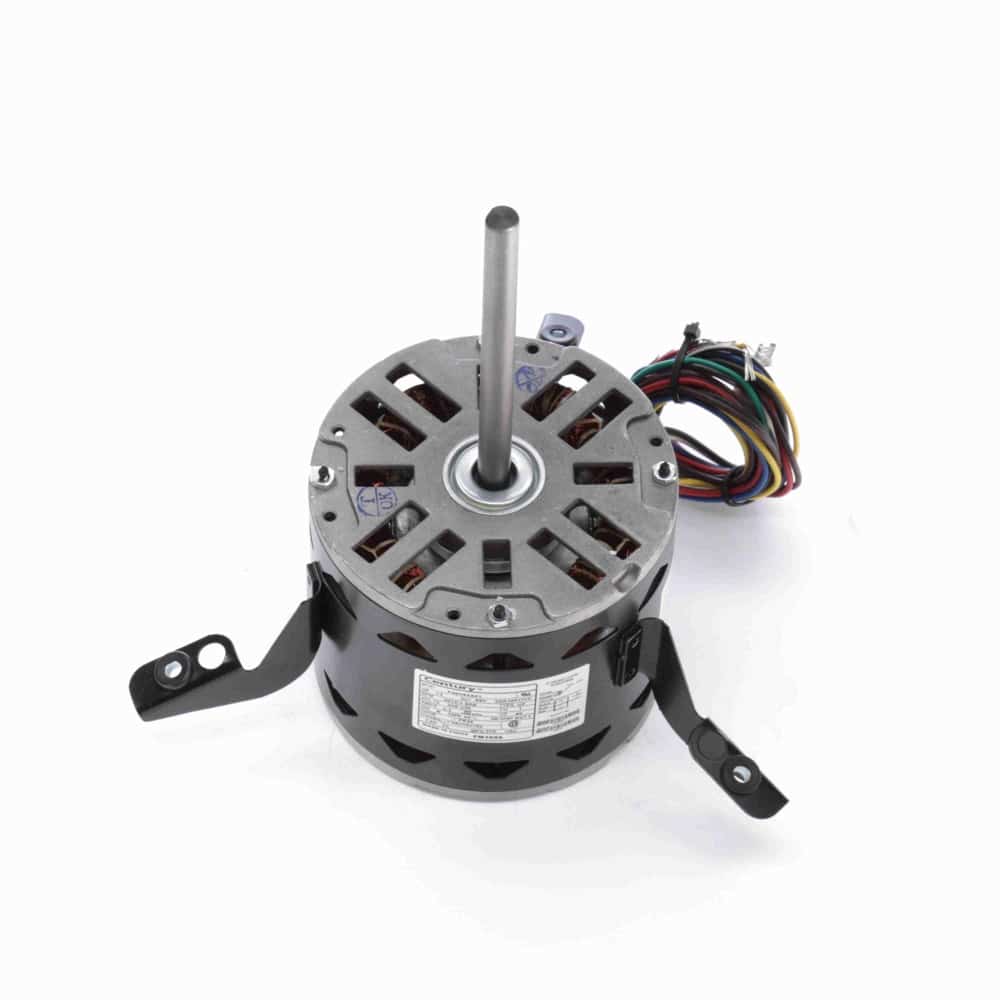

1/2HP PSC 48Y ODP 3spd 1075 208-230V 10uF
Mfr # FM1056 | Wright’s # CEN FM1056
1/2HP Fan Coil & Air Conditioner Motor, 1 Phase, 48Y Frame, 1075 RPM, 3 Speed, Permanent Split Capacitor, 208-230V, ODP Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
FM1056
Wright's #
CEN FM1056
Country of Origin
IND
Specifications
C Dim
10.86"
Electrical Type
Permanent Split Capacitor
Enclosure
ODP
Frame
48Y
Frequency
60 Hz
HP
0.5 HP
HP2
1/2 HP
Insulation Class
B
kW
0.37kW
Material
Rolled Steel
Max Ambient
50°C
Number of Poles
6
Number of Speeds
3
Overload Protection
Automatic
Phase
1
Rated Current
3.3
Rated Voltage
208-230
Rotation
Reversible
RPM
1075
Service Factor
1
Shaft Diameter
0.5"
Speed
1075
Starting Method
Description
Fan Coil – Room Air Conditioner – Blower Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 10 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Open Air Over
Class B Insulation, 50°C Ambient
Design Upgrade, Converting From Sleeve Bearing to Ball Bearing
1/2″ Diameter Shaft with FlatЂ” Leads
Flex Mount
1/2HP Fan Coil & Air Conditioner Motor, 1 Phase, 48Y Frame, 1075 RPM, 3 Speed, Permanent Split Capacitor, 208-230V, ODP Enclosure
