Century

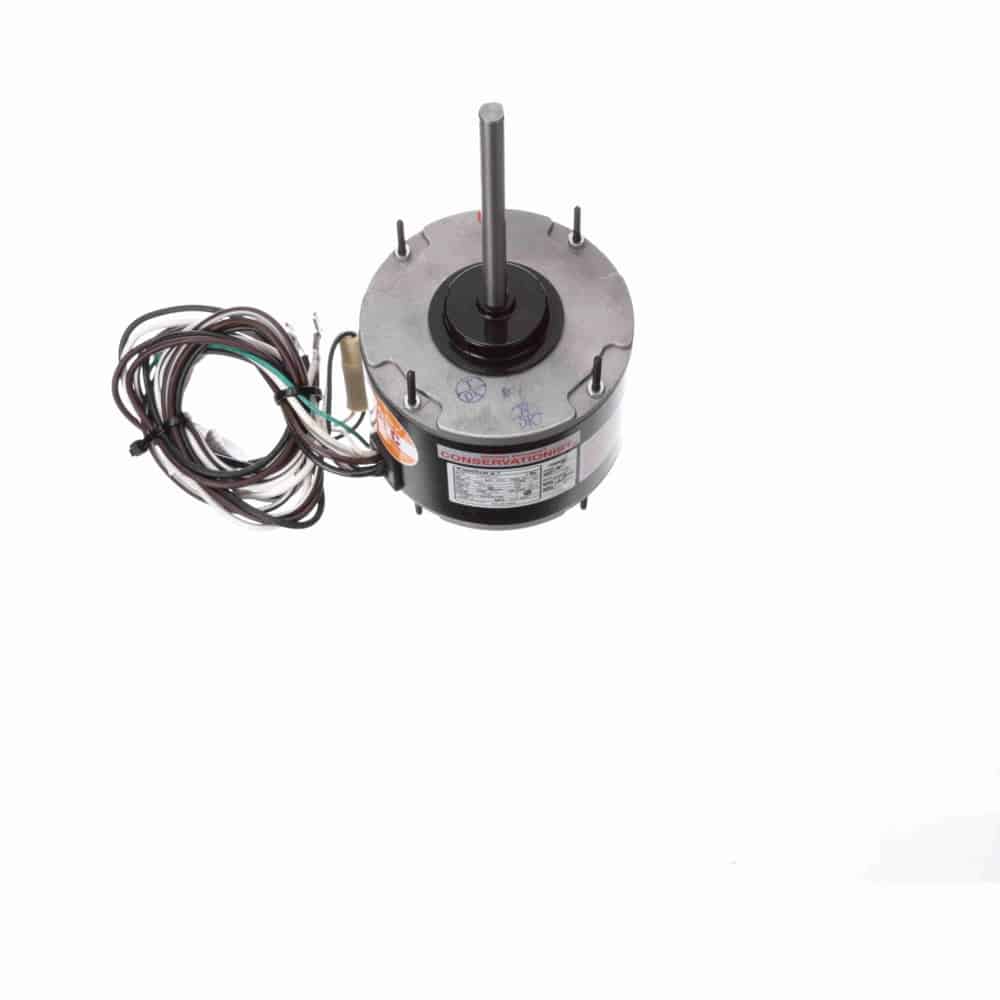

1/6HP PSC 5.6″ TE 1075 208-230V 5uF CF
Mfr # FE1016SF | Wright’s # CEN FE1016SF
1/6HP Condenser Fan Motor, 1 Phase, 48 Frame, 1075 RPM, 1 Speed, Permanent Split Capacitor, 208-230V, TEAO Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Sub-Brand
HEATMASTER®
Mfr #
FE1016SF
Wright's #
CEN FE1016SF
Country of Origin
MEX
Specifications
C Dim
11.37"
Electrical Type
Permanent Split Capacitor
Enclosure
TEAO
Frame
48
Frequency
60 Hz
HP
0.17 HP
HP2
1/6 HP
Insulation Class
F
kW
0.13kW
Material
Rolled Steel
Max Ambient
70°C
Number of Poles
6
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
1.4
Rated Voltage
208-230
Rotation
Reversible
RPM
1075
Service Factor
1
Shaft Diameter
0.5"
Speed
1075
Starting Method
Description
HeatMaster – Condenser Fan – Heat Pump – Refrigeration Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Totally Enclosed Air Over
Class F Insulation, 70°C Ambient
Ball Bearing
1/2″ Diameter Shaft with Double FlatИ” Leads
Extended Studs Shaft and Lead End, Mounting Holes in Shell, Belly Band Mount (Belly Band Not Included)
1/6HP Condenser Fan Motor, 1 Phase, 48 Frame, 1075 RPM, 1 Speed, Permanent Split Capacitor, 208-230V, TEAO Enclosure
