Century

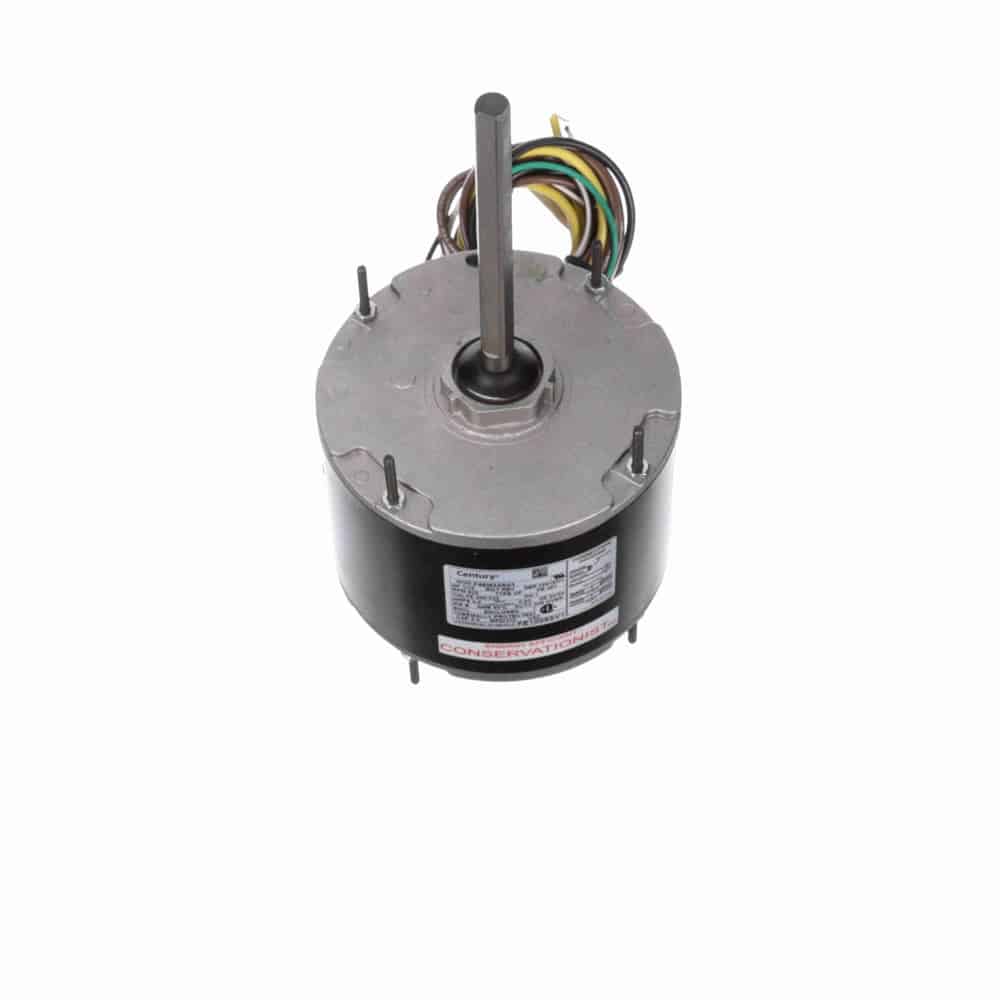

1/10HP PSC 48Y TE 825 208-230V 5uF CF
Mfr # FE1008SV1 | Wright’s # CEN FE1008SV1
1/10HP Condenser Fan Motor, 1 Phase, 48Y Frame, 825 RPM, 1 Speed, Permanent Split Capacitor, 208-230V, TEAO Enclosure
$207.89
Product Information
Brand
Century
Mfr #
FE1008SV1
Wright's #
CEN FE1008SV1
Country of Origin
CHN
Specifications
Electrical Type
Permanent Split Capacitor
Enclosure
TEAO
Frame
48Y
Frequency
60/50 Hz
HP
0.1 HP
HP2
1/10 HP
Insulation Class
B
kW
0.07kW
Material
Rolled Steel
Max Ambient
60°C
Number of Poles
8
Number of Speeds
1
Overload Protection
Thermally Protected
Phase
1
Rated Current
0.6
Rated Voltage
208-230
Rotation
Reversible
RPM
825
Service Factor
1
Shaft Diameter
0.5"
Speed
825
Starting Method
