Century

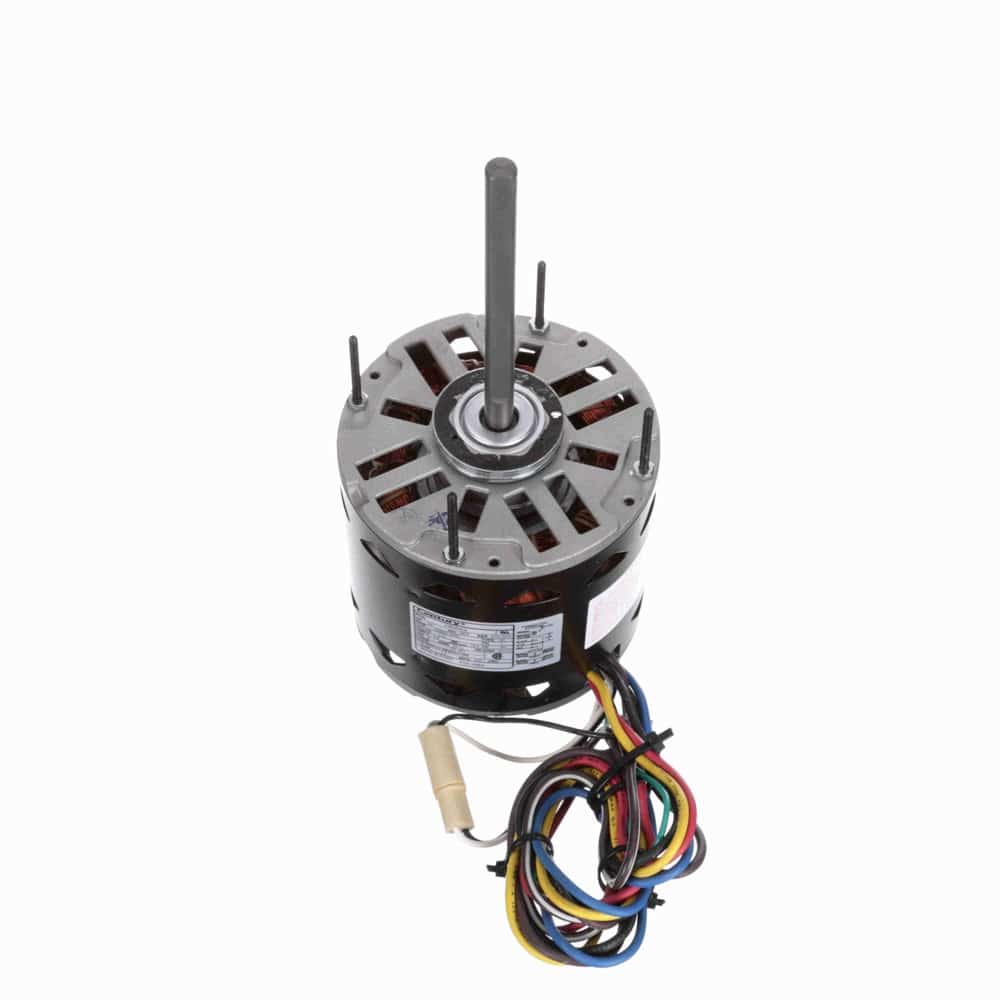

1/2HP PSC 48Y ODP 3spd 1625 115V 15uF BM
Mfr # FDL1054 | Wright’s # CEN FDL1054
1/2HP Fan & Blower Motor, 1 Phase, 48Y Frame, 1625 RPM, 3 Speed, Permanent Split Capacitor, 115V, ODP Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
FDL1054
Wright's #
CEN FDL1054
Country of Origin
IND
Specifications
C Dim
11.55"
Electrical Type
Permanent Split Capacitor
Enclosure
ODP
Frame
48Y
Frequency
60 Hz
HP
0.5 HP
HP2
1/2 HP
Insulation Class
A
kW
0.37kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
4
Number of Speeds
3
Overload Protection
Automatic
Phase
1
Rated Current
7.6
Rated Voltage
115
Rotation
Reversible
RPM
1625
Service Factor
1
Shaft Diameter
0.5"
Speed
1625
Starting Method
Description
Direct Drive Fan & Blower Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 15 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Open Air Over
Class A Insulation, 40°C Ambient
Design Upgrade, Converting From Sleeve Bearing to Ball Bearing
1/2″ Diameter Shaft with FlatЂ” Leads
Extended Studs Shaft End, Resilient Ring Mounting, Belly Band Mounting (Belly Band Not Included)
1/2HP Fan & Blower Motor, 1 Phase, 48Y Frame, 1625 RPM, 3 Speed, Permanent Split Capacitor, 115V, ODP Enclosure
