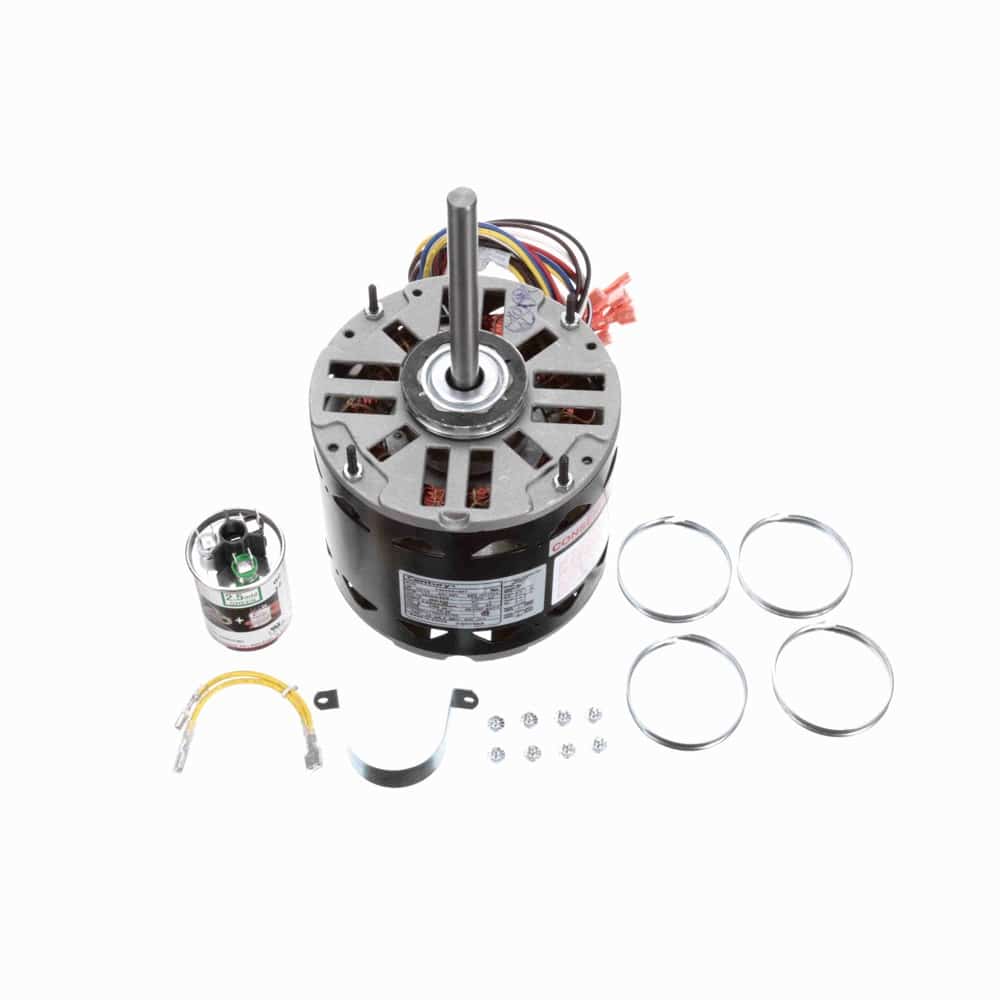

1/2HP PSC 5.6" ODP 4spd 1075 208-230V 5uF-inc BM
Century

1/2HP PSC 5.6″ ODP 4spd 1075 208-230V 5uF-inc BM

Mfr # FD6000A | Wright’s # CEN FD6000A

1/2-1/6HP Fan & Blower Motor, 1 Phase, 48 Frame, 1075 RPM, 4 Speed, Permanent Split Capacitor, 208-230V, ODP Enclosure

Contact Us For Pricing

Product Information

Brand Century
Sub-Brand MASTERFIT PRO®
Mfr # FD6000A
Wright's # CEN FD6000A
Country of Origin MEX

Specifications

C Dim 10.36"
Electrical Type Permanent Split Capacitor
Enclosure ODP
Frame 48
Frequency 60 Hz
HP 0.5 HP
HP2 1/2-1/6 HP
Insulation Class B
kW 0.37kW
Material Rolled Steel
Max Ambient 40°C
Number of Poles 6
Number of Speeds 4
Overload Protection Automatic
Phase 1
Rated Current 3.9
Rated Voltage 208-230
Rotation Reversible
RPM 1075
Service Factor 1
Shaft Diameter 0.5"
Speed 1075
Starting Method

Description

MasterFit Pro – Direct Drive Fan & Blower Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 10 or 5 Mfd-370 Volts (Supplied with Motor)
Thermally Protected
Open Air Over
Class B Insulation, 40°C Ambient
Design Upgrade, Converting From Sleeve Bearing to Ball Bearing
1/2″ Diameter Shaft with FlatЌ” Leads with Quick Connect Terminals
Extended Studs Shaft End, Resilient Ring Mounting, Mounting Holes in Shell, Belly Band Mount (Belly Band Not Included)

1/2-1/6HP Fan & Blower Motor, 1 Phase, 48 Frame, 1075 RPM, 4 Speed, Permanent Split Capacitor, 208-230V, ODP Enclosure
