Century

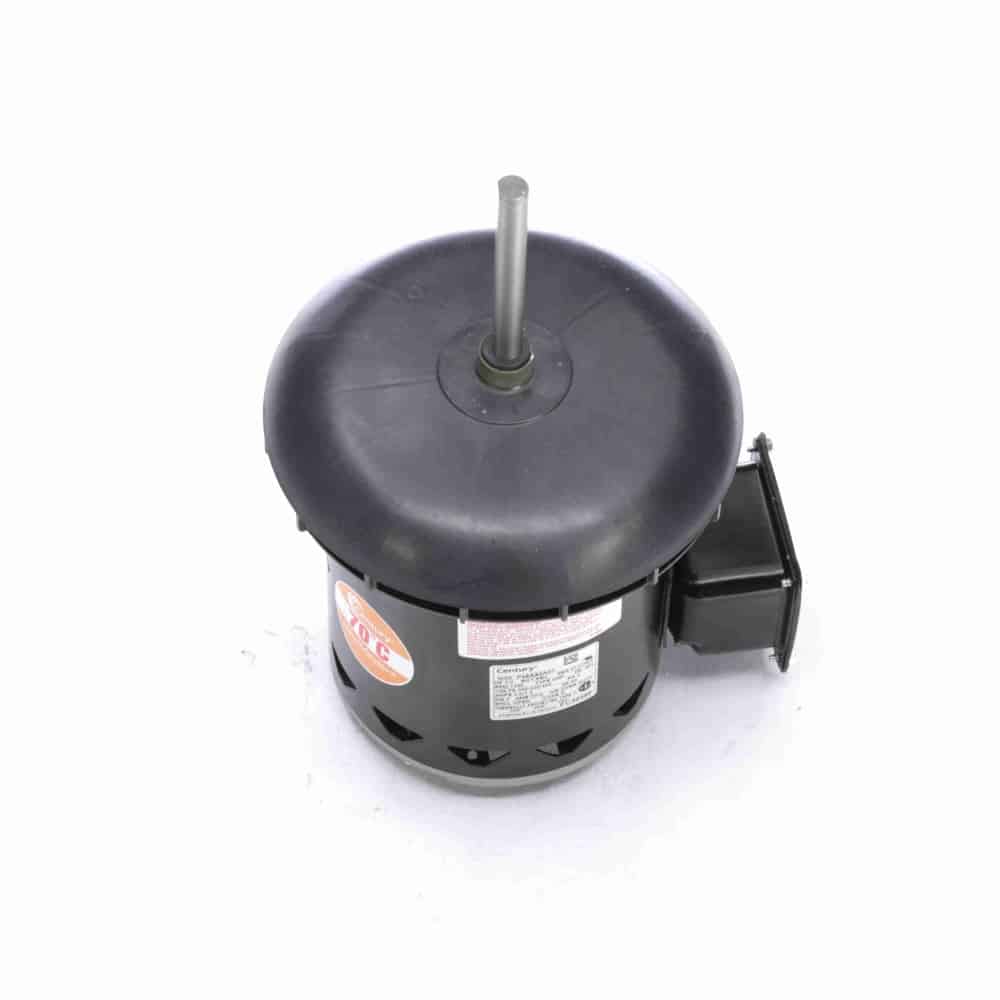

1/2HP 3PH 48Y OAO 1200 200-230/460V CF
Mfr # FC3056F | Wright’s # CEN FC3056F
1/2HP Condenser Fan Motor, 3 Phase, 48Y Frame, 1140 RPM, 1 Speed, Three Phase, 200-230/460V, OAO Enclosure
$466.23
Product Information
Brand Century
Sub-Brand HEATMASTER®
Mfr # FC3056F
Wright's # CEN FC3056F
Country of Origin MEX
Specifications
C Dim 12.68"
Electrical Type Three Phase
Enclosure OAO
Frame 48Y
Frequency 60 Hz
HP 0.5 HP
HP2 1/2 HP
Insulation Class F
kW 0.37kW
Material Rolled Steel
Max Ambient 70°C
Number of Poles 6
Number of Speeds 1
Overload Protection Automatic
Phase 3
Rated Current 3.0/1.5
Rated Voltage 200-230/460
Rotation Reversible
RPM 1140
Service Factor 1
Shaft Diameter 0.5"
Speed 1200
Starting Method
