Century

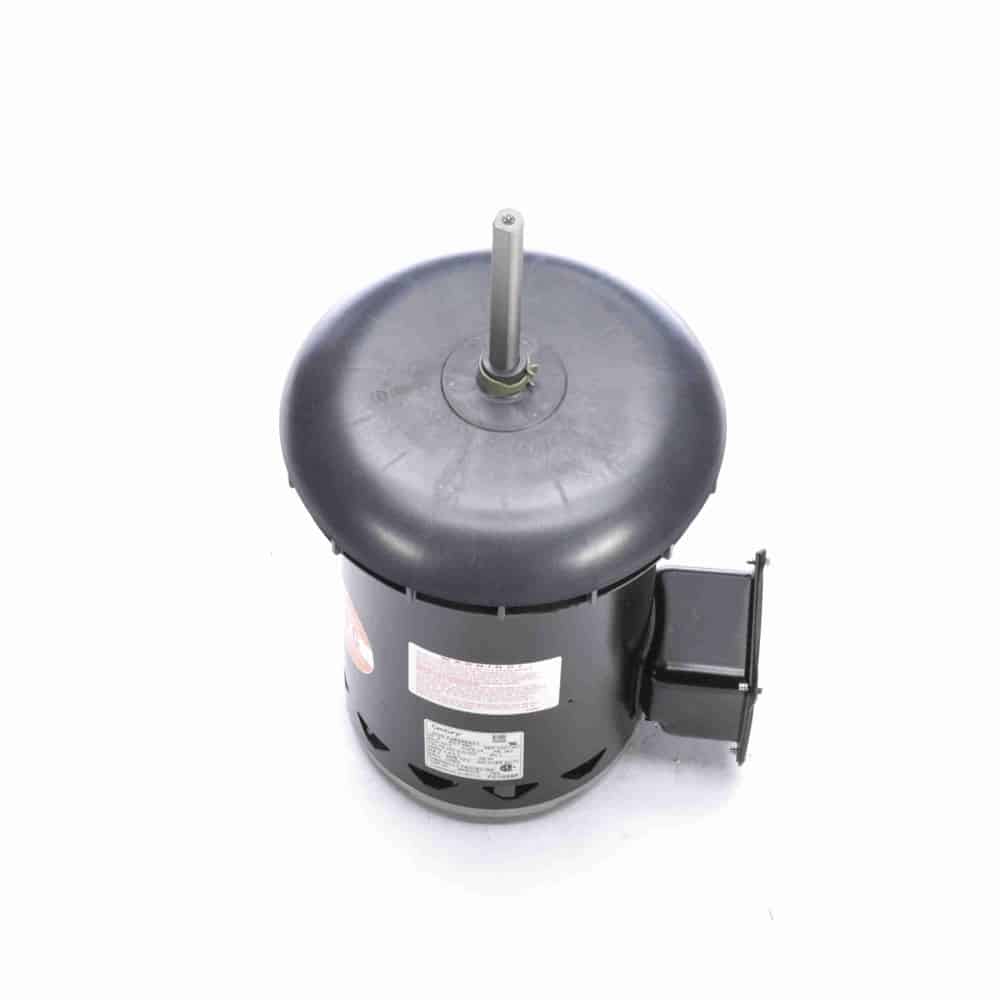

0.8HP PSC 48Y ODP 1075 200-230/460V 20uF CF
Mfr # FC1086F | Wright’s # CEN FC1086F
0.8HP Condenser Fan Motor, 1 Phase, 48Y Frame, 1075 RPM, 1 Speed, Permanent Split Capacitor, 200-230/460V, ODP Enclosure
$497.97
Product Information
Brand
Century
Sub-Brand
HEATMASTER®
Mfr #
FC1086F
Wright's #
CEN FC1086F
Country of Origin
MEX
Specifications
C Dim
14.23"
Electrical Type
Permanent Split Capacitor
Enclosure
ODP
Frame
48Y
Frequency
60 Hz
HP
0.8 HP
HP2
0.8 HP
Insulation Class
F
kW
0.6kW
Material
Rolled Steel
Max Ambient
70°C
Number of Poles
6
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
4.6/2.3
Rated Voltage
200-230/460
Rotation
Reversible
RPM
1075
Service Factor
1
Shaft Diameter
0.5"
Speed
1075
Starting Method
Description
HeatMaster – Commercial Condenser Fan Motor – Fan Canopy
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 20 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Open Air Over
Class F Insulation, 70°C Ambient
Ball Bearing
1/2″ Diameter Shaft with Double Flat, Supplied with 5/8″ adapter and Key
Conduit Box
Vertical Shaft Up, Belly Band Mount (Belly Band Not Included)
0.8HP Condenser Fan Motor, 1 Phase, 48Y Frame, 1075 RPM, 1 Speed, Permanent Split Capacitor, 200-230/460V, ODP Enclosure
