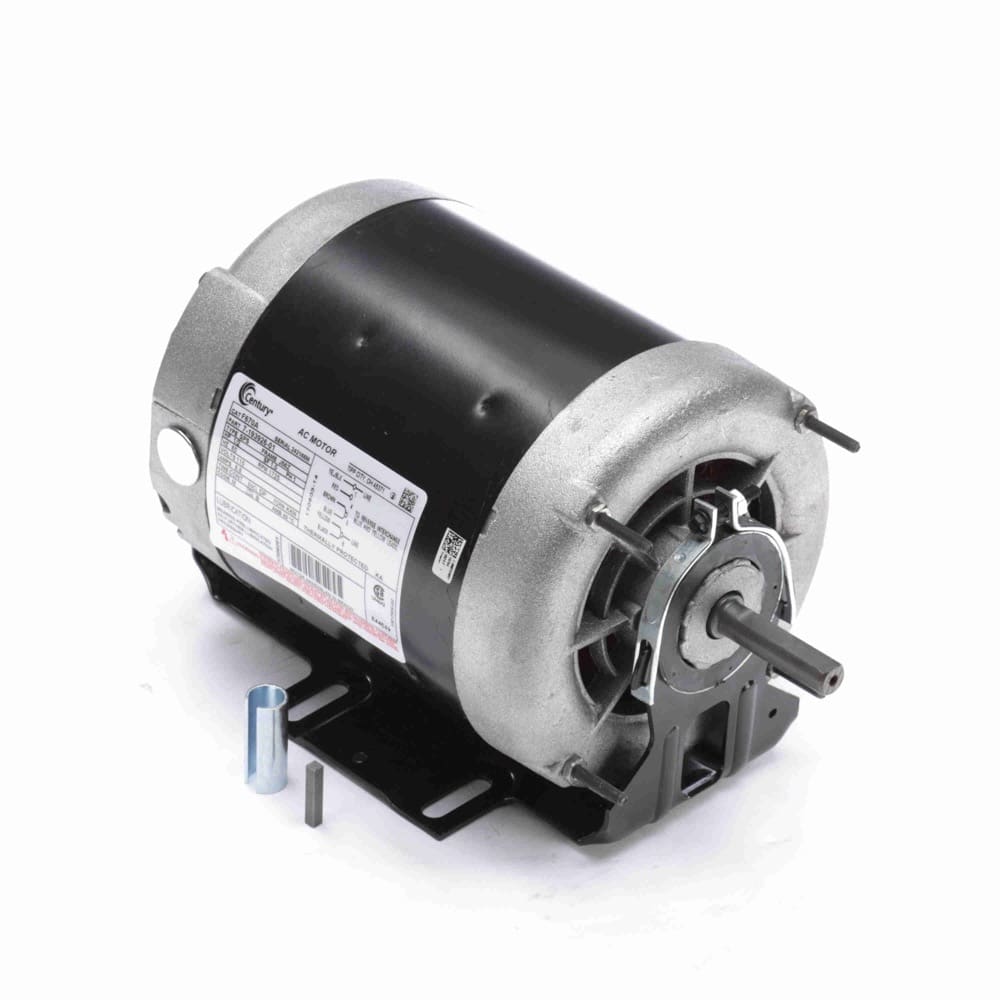

1/2HP 1PH 56 ODP 1725 115V BM
Century

1/2HP 1PH 56 ODP 1725 115V BM

Mfr # F671 | Wright’s # CEN F671

1/2HP Fan & Blower Motor, 1 Phase, 56 Frame, 1725 RPM, 1 Speed, Split Phase, Induction Run, Special Service, Multi-Speed, Single Voltage, 115V, ODP Enclosure

$383.02

Product Information

Brand Century
Mfr # F671
Wright's # CEN F671
Country of Origin MEX

Specifications

C Dim 11.13"
Electrical Type Split Phase, Induction Run, Special Service, Multi-Speed, Single Voltage
Enclosure ODP
Frame 56
Frequency 60 Hz
HP 0.5 HP
HP2 1/2 HP
Insulation Class B
kW 0.37kW
Material Rolled Steel
Max Ambient 40°C
Number of Poles 4
Number of Speeds 1
Overload Protection No Protection
Phase 1
Rated Current 6.8
Rated Voltage 115
Rotation Reversible Counterclockwise
RPM 1725
Service Factor 1
Shaft Diameter 0.625"
Speed 1725
Starting Method

Description

Automatic reset thermal protector prevents overheating.
Patented MAXGuard® insulation system offers superior protection for use with a variable frequency drive.
Permanently lubricated, double-sealed bearings extend the lifetime of the motor.
Ambient temperature up to 70°C allows for consistent operation in a range of environments and applications.
Vertical/horizontal mounting for proper placement of the fan within airflow.

1/2HP Fan & Blower Motor, 1 Phase, 56 Frame, 1725 RPM, 1 Speed, Split Phase, Induction Run, Special Service, Multi-Speed, Single Voltage, 115V, ODP Enclosure

Documents

Data Sheet
