Century

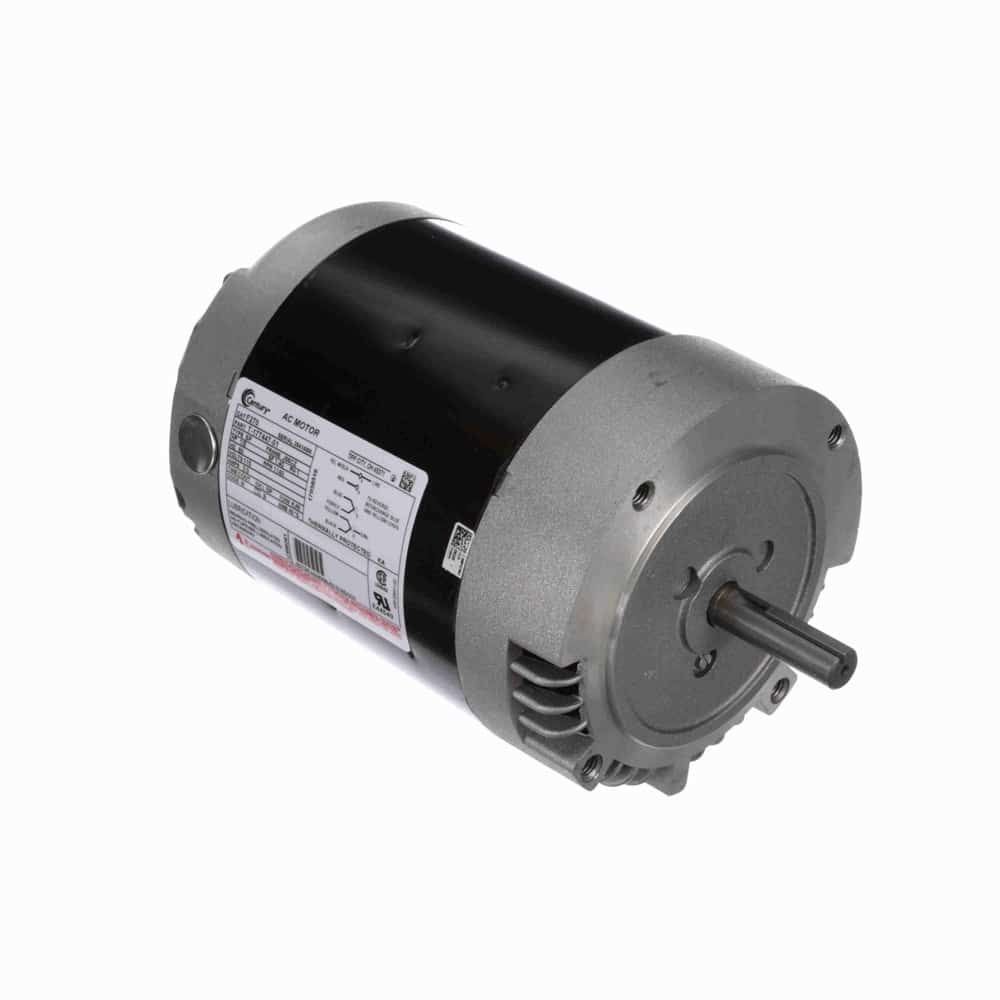

1/8HP 1PH 56CZ ODP 1140 115V
Mfr # F270 | Wright’s # CEN F270
1/8HP Ventilation Motor, 1 Phase, 56CZ Frame, 1140 RPM, 1 Speed, Split Phase, Induction Run, Single Or Dual Voltage, 115V, ODP Enclosure
$386.91
Product Information
Brand
Century
Mfr #
F270
Wright's #
CEN F270
Country of Origin
MEX
Specifications
C Dim
11.25"
Electrical Type
Split Phase, Induction Run, Single Or Dual Voltage
Enclosure
ODP
Frame
56CZ
Frequency
60 Hz
HP
0.13 HP
HP2
1/8 HP
Insulation Class
B
kW
0.1kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
6
Number of Speeds
1
Overload Protection
Thermally Protected
Phase
1
Rated Current
3
Rated Voltage
115
Rotation
Reversible Counterclockwise
RPM
1140
Service Factor
1.4
Shaft Diameter
0.625"
Speed
1140
Starting Method
Description
2-1/4 x 5/8 shaft dimensions
Single speed
1/8HP Ventilation Motor, 1 Phase, 56CZ Frame, 1140 RPM, 1 Speed, Split Phase, Induction Run, Single Or Dual Voltage, 115V, ODP Enclosure
