Century
1/3HP 1PH 56Z 4P ODP 1725 100-115/200-230V AOL OVEN
Mfr # F267V1 | Wright’s # CEN F267V1

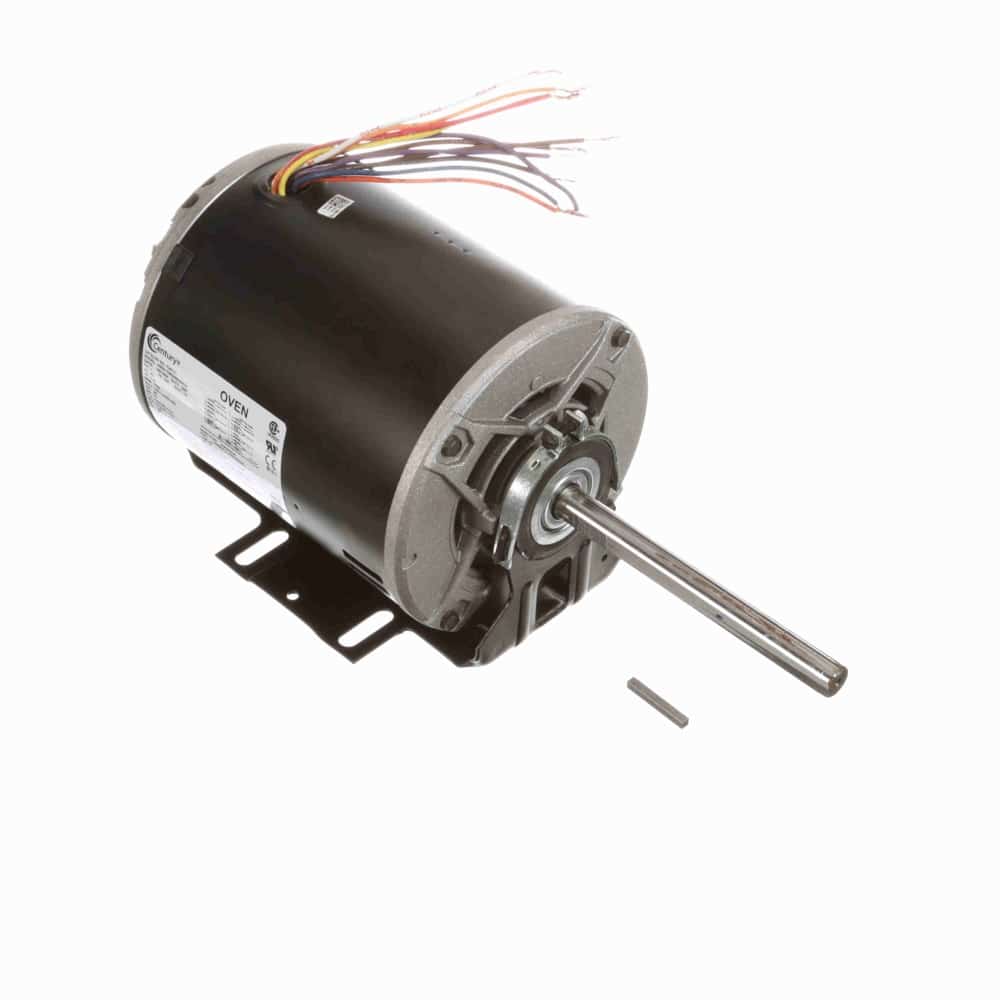

1/3HP Convection Oven Motor, 1 Phase, 56Z Frame, 1725 RPM, 1 Speed, Split Phase, 100-115/200-230V, ODP Enclosure
$598.92
Product Information
Brand
Century
Mfr #
F267V1
Wright's #
CEN F267V1
Country of Origin
MEX
Specifications
C Dim
15.01"
Electrical Type
Split Phase
Enclosure
ODP
Full Load Efficiency
70
Frame
56Z
Frequency
60 Hz
HP
0.33 HP
HP2
1/3 HP
Insulation Class
B
kW
0.25kW
Material
Rolled Steel
Max Ambient
60°C
Number of Poles
4
Number of Speeds
1
Overload Protection
Thermally Protected
Phase
1
Rated Current
4.8-4.8/2.4-2.4
Rated Voltage
100-115/200-230
Rotation
Selective Counterclockwise
RPM
1725
Service Factor
1.35
Shaft Diameter
0.625"
Speed
1725
Starting Method
Description
Double sealed ball bearings
Automatic reset overload protector
Proofing switch included
Operational at 100-115/200-230 V @60HZ. Nameplate image may vary from actual product.
1/3HP Convection Oven Motor, 1 Phase, 56Z Frame, 1725 RPM, 1 Speed, Split Phase, 100-115/200-230V, ODP Enclosure
