Century
1/3HP 1PH 56Y 4P ODP 1725 100-115/200-230V AOL OVEN
Mfr # F266 | Wright’s # CEN F266

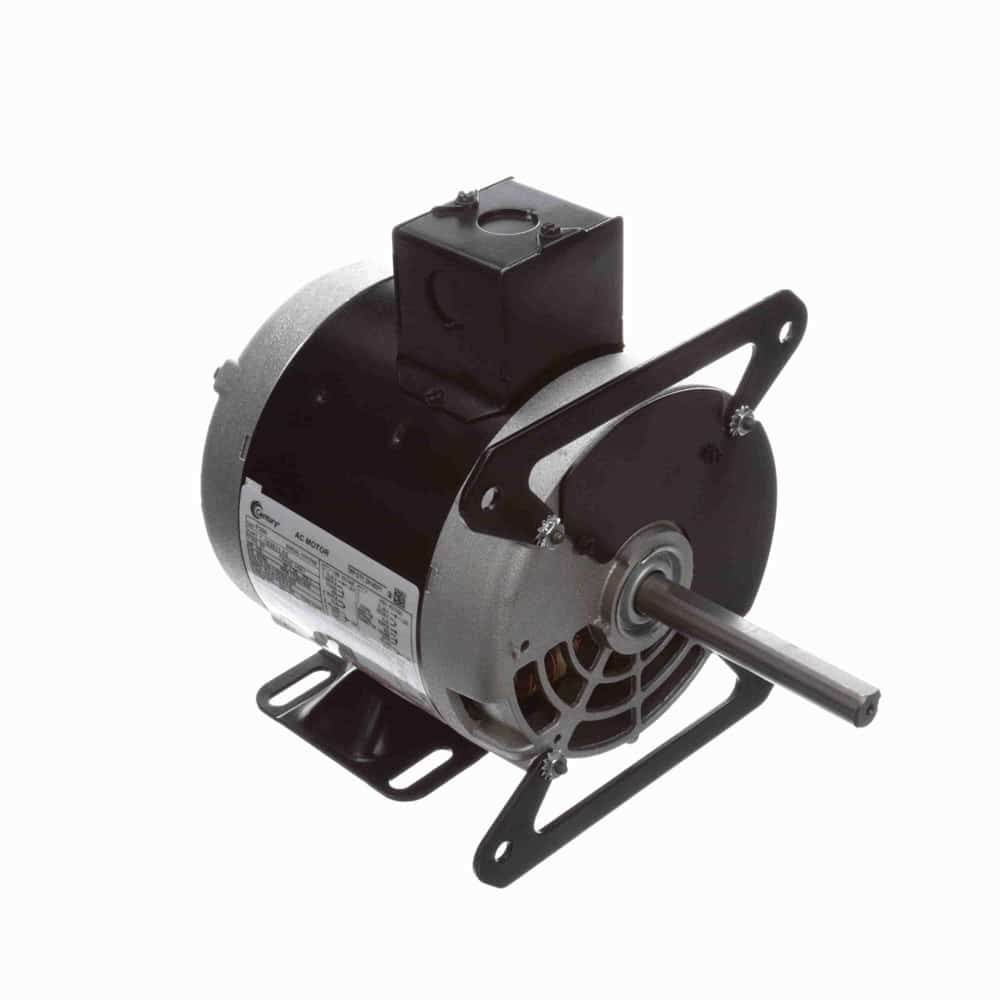

1/3HP Convection Oven Motor, 1 Phase, 56Y Frame, 1725 RPM, 1 Speed, Split Phase, Induction Run, Single Or Dual Voltage, 100-115/200-230V, ODP Enclosure
$577.98
Product Information
Brand
Century
Mfr #
F266
Wright's #
CEN F266
Country of Origin
MEX
Specifications
C Dim
11.62"
Electrical Type
Split Phase, Induction Run, Single Or Dual Voltage
Enclosure
ODP
Frame
56Y
Frequency
60 Hz
HP
0.33 HP
HP2
1/3 HP
Insulation Class
B
kW
0.25kW
Material
Rolled Steel
Max Ambient
60°C
Number of Poles
4
Number of Speeds
1
Overload Protection
Thermally Protected
Phase
1
Rated Current
5.0-5.2/2.5-2.6
Rated Voltage
100-115/200-230
Rotation
Reversible Clockwise
RPM
1725
Service Factor
1.35
Shaft Diameter
0.625"
Speed
1725/1425
Starting Method
Description
Double sealed ball bearings
Automatic reset overload protector
Proofing switch included
1/3HP Convection Oven Motor, 1 Phase, 56Y Frame, 1725 RPM, 1 Speed, Split Phase, Induction Run, Single Or Dual Voltage, 100-115/200-230V, ODP Enclosure
