Century

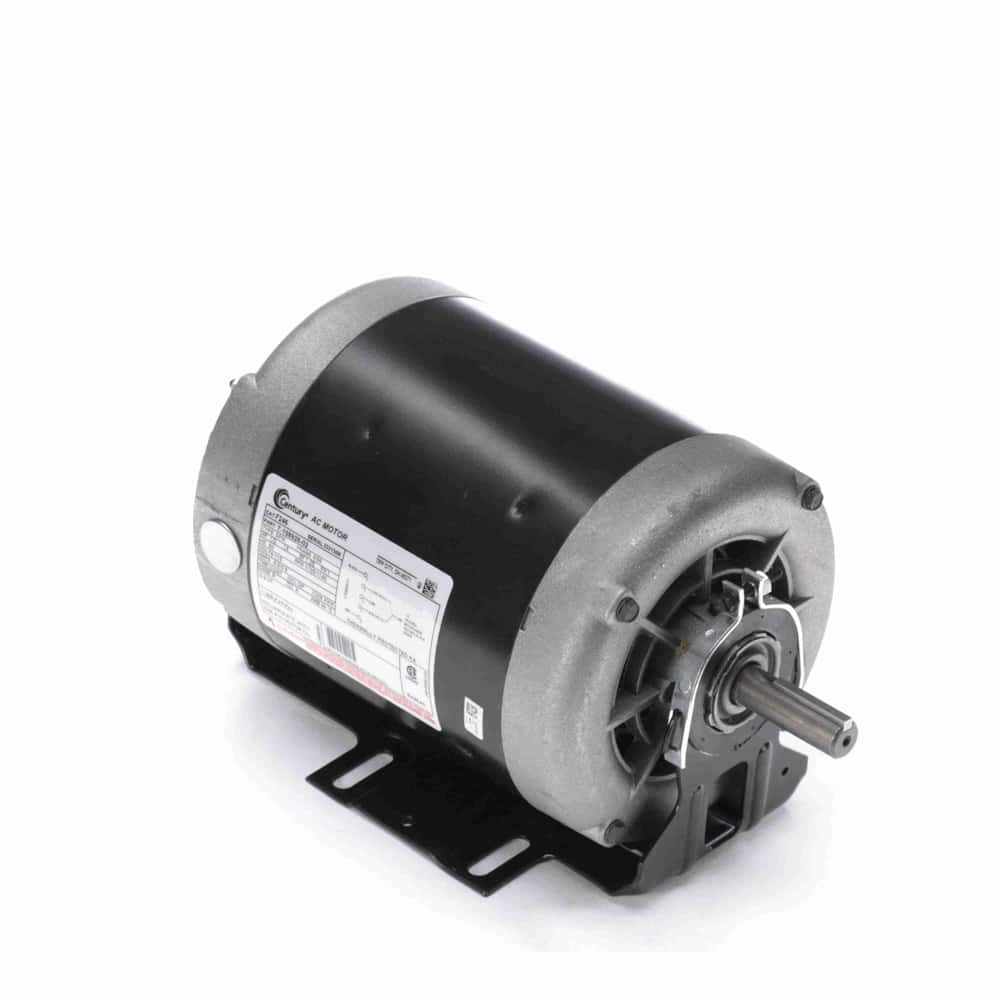

1/2HP 1PH 56 ODP 2spd 1725 115V BM
Mfr # F246 | Wright’s # CEN F246
1/2-.14HP Fan & Blower Motor, 1 Phase, 56 Frame, 1725 RPM, 2 Speed, Split Phase, Induction Run, Multi-Speed, 115V, ODP Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
F246
Wright's #
CEN F246
Country of Origin
MEX
Specifications
C Dim
11.49"
Electrical Type
Split Phase, Induction Run, Multi-Speed
Enclosure
ODP
Frame
56
Frequency
60 Hz
HP
0.5 HP
HP2
1/2-.14 HP
Insulation Class
A
kW
0.37kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
4/6
Number of Speeds
2
Overload Protection
Thermally Protected
Phase
1
Rated Current
6.8/3.8
Rated Voltage
115
Rotation
Reversible Counterclockwise
RPM
1725
Service Factor
1.25
Shaft Diameter
0.625"
Speed
1725/1140
Starting Method
Description
UL recognized component listing and CSA certification ensures the product is safe for use.
Double-shielded bearings extend the service life of the motor.
Automatic reset thermal protector (as noted) protects against overload.
Moderate starting torque helps reduce fan stresses.
1/2-.14HP Fan & Blower Motor, 1 Phase, 56 Frame, 1725 RPM, 2 Speed, Split Phase, Induction Run, Multi-Speed, 115V, ODP Enclosure
