Century
3/4HP PSC 48Y TE 1075 208-230V 5uF CF
Mfr # F1076SV1 | Wright’s # CEN F1076SV1

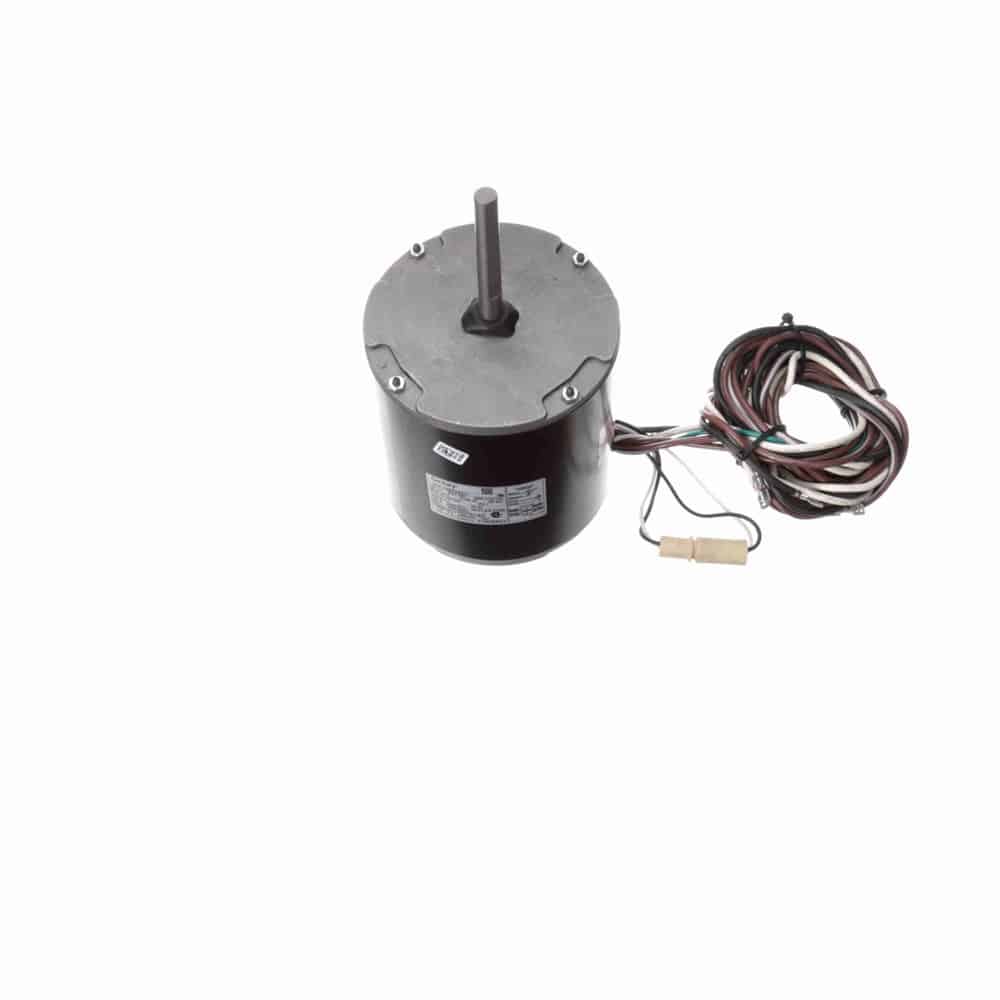

3/4HP Condenser Fan Motor, 1 Phase, 48Y Frame, 1075 RPM, 1 Speed, Permanent Split Capacitor, 208-230V, TEAO Enclosure
$232.12
Product Information
Brand
Century
Mfr #
F1076SV1
Wright's #
CEN F1076SV1
Country of Origin
IND
Specifications
C Dim
9.99"
Electrical Type
Permanent Split Capacitor
Enclosure
TEAO
Frame
48Y
Frequency
60 Hz
HP
0.75 HP
HP2
3/4 HP
Insulation Class
B
kW
0.56kW
Material
Rolled Steel
Max Ambient
60°C
Number of Poles
6
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
5.3
Rated Voltage
208-230
Rotation
Reversible
RPM
1075
Service Factor
1
Shaft Diameter
0.5"
Speed
1075
Starting Method
Description
Condenser Fan – Heat Pump – Refrigeration Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 12.5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Enclosed, Except Open Lead End End-Frame Air Over
Class B Insulation, 60°C Ambient
Ball Bearing
1/2″ Diameter Shaft with Flatш” Leads with Quick Connect Terminals
Mount Vertical Shaft Up
3/4HP Condenser Fan Motor, 1 Phase, 48Y Frame, 1075 RPM, 1 Speed, Permanent Split Capacitor, 208-230V, TEAO Enclosure
