1/3HP PSC 48Y ODP 1075 208-230V 5uF CF
Century

1/3HP PSC 48Y ODP 1075 208-230V 5uF CF

Mfr # F1036SB | Wright’s # CEN F1036SB

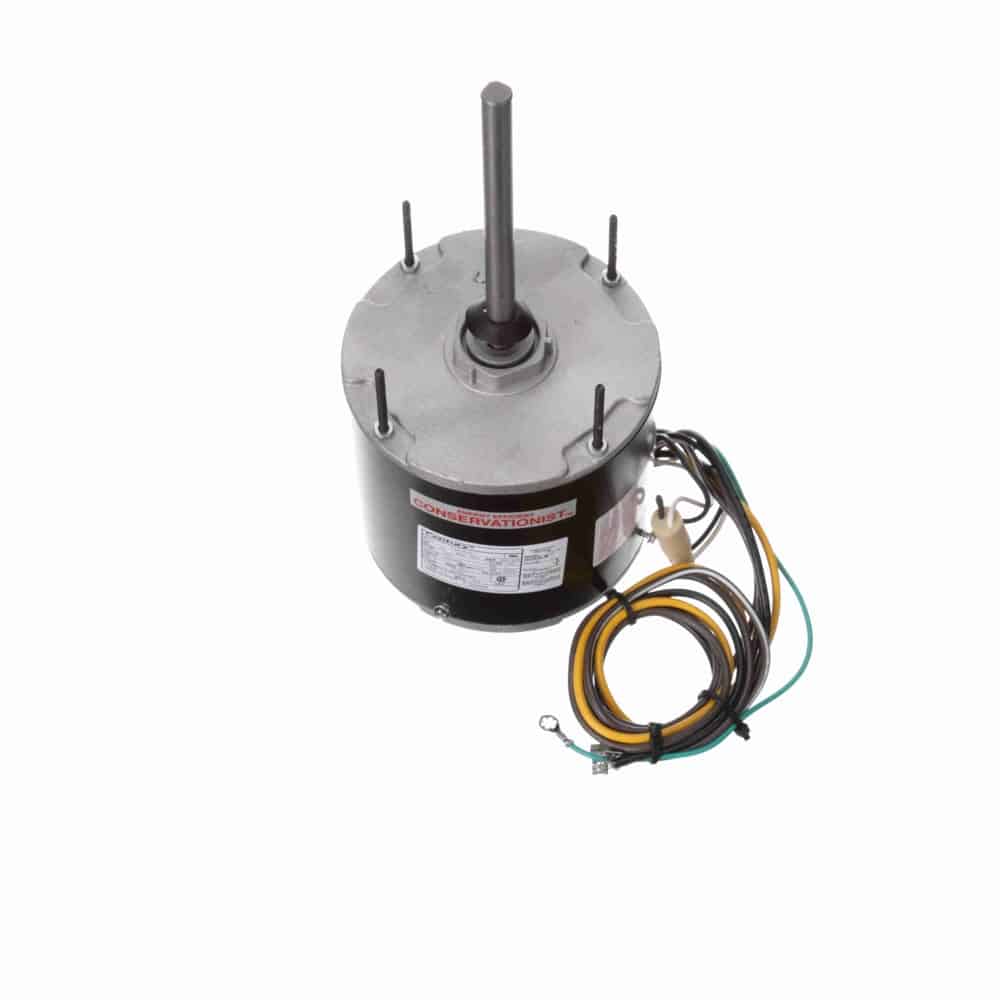

1/3HP Condenser Fan Motor, 1 Phase, 48Y Frame, 1075 RPM, 1 Speed, Permanent Split Capacitor, 208-230V, ODP Enclosure

1 in stock

Sign in to access special pricing and availability.
x

$116.69

Product Information

Brand Century
Mfr # F1036SB
Wright's # CEN F1036SB
Country of Origin MEX

Specifications

C Dim 11.98"
Electrical Type Permanent Split Capacitor
Enclosure ODP
Frame 48Y
Frequency 60 Hz
HP 0.33 HP
HP2 1/3 HP
Insulation Class B
kW 0.25kW
Material Rolled Steel
Max Ambient 60°C
Number of Poles 6
Number of Speeds 1
Overload Protection Automatic
Phase 1
Rated Current 1.7
Rated Voltage 208-230
Rotation Reversible
RPM 1075
Service Factor 1
Shaft Diameter 0.5"
Speed 1075
Starting Method

Description

Condenser Fan – Heat Pump – Refrigeration Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Enclosed, Except Open Lead End End-Frame Air Over
Class B Insulation, 60°C Ambient
Ball Bearing
1/2″ Diameter Shaft with FlatЃ” Leads
Extended Studs Shaft End, Hex Mounting Hub on Both Ends for Resilient Base Mounting (Resilient Rings Not Included), Mounting Holes in Shell, Belly Band Mount (Belly Band Not Included)

1/3HP Condenser Fan Motor, 1 Phase, 48Y Frame, 1075 RPM, 1 Speed, Permanent Split Capacitor, 208-230V, ODP Enclosure

Documents

Data Sheet
