Century

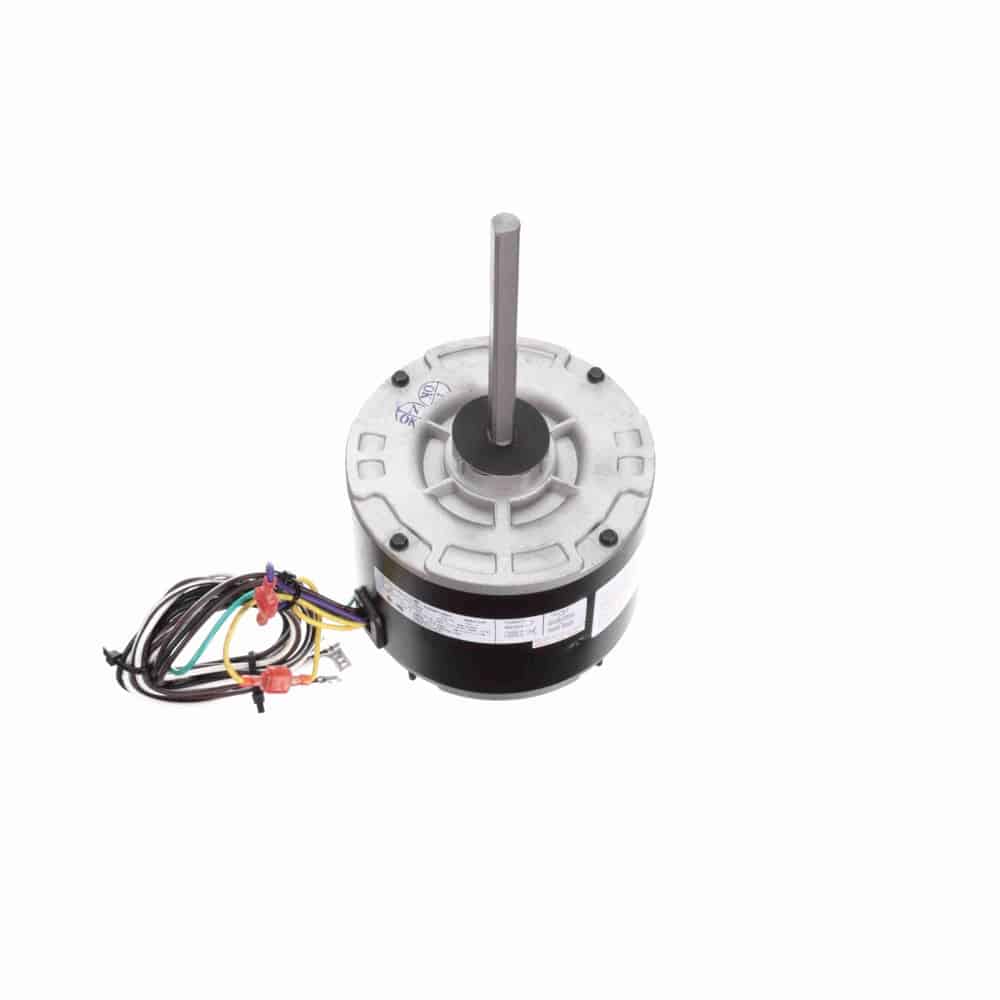

1/4HP PSC 48Y TE 1075 208-230V 5uF CF

Mfr # EM3728F | Wright’s # CEN EM3728F

1/4HP Condenser Fan Motor, 1 Phase, 48Y Frame, 1075 RPM, 1 Speed, Permanent Split Capacitor, 208-230V, TEAO Enclosure

$83.92

Product Information

Brand Century
Sub-Brand PRO-E SERIES®
Mfr # EM3728F
Wright's # CEN EM3728F
Country of Origin MEX

Specifications

C Dim 10.67"
Electrical Type Permanent Split Capacitor
Enclosure TEAO
Frame 48Y
Frequency 60 Hz
HP 0.25 HP
HP2 1/4 HP
Insulation Class F
kW 0.19kW
Material Steel
Max Ambient 70°C
Number of Poles 6
Number of Speeds 1
Overload Protection Automatic
Phase 1
Rated Current 1.8-2.0
Rated Voltage 208-230
Rotation Reversible
RPM 1075
Service Factor 1
Shaft Diameter 0.5"
Speed 1075
Starting Method
