Century

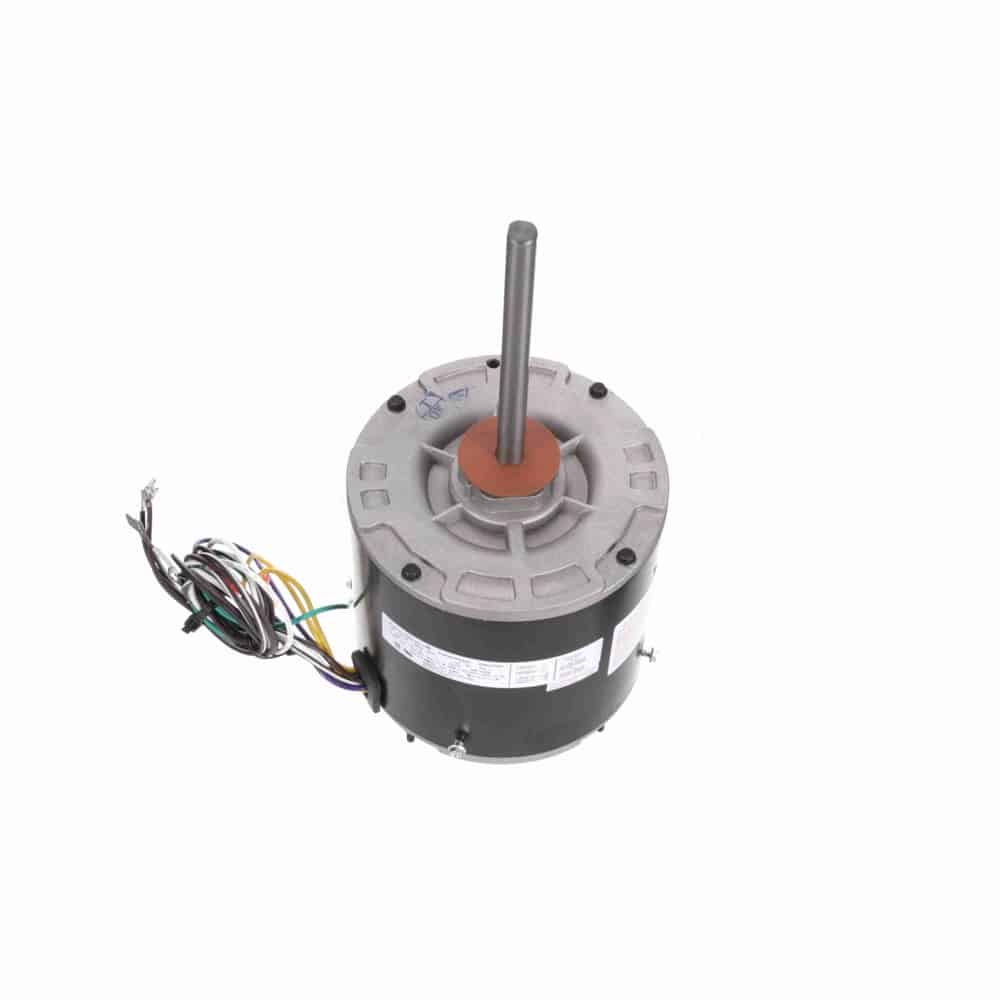

1/3HP PSC 48Y TE 825 460V 7.5uF CF

Mfr # EM3209F | Wright’s # CEN EM3209F

1/3-1/8HP Condenser Fan Motor, 1 Phase, 48Y Frame, 825 RPM, 1 Speed, Permanent Split Capacitor, 460V, TEAO Enclosure

$145.98

Product Information

Brand Century
Sub-Brand PRO-E SERIES®
Mfr # EM3209F
Wright's # CEN EM3209F
Country of Origin IND

Specifications

C Dim 11.8"
Electrical Type Permanent Split Capacitor
Enclosure TEAO
Frame 48Y
Frequency 60 Hz
HP 0.33 HP
HP2 1/3-1/8 HP
Insulation Class F
kW 0.25kW
Material Rolled Steel
Max Ambient 70°C
Number of Poles 8
Number of Speeds 1
Overload Protection Automatic
Phase 1
Rated Current 1
Rated Voltage 460
Rotation Reversible
RPM 825
Service Factor 1
Shaft Diameter 0.5"
Speed 825
Starting Method
