Century
1/4HP PSC 48Y TE 2spd 1625 CCWSE 115V 5uF-inc
Mfr # DSB1024 | Wright’s # CEN DSB1024

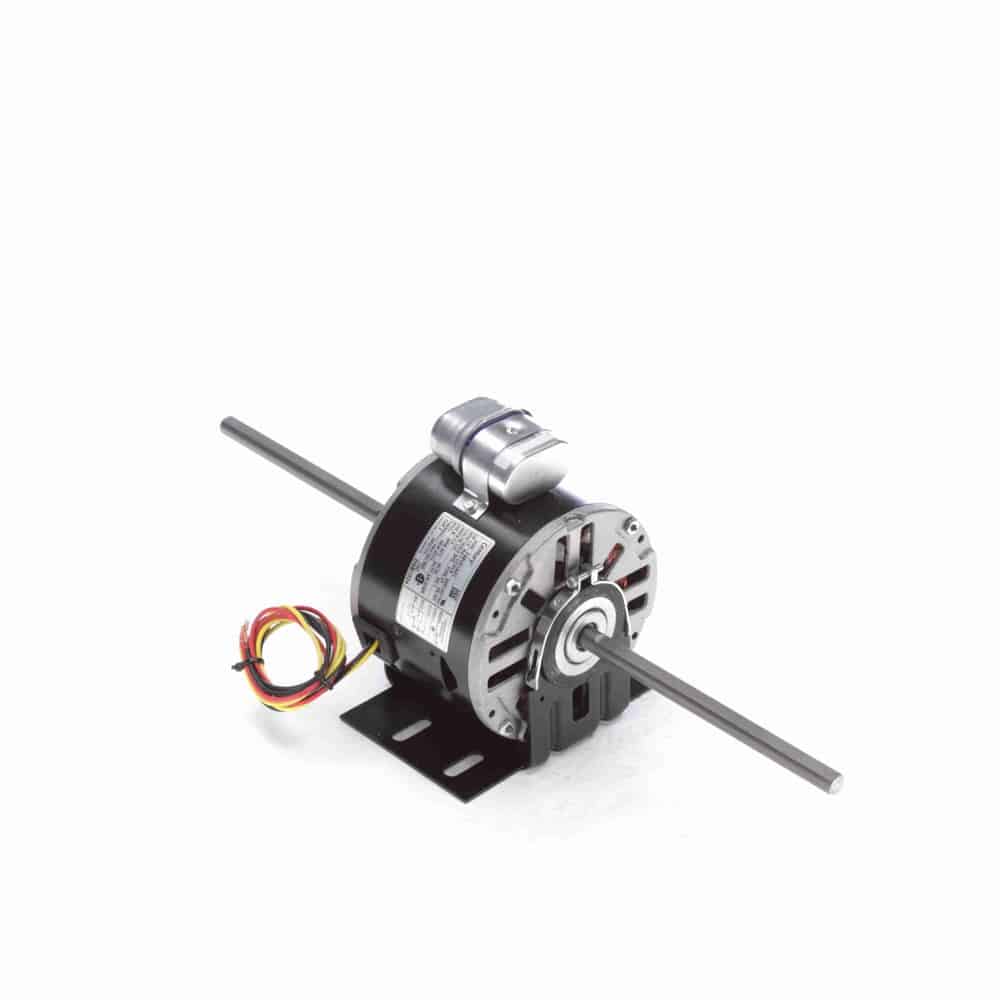

1/4HP Fan Coil & Air Conditioner Motor, 1 Phase, 48Y Frame, 1625 RPM, 2 Speed, Permanent Split Capacitor, 115V, TEAO Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
DSB1024
Wright's #
CEN DSB1024
Country of Origin
MEX
Specifications
C Dim
19.11"
Electrical Type
Permanent Split Capacitor
Enclosure
TEAO
Frame
48Y
Frequency
60 Hz
HP
0.25 HP
HP2
1/4 HP
Insulation Class
B
kW
0.19kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
4
Number of Speeds
2
Overload Protection
Automatic
Phase
1
Rated Current
2.4
Rated Voltage
115
Rotation
Counterclockwise Lead End
RPM
1625
Service Factor
1
Shaft Diameter
0.5"
Speed
1625
Starting Method
Description
Fan Coil – Room Air Conditioner – Blower Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Supplied with Motor)
Thermally Protected
Open Shaft and Lead End End-Frame, Semi-Enclosed Shell, Air Over
Class B Insulation, 40°C Ambient
Design Upgrade, Converting From Sleeve Bearing to Ball Bearing
1/2″ Diameter Double Shaft with FlatЁ” Leads
Resilient Base
1/4HP Fan Coil & Air Conditioner Motor, 1 Phase, 48Y Frame, 1625 RPM, 2 Speed, Permanent Split Capacitor, 115V, OAO Enclosure
