Century
1/10HP ShP 42Y ODP 3spd 1550 CWSE 115V
Mfr # DCL4421 | Wright’s # CEN DCL4421

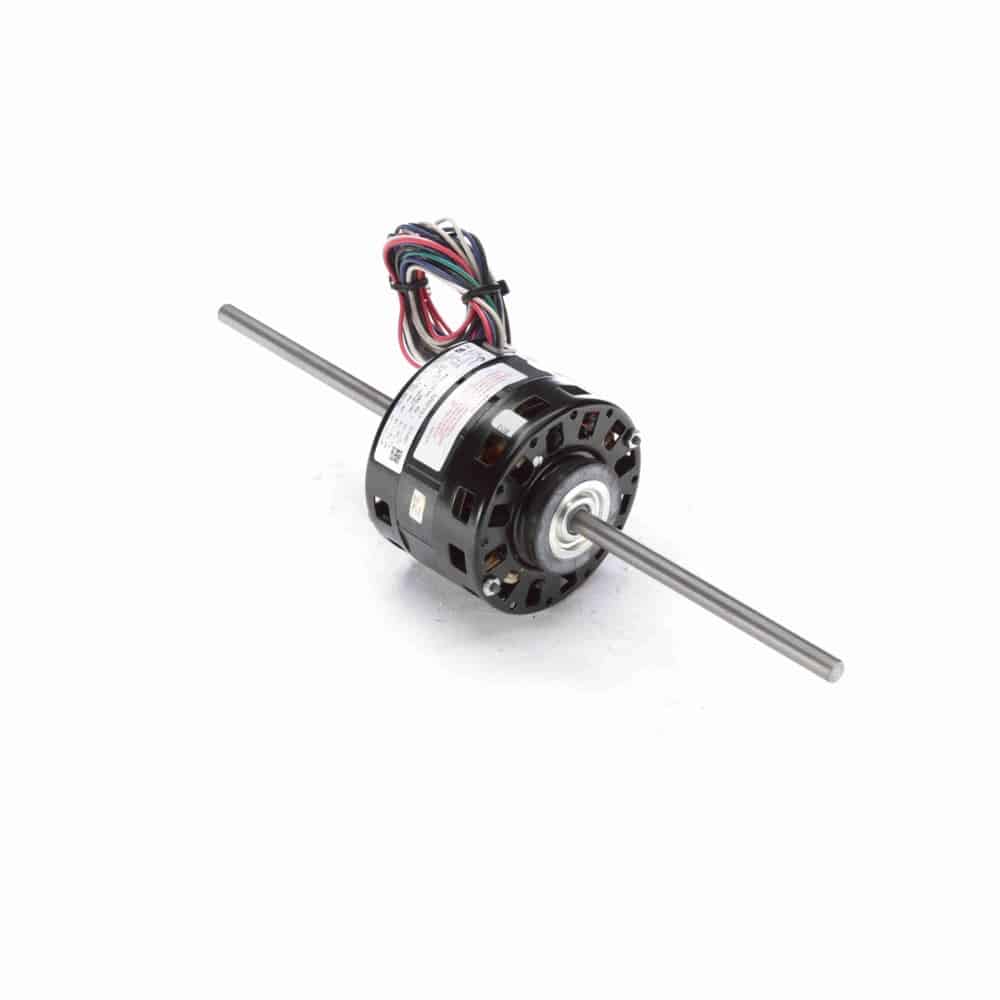

1/10-1/15-1/25HP Fan Coil & Air Conditioner Motor, 1 Phase, 42Y Frame, 1550 RPM, 3 Speed, Shaded Pole, 115V, ODP Enclosure
$263.51
Product Information
Brand
Century
Mfr #
DCL4421
Wright's #
CEN DCL4421
Country of Origin
MEX
Specifications
C Dim
18"
Electrical Type
Shaded Pole
Enclosure
ODP
Frame
42Y
Frequency
60 Hz
HP
0.1 HP
HP2
1/10-1/15-1/25 HP
Insulation Class
B
kW
0.07kW
Max Ambient
40°C
Number of Poles
4
Number of Speeds
3
Overload Protection
Automatic
Phase
1
Rated Current
3.5
Rated Voltage
115
Rotation
Counterclockwise Lead End
RPM
1550
Service Factor
1
Shaft Diameter
0.5"
Speed
1550
Starting Method
Description
Fan Coil – Dual Wheel Blower Motor
5″ Diameter – 42 Frame
Shaded Pole
Thermally Protected
Open Air Over
Class A Insulation, 40°C Ambient
Sleeve Bearing
1/2″ Diameter Double Shaft with Double FlatsЎ.5″ Leads with Quick Connect Terminals
Resilient Base
1/10-1/15-1/25HP Fan Coil & Air Conditioner Motor, 1 Phase, 42Y Frame, 1550 RPM, 3 Speed, Shaded Pole, 115V, ODP Enclosure
