Century

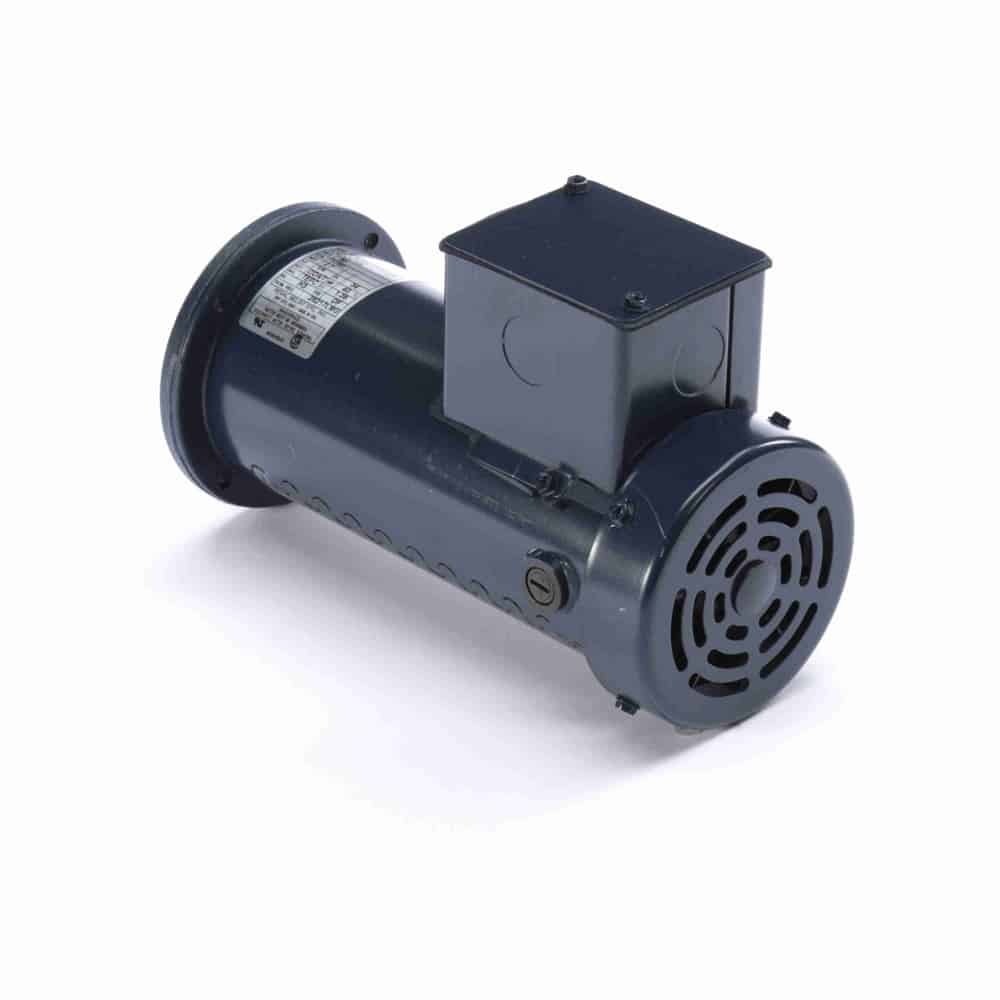

1/4HP PH 34 P TEFC 1750 90V
Mfr # DC105 | Wright’s # CEN DC105
1/4HP Phase, 34 Frame, 1750 RPM, 1 Speed, DC Permanent Magnet, 90V, TEFC Enclosure
Contact Us For Pricing
Product Information
Brand Century
Mfr # DC105
Wright's # CEN DC105
Country of Origin USA
Specifications
C Dim 10.02"
Electrical Type DC Permanent Magnet
Enclosure TEFC
Full Load Efficiency 81.5
Frame 34
HP 0.25 HP
HP2 1/4 HP
Insulation Class H
kW 0.19kW
Material Rolled Steel
Max Ambient 40°C
Number of Speeds 1
Overload Protection No Protection
Rated Current 2.7
Rated Voltage 90
Rotation Reversible
RPM 1750
Service Factor 1
Shaft Diameter 0.5"
Speed 1750
Starting Method
Description
UL and CSA Listed, Meeting NEMA MG1 standards.
Brush holder design provides easy access for motor maintenance.
Permanent magnet design ensures higher motor efficiency.
Permanently lubricated sealed bearings extend the lifetime of the motor.
Compatible with PWM or SCR type controllers.
1/4HP Phase, 34 Frame, 1750 RPM, 1 Speed, DC Permanent Magnet, 90V, TEFC Enclosure
