Century
1/6HP PH 34 P TENV 1750 90V
Mfr # DC104 | Wright’s # CEN DC104

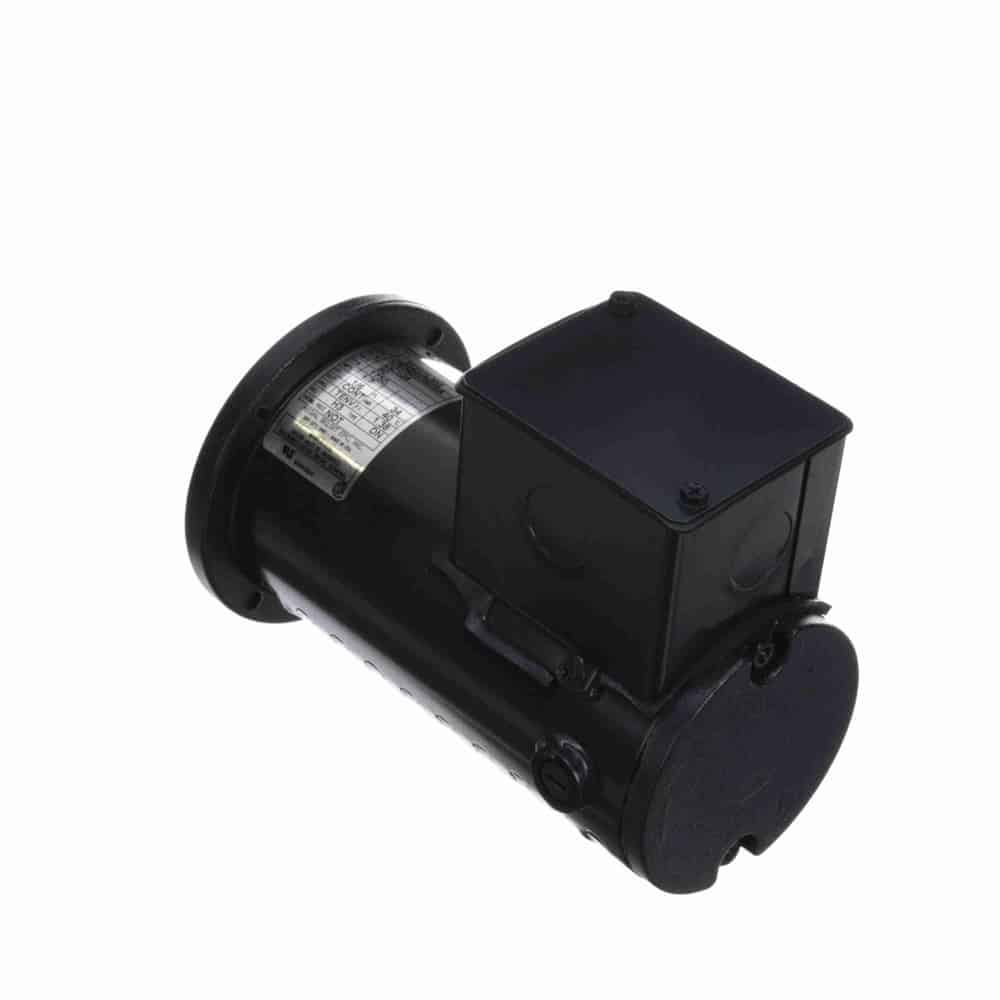

1/6HP Phase, 34 Frame, 1750 RPM, 1 Speed, DC Permanent Magnet, 90V, TENV Enclosure
Contact Us For Pricing
Product Information
Brand Century
Mfr # DC104
Wright's # CEN DC104
Country of Origin USA
Specifications
C Dim 8.31"
Electrical Type DC Permanent Magnet
Enclosure TENV
Frame 34
HP 0.17 HP
HP2 1/6 HP
Insulation Class H
kW 0.13kW
Material Rolled Steel
Max Ambient 40°C
Number of Speeds 1
Overload Protection No Protection
Rated Current 1.7
Rated Voltage 90
Rotation Reversible
RPM 1750
Service Factor 1
Shaft Diameter 0.5"
Speed 1750
Starting Method
Description
UL and CSA Listed, Meeting NEMA MG1 standards.
Brush holder design provides easy access for motor maintenance.
Permanent magnet design ensures higher motor efficiency.
Permanently lubricated sealed bearings extend the lifetime of the motor.
Compatible with PWM or SCR type controllers.
1/6HP Phase, 34 Frame, 1750 RPM, 1 Speed, DC Permanent Magnet, 90V, TENV Enclosure
