Century

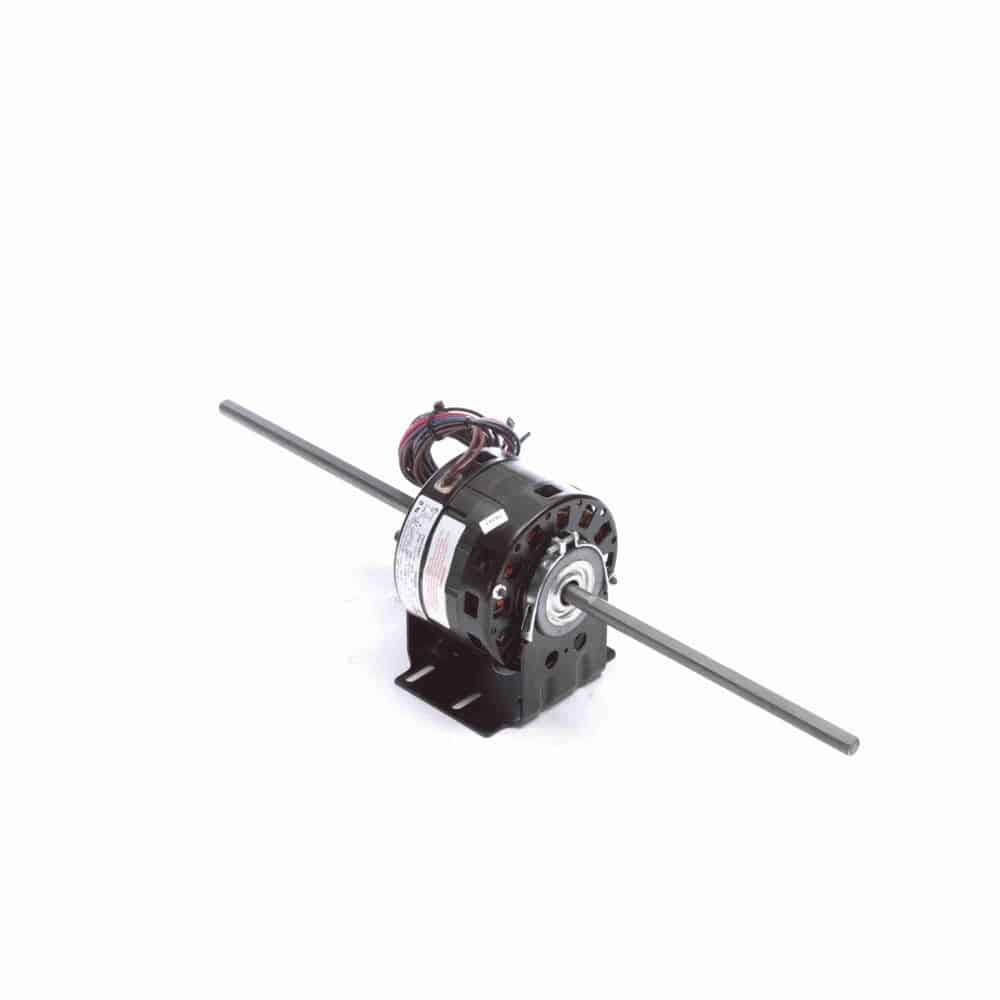

1/5HP PSC 42Y OAO 3spd 1500 CCWSE 230V 5uF
Mfr # DB4505 | Wright’s # CEN DB4505
1/5HP Fan Coil & Air Conditioner Motor, 1 Phase, 42Y Frame, 1500 RPM, 3 Speed, Permanent Split Capacitor, 230V, OAO Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
DB4505
Wright's #
CEN DB4505
Country of Origin
MEX
Specifications
C Dim
22"
Electrical Type
Permanent Split Capacitor
Enclosure
OAO
Frame
42Y
Frequency
60 Hz
HP
0.2 HP
HP2
1/5 HP
Insulation Class
A
kW
0.15kW
Max Ambient
40°C
Number of Poles
4
Number of Speeds
3
Overload Protection
Automatic
Phase
1
Rated Current
1.5
Rated Voltage
230
Rotation
Counterclockwise Lead End
RPM
1500
Service Factor
1
Shaft Diameter
0.5"
Speed
1500
Starting Method
Description
Fan Coil – Dual Wheel Blower Motor
5″ Diameter – 42 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Open Air Over
Class A Insulation, 40°C Ambient
Sleeve Bearing
1/2″ Diameter Double Shaft with Double FlatsЎ.5″ Leads with Quick Connect Terminals
Resilient Base
1/5HP Fan Coil & Air Conditioner Motor, 1 Phase, 42Y Frame, 1500 RPM, 3 Speed, Permanent Split Capacitor, 230V, OAO Enclosure
