Century

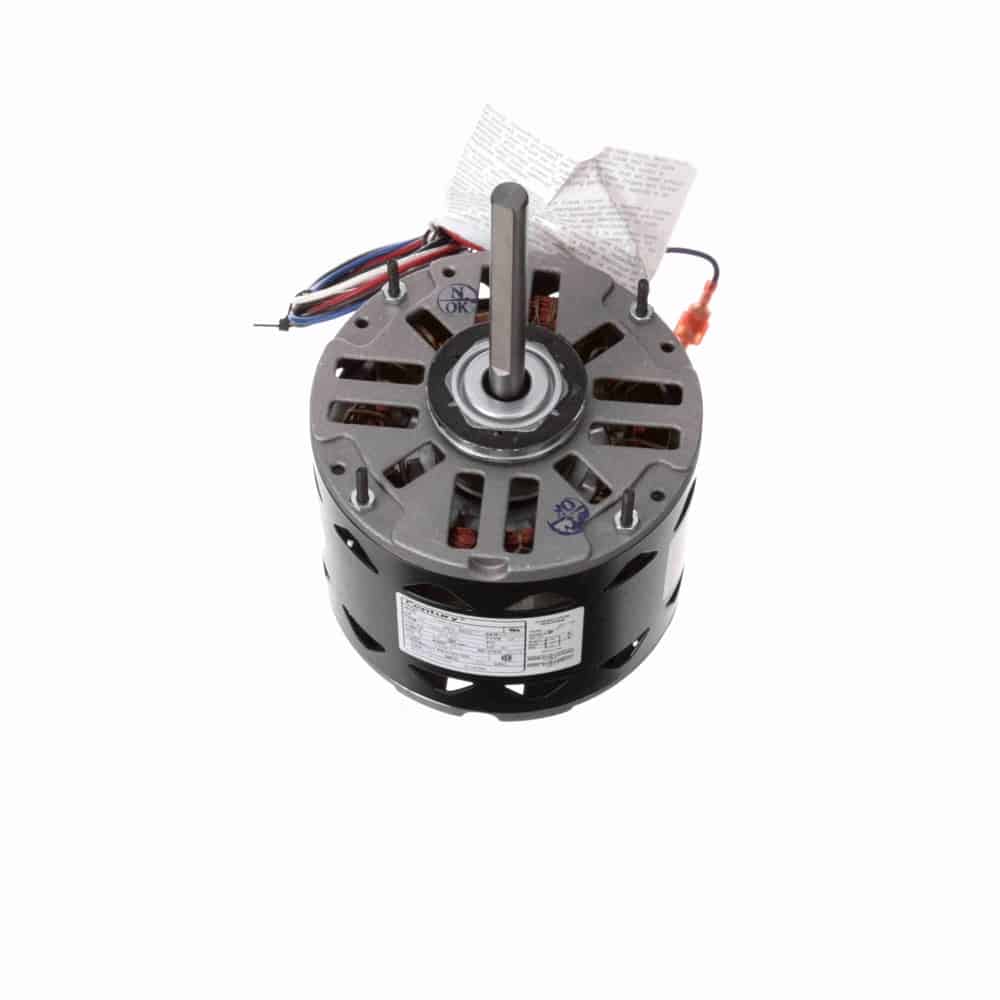

1/3HP PSC 5.6″ ODP 3spd 1075 208-230V 5uF BM
Mfr # D1036 | Wright’s # CEN D1036
1/3HP Fan & Blower Motor, 1 Phase, 48 Frame, 1075 RPM, 3 Speed, Permanent Split Capacitor, 208-230V, ODP Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
D1036
Wright's #
CEN D1036
Country of Origin
IND
Specifications
C Dim
9.36"
Electrical Type
Permanent Split Capacitor
Enclosure
ODP
Full Load Efficiency
58.6
Frame
48
Frequency
60 Hz
HP
0.33 HP
HP2
1/3 HP
Insulation Class
B
kW
0.25kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
6
Number of Speeds
3
Overload Protection
Automatic
Phase
1
Rated Current
2.7
Rated Voltage
208-230
Rotation
Reversible
RPM
1075
Service Factor
1
Shaft Diameter
0.5"
Speed
1075
Starting Method
Description
Fan Coils – Dual Wheel Blower Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Open Air Over
Class B Insulation, 40°C Ambient
Design Upgrade, Converting From Sleeve Bearing to Ball Bearing
1/2″ Diameter Shaft with FlatЂ” Leads
Extended Studs Shaft End, Resilient Ring Mounting, Belly Band Mounting (Belly Band Not Included)
1/3HP Fan & Blower Motor, 1 Phase, 48 Frame, 1075 RPM, 3 Speed, Permanent Split Capacitor, 208-230V, ODP Enclosure
