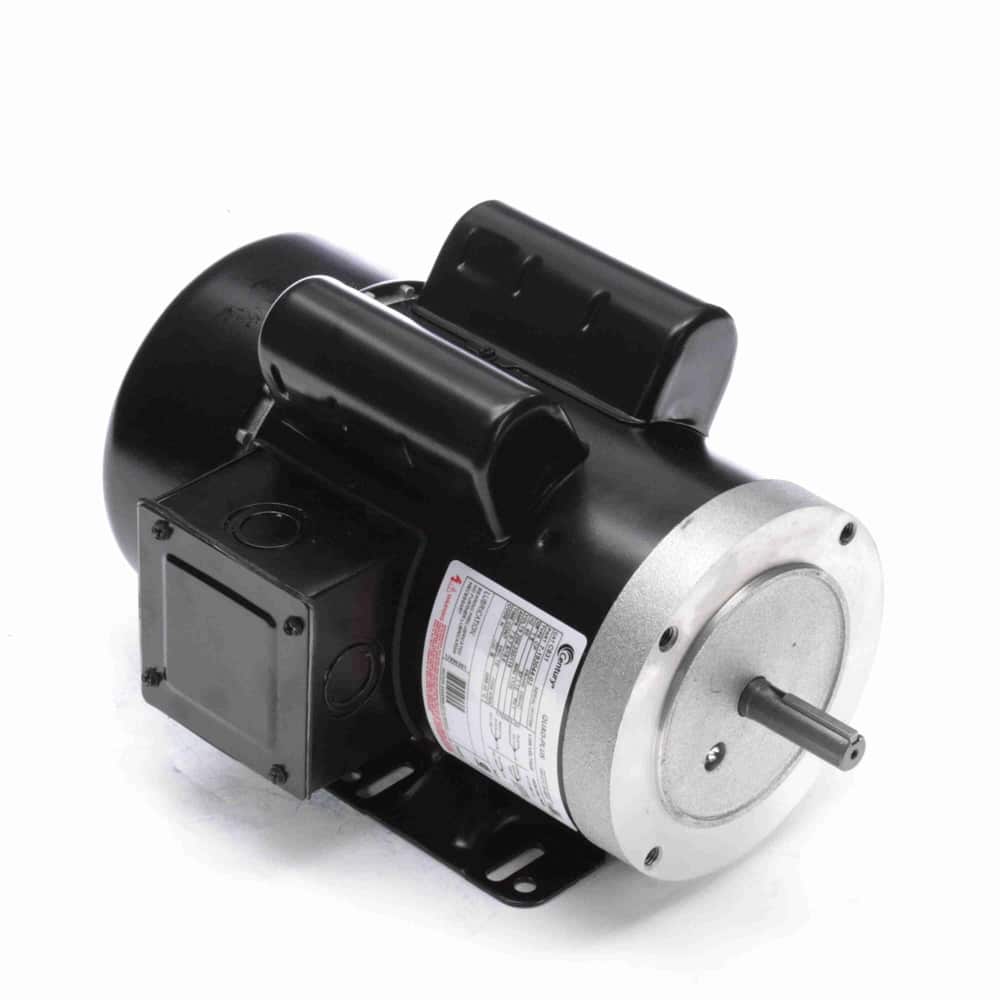

1.5HP 1PH 56HC 4P TEFC 1725 115/208-230V
Century

1.5HP 1PH 56HC 4P TEFC 1725 115/208-230V

Mfr # C831 | Wright’s # CEN C831

1.5HP 1-Phase General Purpose Motor, 1 Phase, 56HC Frame, 1725 RPM, 1 Speed, Capacitor Start, Capacitor Run, Single Or Dual Voltage, 115/208-230V, TEFC Enclosure

Contact Us For Pricing

Product Information

Brand Century
Mfr # C831
Wright's # CEN C831
Country of Origin MEX

Specifications

C Dim 13.71"
Electrical Type Capacitor Start, Capacitor Run, Single Or Dual Voltage
Enclosure TEFC
Frame 56HC
Frequency 60 Hz
HP 1.5 HP
HP2 1.5 HP
Insulation Class B
kW 1.1kW
Material Rolled Steel
Max Ambient 40°C
Number of Poles 4
Number of Speeds 1
Overload Protection No Protection
Phase 1
Rated Current 7.8-7.5/15.0
Rated Voltage 115/208-230
Rotation Reversible Counterclockwise
RPM 1725
Service Factor 1.15
Shaft Diameter 0.625"
Speed 1725
Starting Method

Description

UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
Continuous duty cycle design allows maximum operation at the rated power. specifications
Heavy-duty, rolled steel construction ensures motor durability.
Permanently lubricated sealed bearings extend the lifetime of the motor.
Capacitor start design optimizes motor torque and efficiency performance.

1.5HP 1-Phase General Purpose Motor, 1 Phase, 56HC Frame, 1725 RPM, 1 Speed, Capacitor Start, Capacitor Run, Single Or Dual Voltage, 115/208-230V, TEFC Enclosure

Documents

Data Sheet
