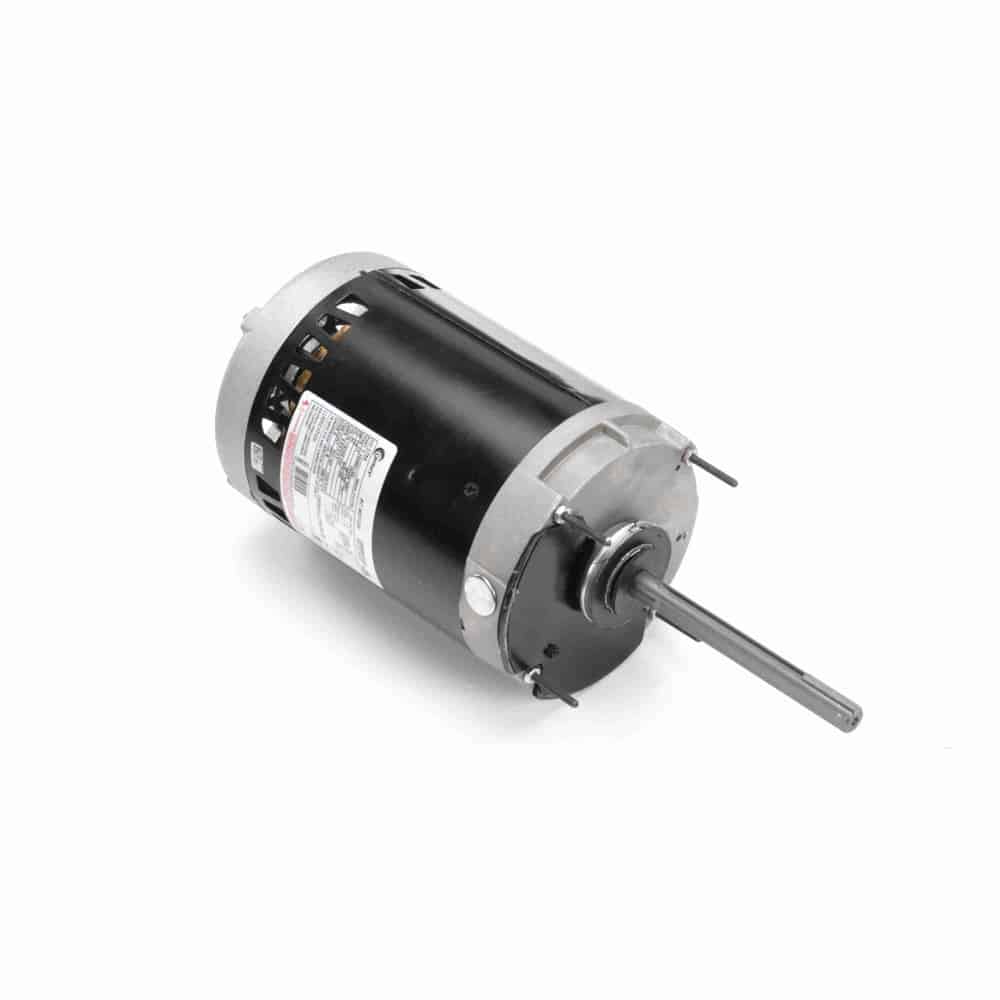

1/2HP 1PH 56Y OAO 850 115/208-230V CF
Century

1/2HP 1PH 56Y OAO 850 115/208-230V CF

Mfr # C784 | Wright’s # CEN C784

1/2HP Condenser Fan Motor, 1 Phase, 56Y Frame, 850 RPM, 1 Speed, Permanent Split Capacitor, Single Or Dual Voltage, 115/208-230V, OAO Enclosure

Contact Us For Pricing

Product Information

Brand Century
Mfr # C784
Wright's # CEN C784
Country of Origin MEX

Specifications

C Dim 16.88"
Electrical Type Permanent Split Capacitor, Single Or Dual Voltage
Enclosure OAO
Frame 56Y
Frequency 60 Hz
HP 0.5 HP
HP2 1/2 HP
Insulation Class B
kW 0.37kW
Material Rolled Steel
Max Ambient 60°C
Number of Poles 8
Number of Speeds 1
Overload Protection Thermally Protected
Phase 1
Rated Current 6.6/4.0-3.3
Rated Voltage 115/208-230
Rotation Reversible Clockwise
RPM 850
Service Factor 1
Shaft Diameter 0.625"
Speed 850
Starting Method

Description

Automatic reset thermal protector prevents overheating.
Patented MAXGuard® insulation system offers superior protection for use with a variable frequency drive.
Permanently lubricated, double-sealed bearings extend the lifetime of the motor.
Ambient temperature up to 70°C allows for consistent operation in a range of environments and applications.
Vertical/horizontal mounting for proper placement of the fan within airflow.

1/2HP Condenser Fan Motor, 1 Phase, 56Y Frame, 850 RPM, 1 Speed, Permanent Split Capacitor, Single Or Dual Voltage, 115/208-230V, OAO Enclosure

Documents

Data Sheet
