Century

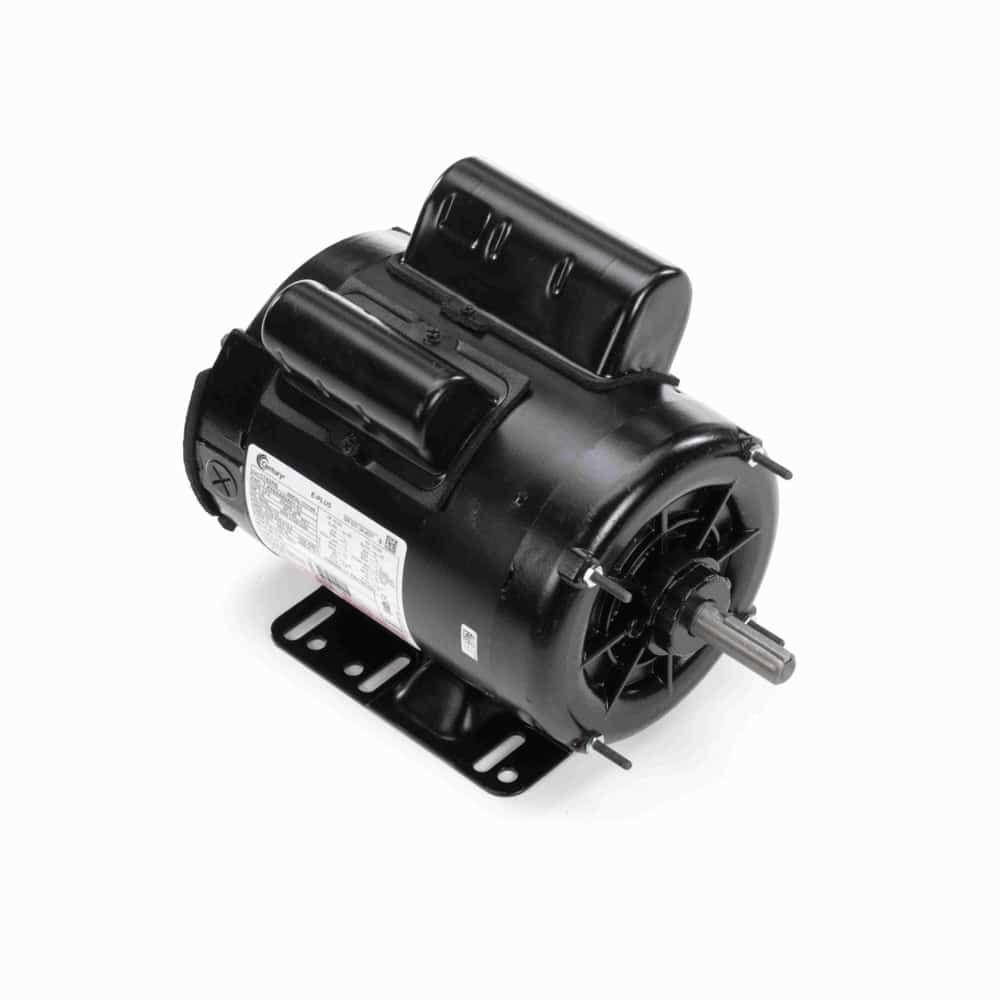

1HP 1PH 56 4P TENV 1725 115/230V AOL
Mfr # C782RB | Wright’s # CEN C782RB
1HP Belt Drive Fan Motor, 1 Phase, 56 Frame, 1725 RPM, 1 Speed, Capacitor Start, Capacitor Run, Low Starting Torque, Single Or Dual Voltage, 115/230V, TENV Enclosure
$545.95
Product Information
Brand
Century
Mfr #
C782RB
Wright's #
CEN C782RB
Country of Origin
MEX
Specifications
C Dim
12.19"
Electrical Type
Capacitor Start, Capacitor Run, Low Starting Torque, Single Or Dual Voltage
Enclosure
TENV
Frame
56
Frequency
60/50 Hz
HP
1 HP
HP2
1 HP
Insulation Class
B
kW
0.75kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
4
Number of Speeds
1
Overload Protection
Thermally Protected
Phase
1
Rated Current
4.3/8.6//5.2/10.4
Rated Voltage
115/230
Rotation
Reversible Clockwise
RPM
1725
Service Factor
1.4
Shaft Diameter
0.625"
Speed
1725/1425
Starting Method
Description
UL recognized component listing and CSA certification ensures the product is safe for use.
Double-shielded bearings extend the service life of the motor.
Automatic reset thermal protector (as noted) protects against overload.
Moderate starting torque helps reduce fan stresses.
1HP Belt Drive Fan Motor, 1 Phase, 56 Frame, 1725 RPM, 1 Speed, Capacitor Start, Capacitor Run, Low Starting Torque, Single Or Dual Voltage, 115/230V, TENV Enclosure
