Century
1/3HP PSC 48Y TE 1075 115/200-230V 6uF-inc
Mfr # C723V1A | Wright’s # CEN C723V1A

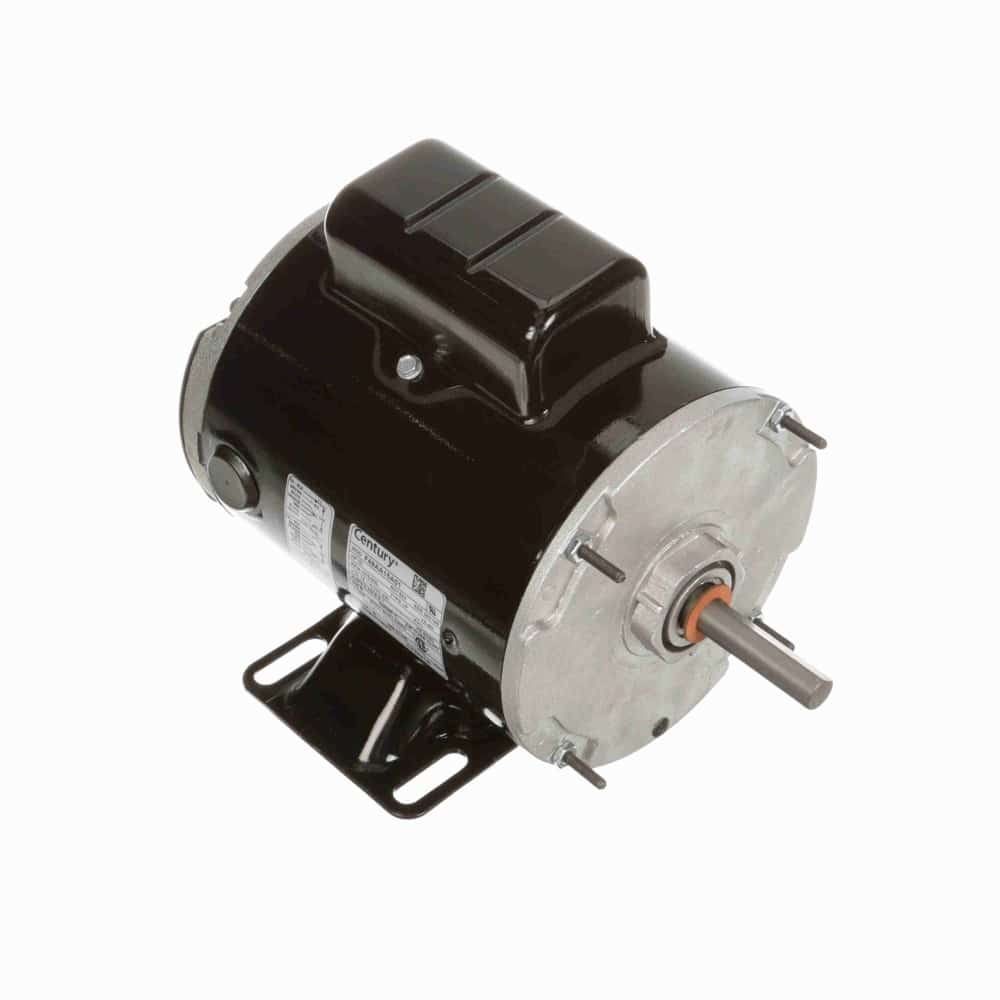

1/3HP Transformer Cooling Fan Motor, 1 Phase, 48Y Frame, 1075 RPM, 1 Speed, Permanent Split Capacitor, 115/200-230V, TEAO Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
C723V1A
Wright's #
CEN C723V1A
Specifications
C Dim
9.59"
Electrical Type
Permanent Split Capacitor
Enclosure
TEAO
Frame
48Y
Frequency
60 Hz
HP
0.33 HP
HP2
1/3 HP
Insulation Class
B
kW
0.25kW
Material
Rolled Steel
Max Ambient
65°C
Number of Poles
6
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
6.4/3.6-3.1
Rated Voltage
115/200-230
Rotation
Reversible
RPM
1075
Service Factor
1.5
Shaft Diameter
0.5"
Speed
1075/900
Starting Method
Description
Transformer Cooling Fan Blower Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 6 Mfd-440 Volts (Supplied with Motor)
Thermally Protected
Totally Enclosed Air Over
Class B Insulation, 40°C Ambient
Ball Bearing
1/2″ Diameter Shaft with Flat
Conduit Connection
Rigid Base
1/3HP Transformer Cooling Fan Motor, 1 Phase, 48Y Frame, 1075 RPM, 1 Speed, Permanent Split Capacitor, 115/200-230V, TEAO Enclosure
