Century
1/4HP PSC 48Y TE 2spd 1725 208-230V 5uF-inc
Mfr # C721A | Wright’s # CEN C721A

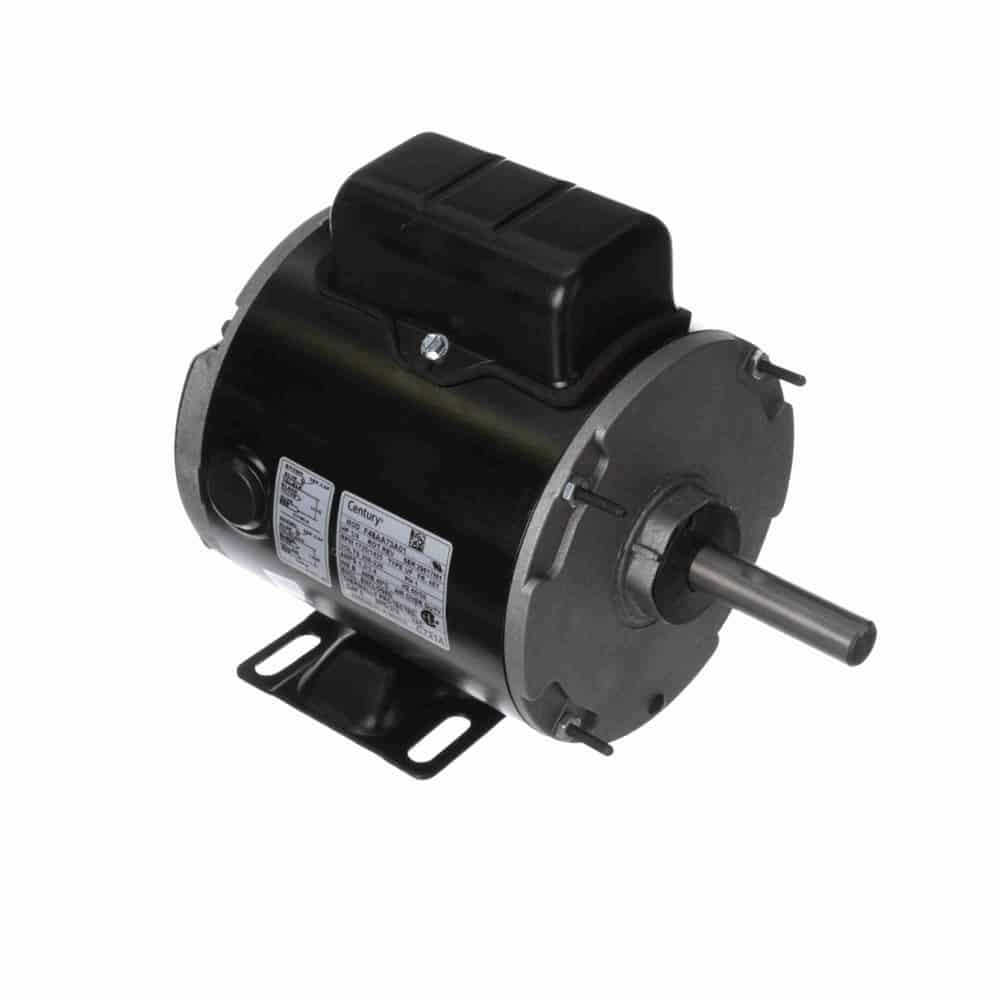

1/4HP Transformer Cooling Fan Motor, 1 Phase, 48Y Frame, 1725 RPM, 2 Speed, Permanent Split Capacitor, 208-230V, TEAO Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
C721A
Wright's #
CEN C721A
Specifications
C Dim
9.39"
Electrical Type
Permanent Split Capacitor
Enclosure
TEAO
Frame
48Y
Frequency
60 Hz
HP
0.25 HP
HP2
1/4 HP
Insulation Class
B
kW
0.19kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
4
Number of Speeds
2
Overload Protection
Automatic
Phase
1
Rated Current
1.2/1.4
Rated Voltage
208-230
Rotation
Reversible
RPM
1725
Service Factor
1
Shaft Diameter
0.625"
Speed
1725/1425
Starting Method
Description
Transformer Cooling Fan Blower Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Supplied with Motor)
Thermally Protected
Totally Enclosed Air Over
Class B Insulation, 40°C Ambient
Ball Bearing
5/8″ Diameter Keyed Shaft
Conduit Connection
Rigid Base
1/4HP Transformer Cooling Fan Motor, 1 Phase, 48Y Frame, 1725 RPM, 2 Speed, Permanent Split Capacitor, 208-230V, TEAO Enclosure
