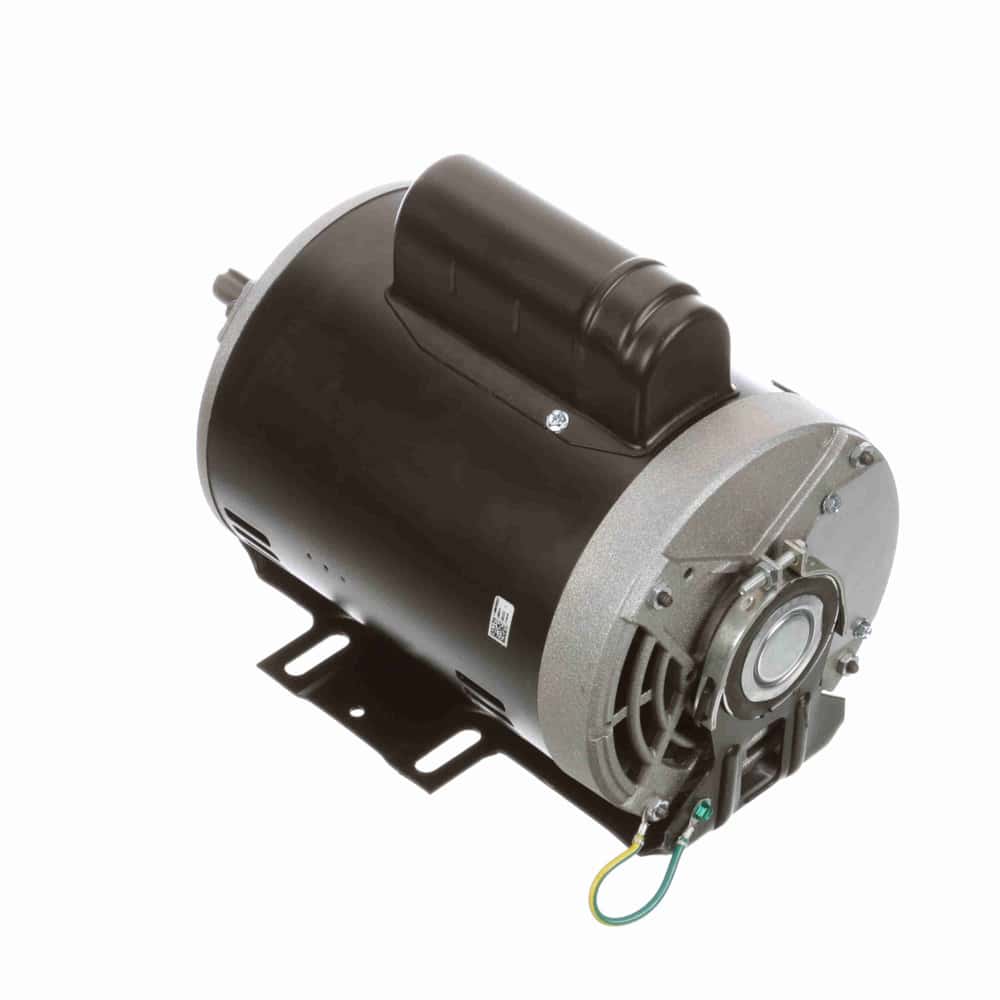

3/4HP 1PH 56 ODP 1725 115/208-230V BM
Century

3/4HP 1PH 56 ODP 1725 115/208-230V BM

Mfr # C666V1 | Wright’s # CEN C666V1

3/4HP Fan & Blower Motor, 1 Phase, 56 Frame, 1725 RPM, 1 Speed, Capacitor Start Induction Run, 115/208-230V, ODP Enclosure

Out of stock

Contact Us For Pricing

Product Information

Brand Century
Mfr # C666V1
Wright's # CEN C666V1
Country of Origin MEX

Specifications

C Dim 12.16"
Electrical Type Capacitor Start Induction Run
Enclosure ODP
Frame 56
Frequency 60 Hz
HP 0.75 HP
HP2 3/4 HP
Insulation Class B
kW 0.56kW
Material Rolled Steel
Max Ambient 40°C
Number of Poles 4
Number of Speeds 1
Overload Protection No Protection
Phase 1
Rated Current 11.0/5.3-5.5
Rated Voltage 115/208-230
Rotation Selective Counterclockwise
RPM 1725
Service Factor 1.25
Shaft Diameter 0.625"
Speed 1725
Starting Method

Description

Automatic reset thermal protector prevents overheating.
Patented MAXGuard® insulation system offers superior protection for use with a variable frequency drive.
Permanently lubricated, double-sealed bearings extend the lifetime of the motor.
Ambient temperature up to 70°C allows for consistent operation in a range of environments and applications.
Vertical/horizontal mounting for proper placement of the fan within airflow.

Operational at 115/208-230 V @60HZ. Nameplate image may vary from actual product.

3/4HP Fan & Blower Motor, 1 Phase, 56 Frame, 1725 RPM, 1 Speed, Capacitor Start Induction Run, 115/208-230V, ODP Enclosure

Documents

Data Sheet
