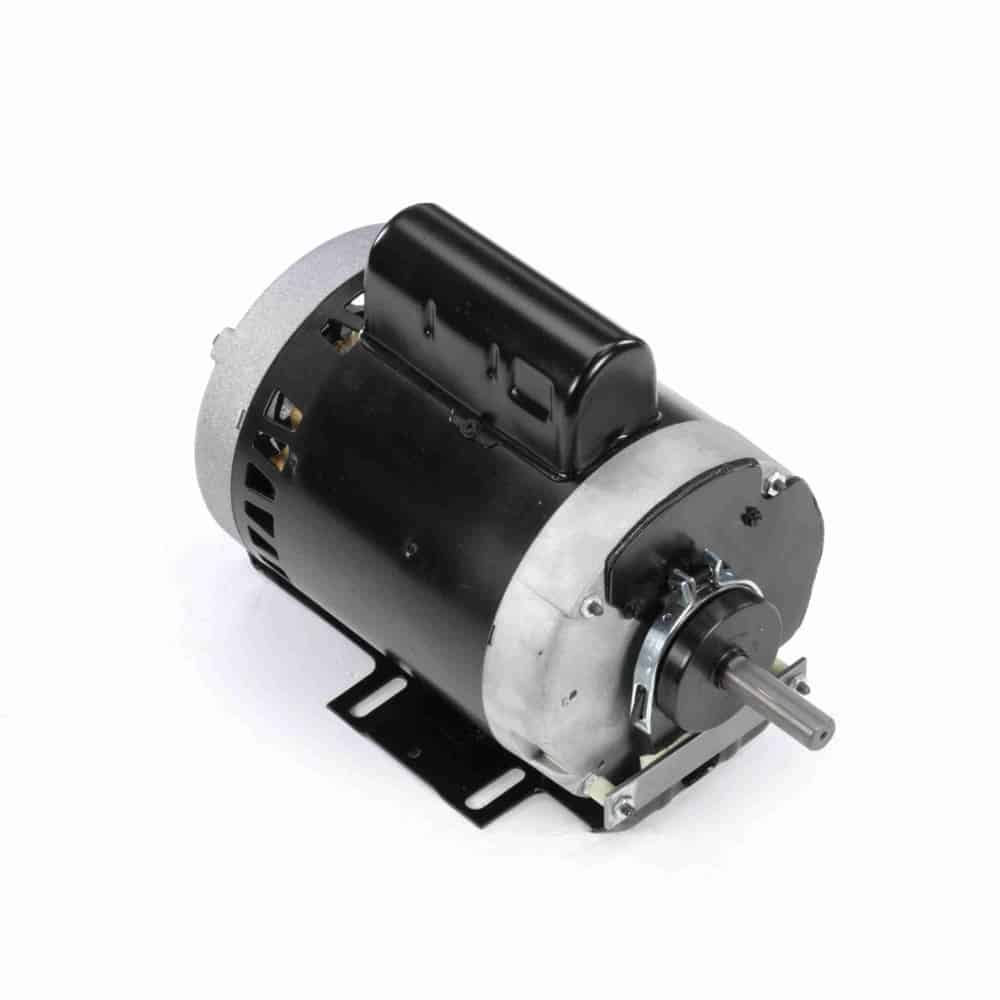

3/4HP 1PH 56Y ODP 1075 208-230/460V CF
Century

3/4HP 1PH 56Y ODP 1075 208-230/460V CF

Mfr # C662 | Wright’s # CEN C662

3/4HP Condenser Fan Motor, 1 Phase, 56Y Frame, 1075 RPM, 1 Speed, Permanent Split Capacitor, Single Or Dual Voltage, 208-230/460V, ODP Enclosure

1 in stock

Sign in to access special pricing and availability.

Contact Us For Pricing

Product Information

Brand Century
Mfr # C662
Wright's # CEN C662
Country of Origin MEX

Specifications

C Dim 12.8"
Electrical Type Permanent Split Capacitor, Single Or Dual Voltage
Enclosure ODP
Frame 56Y
Frequency 60 Hz
HP 0.75 HP
HP2 3/4 HP
Insulation Class B
kW 0.56kW
Material Rolled Steel
Max Ambient 60°C
Number of Poles 6
Number of Speeds 1
Overload Protection Thermally Protected
Phase 1
Rated Current 2.1/4.3-4.2
Rated Voltage 208-230/460
Rotation Reversible Counterclockwise
RPM 1075
Service Factor 1
Shaft Diameter 0.625"
Speed 1075
Starting Method

Description

Automatic reset thermal protector prevents overheating.
Patented MAXGuard® insulation system offers superior protection for use with a variable frequency drive.
Permanently lubricated, double-sealed bearings extend the lifetime of the motor.
Ambient temperature up to 70°C allows for consistent operation in a range of environments and applications.
Vertical/horizontal mounting for proper placement of the fan within airflow.

3/4HP Condenser Fan Motor, 1 Phase, 56Y Frame, 1075 RPM, 1 Speed, Permanent Split Capacitor, Single Or Dual Voltage, 208-230/460V, ODP Enclosure

Documents

Data Sheet
