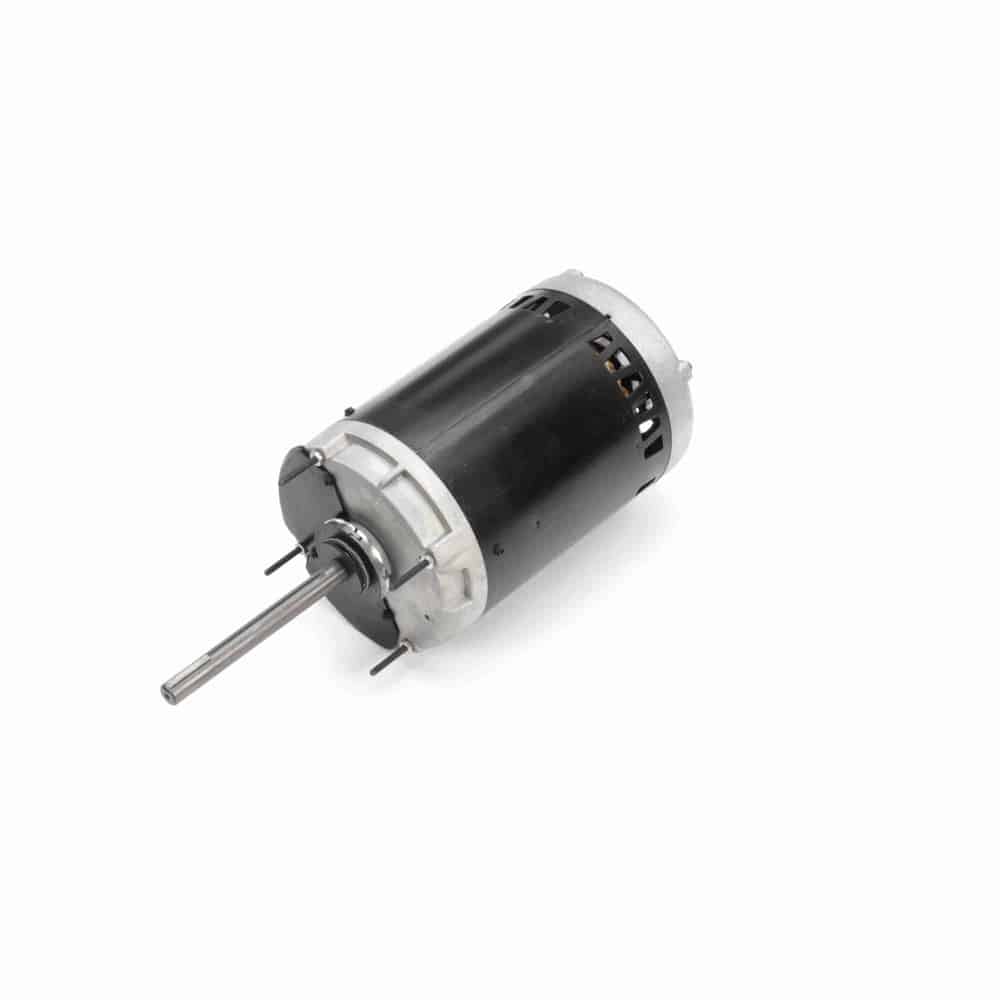

3/4HP 1PH 56Y OAO 825 200-230/460V CF
Century

3/4HP 1PH 56Y OAO 825 200-230/460V CF

Mfr # C660V1 | Wright’s # CEN C660V1

3/4HP Condenser Fan Motor, 1 Phase, 56Y Frame, 825 RPM, 1 Speed, Permanent Split Capacitor, Single Or Dual Voltage, 200-230/460V, OAO Enclosure

1 in stock

Sign in to access special pricing and availability.

Contact Us For Pricing

Product Information

Brand Century
Mfr # C660V1
Wright's # CEN C660V1
Country of Origin MEX

Specifications

C Dim 17.31"
Electrical Type Permanent Split Capacitor, Single Or Dual Voltage
Enclosure OAO
Frame 56Y
Frequency 60 Hz
HP 0.75 HP
HP2 3/4 HP
Insulation Class B
kW 0.56kW
Material Rolled Steel
Max Ambient 60°C
Number of Poles 8
Number of Speeds 1
Overload Protection Thermally Protected
Phase 1
Rated Current 2.6/5.3-5.2
Rated Voltage 200-230/460
Rotation Reversible Clockwise
RPM 825
Service Factor 1
Shaft Diameter 0.625"
Speed 825
Starting Method

Description

Automatic reset thermal protector prevents overheating.
Patented MAXGuard® insulation system offers superior protection for use with a variable frequency drive.
Permanently lubricated, double-sealed bearings extend the lifetime of the motor.
Ambient temperature up to 70°C allows for consistent operation in a range of environments and applications.
Vertical/horizontal mounting for proper placement of the fan within airflow.

3/4HP Condenser Fan Motor, 1 Phase, 56Y Frame, 825 RPM, 1 Speed, Permanent Split Capacitor, Single Or Dual Voltage, 200-230/460V, OAO Enclosure

Documents

Data Sheet
