Century
3/4HP 1PH 56 4P ODP 1725 115/208-230V AOL
Mfr # C658ES | Wright’s # CEN C658ES

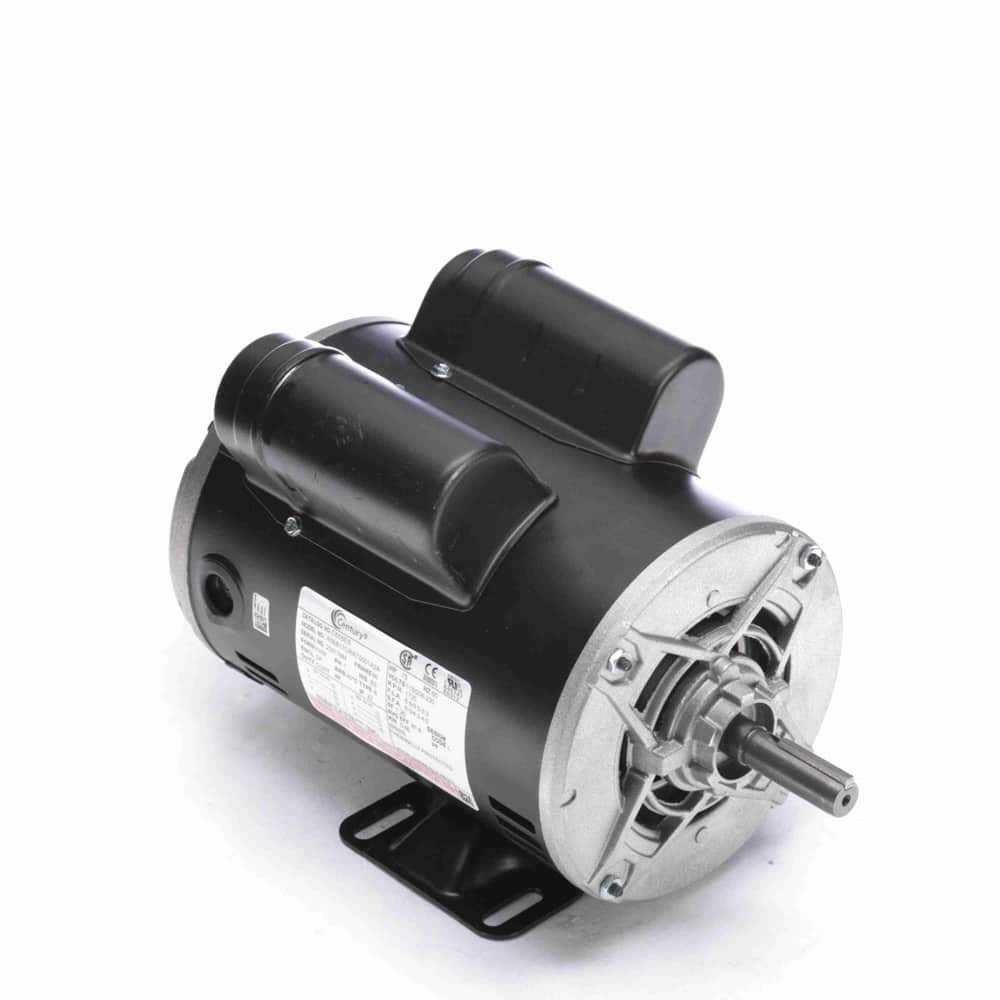

3/4HP 1-Phase General Purpose Motor, 1 Phase, 56 Frame, 1725 RPM, 1 Speed, Capacitor Start Capacitor Run, 115/208-230V, ODP Enclosure
$513.18
Product Information
Brand
Century
Mfr #
C658ES
Wright's #
CEN C658ES
Country of Origin
MEX
Specifications
C Dim
12.49"
Electrical Type
Capacitor Start Capacitor Run
Enclosure
ODP
Full Load Efficiency
81.8
Frame
56
Frequency
60 Hz
HP
0.75 HP
HP2
3/4 HP
Insulation Class
B
kW
0.56kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
4
Number of Speeds
1
Overload Protection
Thermally Protected
Phase
1
Rated Current
6.6/3.5-3.3
Rated Voltage
115/208-230
Rotation
Selective Counterclockwise
RPM
1725
Service Factor
1.25
Shaft Diameter
0.625"
Speed
1725
Starting Method
Description
UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
Premium efficiency promotes improved reliability.
Heavy-duty, rolled steel construction ensures motor durability.
Permanently lubricated, double-sealed bearings extend the lifetime of the motor.
3/4HP 1-Phase General Purpose Motor, 1 Phase, 56 Frame, 1725 RPM, 1 Speed, Capacitor Start Capacitor Run, 115/208-230V, ODP Enclosure
