Century

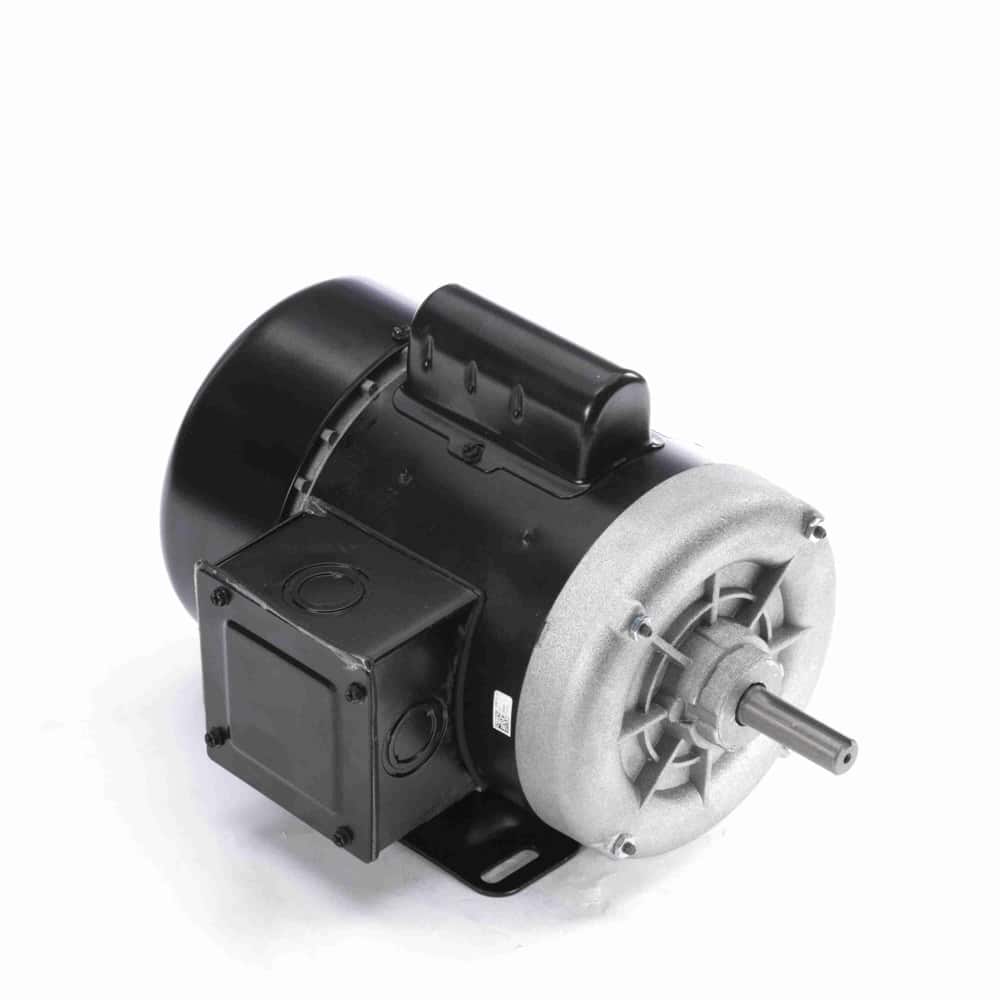

1/2HP 1PH 56 4P TEFC 1725 115/208-230V AOL
Mfr # C521 | Wright’s # CEN C521
1/2HP 1-Phase General Purpose Motor, 1 Phase, 56 Frame, 1725 RPM, 1 Speed, Capacitor Start, Induction Run, Single Or Dual Voltage, 115/208-230V, TEFC Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
C521
Wright's #
CEN C521
Country of Origin
MEX
Specifications
C Dim
12.24"
Electrical Type
Capacitor Start, Induction Run, Single Or Dual Voltage
Enclosure
TEFC
Frame
56
Frequency
60 Hz
HP
0.5 HP
HP2
1/2 HP
Insulation Class
A
kW
0.37kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
4
Number of Speeds
1
Overload Protection
Thermally Protected
Phase
1
Rated Current
7.2/3.5-3.6
Rated Voltage
115/208-230
Rotation
Reversible Counterclockwise
RPM
1725
Service Factor
1.15
Shaft Diameter
0.625"
Speed
1725
Starting Method
Description
Double-shielded bearings extend the service life of the motor.
EXXON® Polyrex® EM Grease supports extreme temperatures between -20°F(-29 ˚ C) and +350°F(+177˚C).
Shaft flingers protect bearings from damage caused by dirt and rain.
Condensation drains allow the motor to expel and drain built-up moisture.
1/2HP 1-Phase General Purpose Motor, 1 Phase, 56 Frame, 1725 RPM, 1 Speed, Capacitor Start, Induction Run, Single Or Dual Voltage, 115/208-230V, TEFC Enclosure
